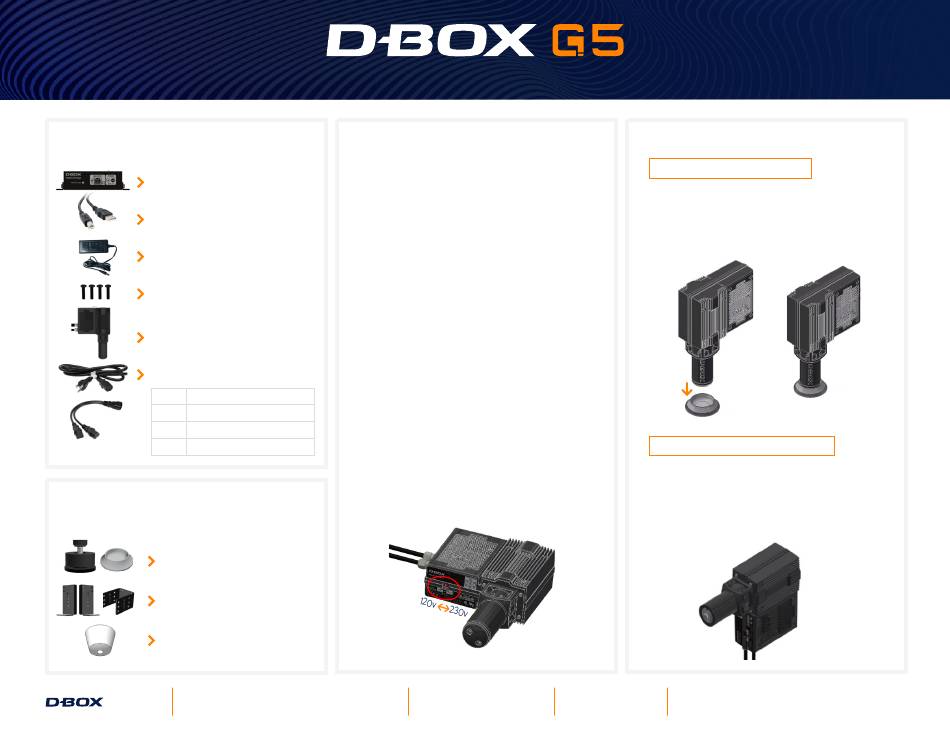

D-Box G5 Quick Start Manual

PACKAGE CONTENT

1x Haptic Bridge
1x USB A to USB B Cable
1x Power Supply
Mounting screws

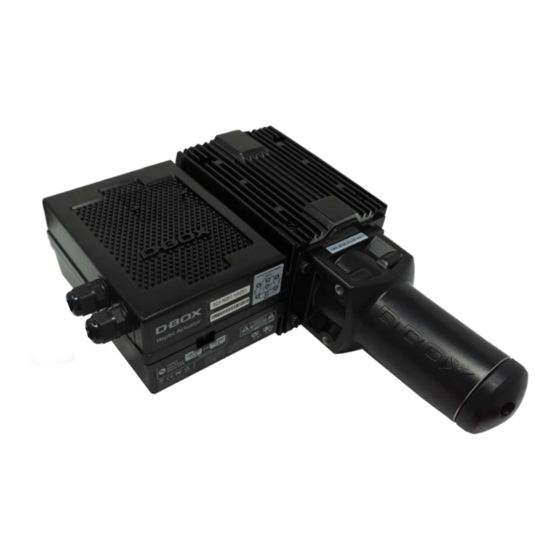

1 to 4 Haptic Actuator(s)
Power Cables & ''Y'' Splitters:
1250i 2x Power Cables
2250i 2x Power Cables + 1x ''Y'' Splitters
3250i 3x Power Cables + 1x ''Y'' Splitters
4250i 3x Power Cables + 2x ''Y'' Splitters
OPTIONAL COMPONENTS
(SELECTED AT ORDER)
Endings
(captive or non captive)
Brackets
(''L'' or ''U'' shape)
Pivot Delrin
Address: 2172 rue de la Province, Longueuil, QC Canada J4G 1R7
SUPPORT
*
Email: support@d-box.com
Quick Start Guide
|
1 INSTRUCTION MANUAL
Download the instruction manual
for reference if needed.
|
2

UNBOXING

1 Unpack the product from the box.
2 Visually inspect the product for damage.
3 If any part appears to be broken, contact
(4 per Actuator)
D-BOX Support Team.*
|
3

INVENTORY

Ensure that you have all the components
to assemble your system. Refer to the
"Package Content" section.
|
4

VOLTAGE SELECTION

Set all haptic actuators to meet your
region power voltage by using the switch
selector located underneath the casing.
Phone: US: 1 888 442-3269 ext.931
Other regions: 1 450 442-3003 ext.931
|
5

HAPTIC ACTUATOR ENDINGS

NON-CAPTIVE ENDINGS
G5 haptic actuators come native with
non-captive endings. Once the actuators
are installed on your platform, simply drop
the actuators into the provided metal cups:
CAPTIVE ENDINGS
Please refer to the instruction manual for
detailed instructions. Never operate the
haptic actuator without the ending
installed. This may lead to irreparable
damages to the actuator:
X
Monday to Friday: Saturday & Sunday:
8:00AM to 8:30PM (GMT-5) 8:30 to 5:00PM (GMT-5)
( OPTIONAL )
|
231-914-0004-EN5 May 2022
