D-Box HaptiSync Hub Quick Start Manual

Quick Start Guide
Package Contents

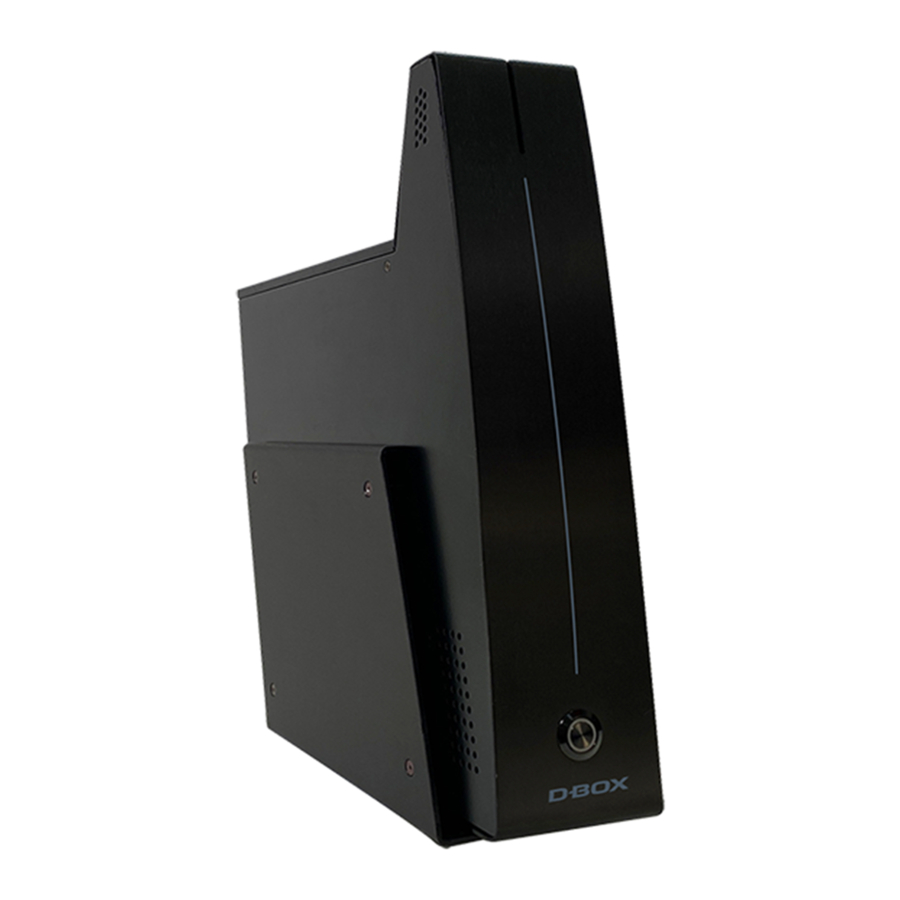

• 1x HaptiSync Hub
• 1x Power Cord
You also need:
(included in seat package)
• 1x D-BOX Haptic Seat
(at least)
• 1x Power Cord
• 1x IEC Plug-Lock Insert
• 3 or 4x Stabilization Cups
(varies per model)
• 1x CAT.5E Shielded Cable
Complete User Manual is accessible at:
https://www.d-box.com/en/downloads/
1 Position your HaptiSync Hub
• Install your HaptiSync Hub on a flat surface
Horizontal
• Center your HaptiSync Hub in the audio envi-
ronment and aim the integrated audio sensor
(front side) towards your front speakers.:
2 Prepare your Haptic Seat
• Install the stabilization cups under your
Haptic Seat:
• Make sure nothing will be pinched or
damaged while the Haptic Seat is moving.
• Connect the HaptiSync Hub to the Haptic Seat
using the CAT.5E shielded cable provided with
the system. See other side of this page or the
user manual for a specific wiring diagrams.
• Plug your HaptiSync Hub and your Haptic Seat
into an electrical outlet.
• Press the power button on your HaptiSync Hub
to turn it on.
3 Create your D-BOX Connect Account
• Go to the D-BOX Connect website:
https://connect.d-box.com
• Create an account using a valid email address;
• Edit your payment information. ( Please note
that a valid credit card is required to complete
your registration ).
• Purchase your D-BOX connect subscription.
Complete HaptiSync configuration
4
from the D-BOX Connect website
• Install the D-BOX HaptiSync App
• Connect your HaptiSync Hub to your network
• Activate your HaptiSync Hub
• Test your HaptiSync System
• Enjoy your favorite immersive content!
242-914-0028-EN1
|
November 2020
