Instruction Manual
D104707X012
Fisher
6060 WhisperTube Modal Attenuator
™
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction
Scope of Manual
This instruction manual provides installation,
maintenance, and parts ordering information for the
NPS 2 through 12 Fisher WhisperTube modal
attenuator.
Description
The WhisperTube is a passive reactive silencer
designed for installation downstream of the control
valve or other equipment contributing to system
noise. Requiring negligible pressure drop across the
device, the WhisperTube achieves system noise
reduction across a wide range of fluid flow rates,
pressures and temperatures.
Do not install, operate, or maintain a 6060 WhisperTube without being fully trained and qualified in
valve, actuator, and accessory installation, operation, and maintenance. To avoid personal injury or
property damage, it is important to carefully read, understand, and follow all the contents of this
manual, including all safety cautions and warnings. If you have any questions about these instructions,
contact your
www.Fisher.com
. . . . . . . . . . . . . . . . . . . . . . . . .
Emerson sales office

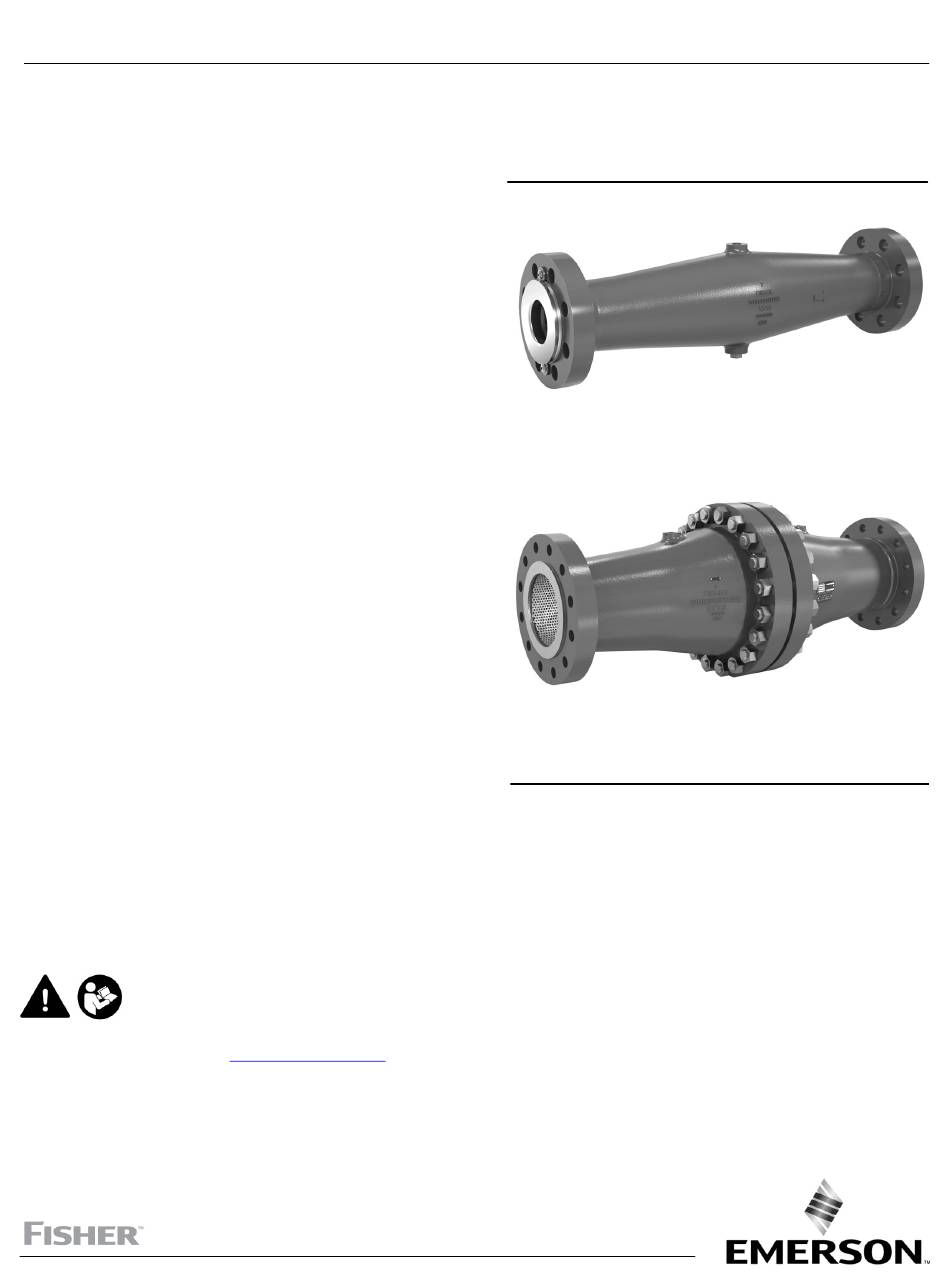

Figure 1. Fisher 6060 WhisperTube
1
1
1
3
3
4
5
5
5
7
7
X1815
X1820
before proceeding.
Fisher NPS2 CL600 WHISPERTUBE
Fisher NPS8 CL600 WHISPERTUBE
WhisperTube
August 2021
Advertisement
Table of Contents
Related Manuals for Emerson Fisher 6060
Summary of Contents for Emerson Fisher 6060
-
Page 1: Table Of Contents
™ Contents Figure 1. Fisher 6060 WhisperTube Introduction ....... . . - Page 2 Instruction Manual WhisperTube August 2021 D104707X012 Table 1. Specifications Valve Sizes and End Connection Style Temperature Capability J NPS 2, J 3, J 4, J 6, J 8, and J 12 with CL150, -46 to 371°C (-50 to 700°F) CL300, or CL600 raised‐face flanges compatible with ASME B16.5 Weights and Threaded Lifting Provision Size See table 3...
-
Page 3: Specifications
Specifications for the WhisperTube Model Attenuator are listed in tables 1, 2, and 3. Educational Services For information on available courses for Fisher WhisperTube, as well as a variety of other products, contact: Emerson Automation Solutions Educational Services - Registration Phone: 1-641-754-3771 or 1-800-338-8158 E-mail: education@emerson.com... -
Page 4: Installation
Instruction Manual WhisperTube August 2021 D104707X012 Installation WARNING Always wear protective gloves, clothing, and eyewear when performing any installation operations to avoid personal injury. To avoid personal injury or property damage resulting from the sudden release of pressure, do not install the WhisperTube assembly where service conditions could exceed the limits given on the 6060 nameplate. -
Page 5: Maintenance
Instruction Manual WhisperTube D104707X012 August 2021 Maintenance WARNING Avoid personal injury or damage to property from sudden release of pressure or uncontrolled process fluid. Before starting disassembly: D Always wear protective gloves, clothing, and eyewear when performing any maintenance operations to avoid personal injury. - Page 6 Instruction Manual WhisperTube August 2021 D104707X012 Follow steps 14-20 for the two-piece body construction (NPS 8-12) 14. Install the wave spring (key 4) in the groove at the flange end of the inlet body half. 15. Assembly is easiest if the parts are oriented vertically. Place the inlet body half flange end down on a clean soft surface.
-
Page 7: Parts Ordering
WARNING Use only genuine Fisher replacement parts. Components that are not supplied by Emerson should not, under any circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the performance of the valve, and could cause personal injury and property damage. - Page 8 Instruction Manual WhisperTube August 2021 D104707X012 Figure 2. Fisher WhisperTube Cross Sectional View, NPS 2 through 6 KEY NUMBERS NOT SHOWN ARE 5, 6, AND 7 GH13406 Figure 3. Fisher WhisperTube Exploded View, NPS 2 through 6 KEY NUMBERS NOT SHOWN ARE 5, 6, AND 7 GG75242...
- Page 9 Instruction Manual WhisperTube D104707X012 August 2021 Figure 4. Fisher WhisperTube Cross Sectional View, NPS 8 through 12 APPLY LUB KEY NUMBERS NOT SHOWN ARE 5, 6, 7, AND 17 GH12856 Figure 5. Fisher WhisperTube Exploded View, NPS 8 through 12 APPLY LUB KEY NUMBERS NOT SHOWN ARE 5, 6, 7, AND 17 GG75270...
- Page 10 Instruction Manual WhisperTube August 2021 D104707X012...
- Page 11 Instruction Manual WhisperTube D104707X012 August 2021...
- Page 12 Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user. Fisher is a mark owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson Automation Solutions, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co.
