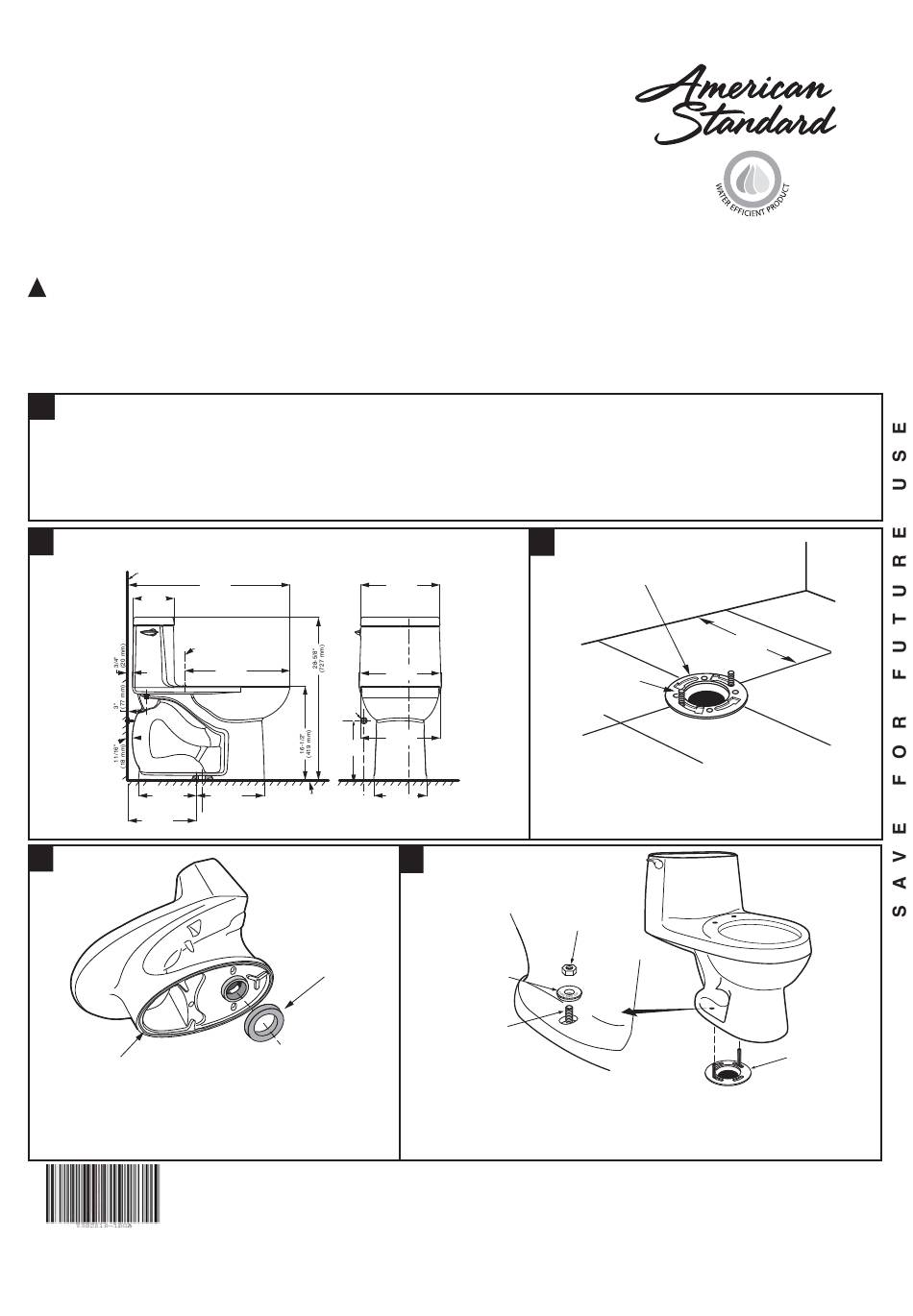

INSTALLATION INSTRUCTIONS
®
LOFT
1.28 GPF ONE-PIECE TOILET
Model 2535 – Compact Elongated Right Height™ with Seat
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed properly,
please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your
installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife
Regular Screwdriver
Hacksaw
Wax Ring/Gasket
1
REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
2
ROUGHING-IN DIMENSIONS:
NOTE: Distance from wall to closet flange centerline must be as listed below:
FINISHED WALL
7-3/16"
(183 mm)
C/L OF SEAT POST HOLES
140mm (5-1/2" CENTERS)
10-3/16"
(259 mm)
12"
(305 mm)
4
SEALANT
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent damage), and
install wax ring evenly around waste flange (horn), with
tapered end of ring facing toilet. Apply a thin bead of
sealant around toilet base.
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A S A m e r i c a , I n c .
© A S A m e r i c a , I n c . 2 0 1 3
Adjustable Wrench
Flexible Supply Tube
28-7/16"
(723 mm)
18-1/2"
(470 mm)
SUPPLY
AS
REQ'D
*10"
(254mm)
FINISHED
11-15/16"
FLOOR
(303 mm)
WAX RING
3
14"
(355 mm)
14-7/16"
(366 mm)
14"
(356 mm)
INSTALL CLOSET BOLTS
9-5/16"
Install closet bolts in flange channel, turn 90 ° , and slide
(236 mm)
into place 6" (152 mm) apart and parallel to wall.
5
WASHER
BOLT
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on closet flange so bolts project
through mounting holes.
b. Loosely install retainer washers and nuts. Side of washers marked "THIS
SIDE UP" must face up!
Sealant
Tape Measure
Closet Bolts
Carpenters Level
CLOSET FLANGE
CLOSET BOLTS
NUT
A
FLANGE
7 3 0 2 010 -10 0 Rev. A
