Instruction on Installation of

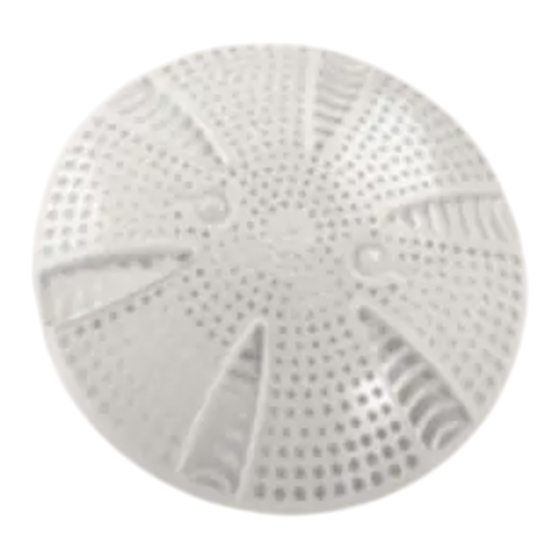

EM2817V Series Main Drain
Models: EM2817V(A1) EM2817V(A2)
Notices on Installing Glass Fiber Pool
All EM2817V Series suction machines have been tested and are compliance with the standard
AS/NZS 1926.3.2010.
Emaux Company suggests that all installation personnel are familiar with the standard AS/NZS
1926.3.2010 before the installation.
The installation personnel has the responsibility to ensure that the maximum flow rate doesn't
exceed the standard
All EM2817V Series suction machines should be fixed on the pool wall permanently, so as to
prevent the displacement in the absence of tools.
Provide all fixing screws needed in the installation of EM2817V Series suction machines.
Any revising to the device as well as its installation will cause the invalidity of conformity
certification and warranty; in addition
Cover of ABS
accessories
Product Description
Qty
it will affect the safety of this device
Aperture cap
Fixing screws
1.5 / 2 inch
PVC PIPE
Aperture cap Fixing screws ABS accessories Waterproof rubber mat
2
2
Connections of
ABS accessories
Waterproof rubber mat
Pool wall
Nut of ABS accessories
3
1
EMDE18080946
