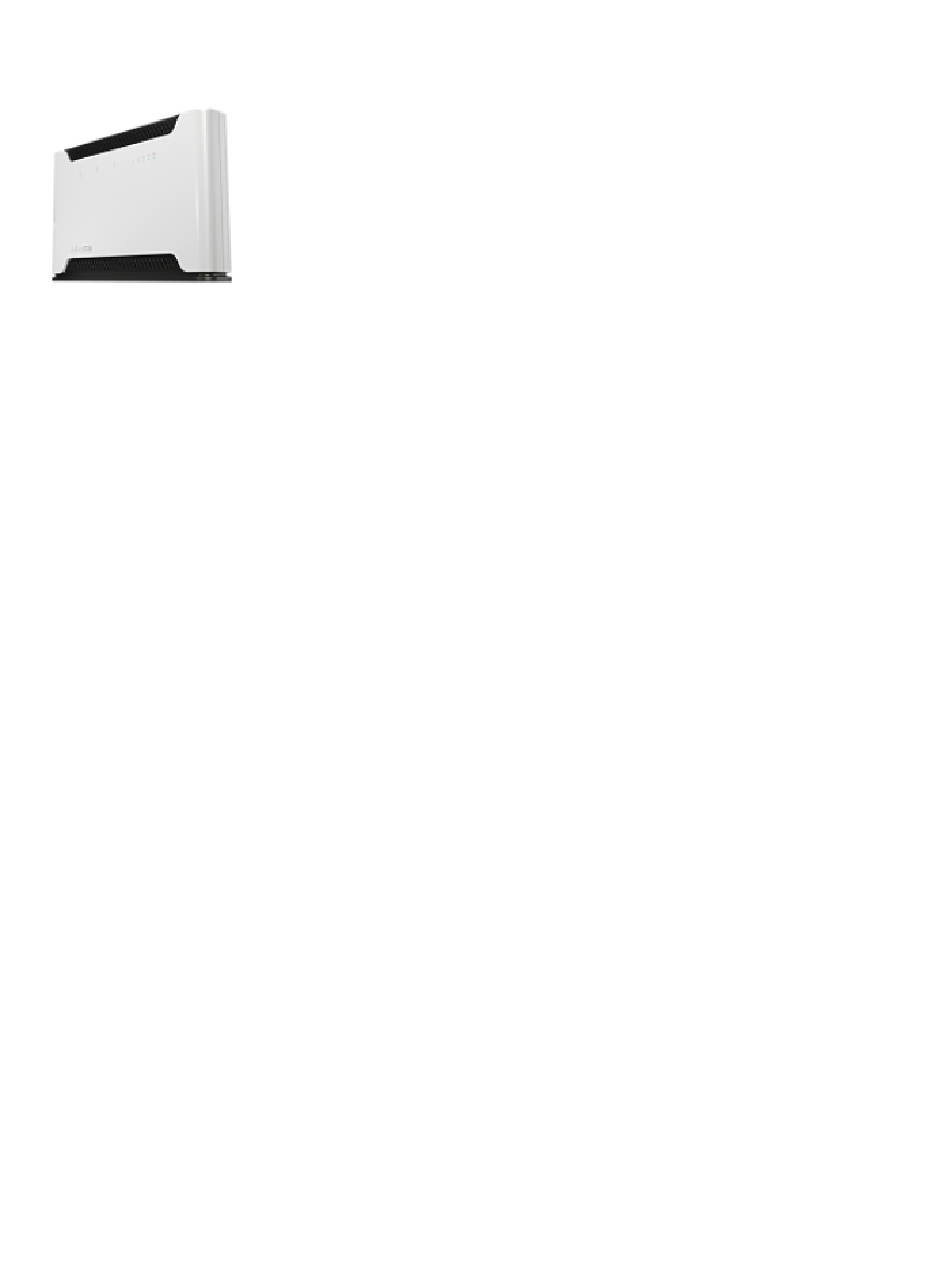

Chateau LTE6-US
Chateau
LTE6-US, D53G-5HacD2HnD-TC&EG06-A
The Chateau is a home router to be used with a cellular network provider sim card.
Safety Warnings
Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.
Use only the power supply and accessories approved by the manufacturer, which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.
Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an
uncontrolled environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the
general public.
Quickstart
Please follow these quick steps to set up your device:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MikroTik Chateau D53G-5HacD2HnD-TC&EG06-A
Summary of Contents for MikroTik Chateau D53G-5HacD2HnD-TC&EG06-A
- Page 1 Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed. Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an uncontrolled environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the general public.
- Page 2 Must have a valid SIM card inserted; To manually update the device, please go to https://mikrotik.com/download Choose ARM packages for this device and download them to your PC. Upload downloaded packages to the WebFig "Files" menu and reboot the device.
- Page 3 Insert the SIM card and power on the device. Scan QR code with your smartphone and choose your preferred OS. Connect to the wireless network. SSID starts with MikroTik and has the last digits of the device's MAC address. Open application.
- Page 4 We recommend using Cat5 shielded cable. When using and installing this device please pay attention to the Maximum Permissible Exposure (MPE) safety distance with a minimum of 20 cm between the radiator and your body. Powering The device accepts power from an adapter: Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) 12-28 V DC.
- Page 5 Cellular connection technology based on system/power LED color: Red: GSM Yellow: 3G Blue: LTE Green: 5G NSA Violet: 5G SA Led not blinking: Not registered SIM slot usage SIM card slot is designed to use with Micro SIM cards. Nano SIM cards have different thicknesses, and usage with an adapter are not recommended. Reset button The reset button has three functions: Hold this button during boot time until the LED light starts flashing, release the button to reset the RouterOS configuration (total 5 seconds).
- Page 6 When using one antenna, please connect to the SMA connector on the left side (ANT1). Only when using two antennas, you can connect to the right SMA connector (ANT4). Please connect and disconnect the antenna, when the device is turned off! SMA connectors on the device are female.
- Page 7 Federal Communication Commission Interference Statement Model FCC ID Contains FCC ID D53G-5HacD2HnD-TC&EG06-A TV7D53G-5ACD2ND XMR201807EG06A This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
