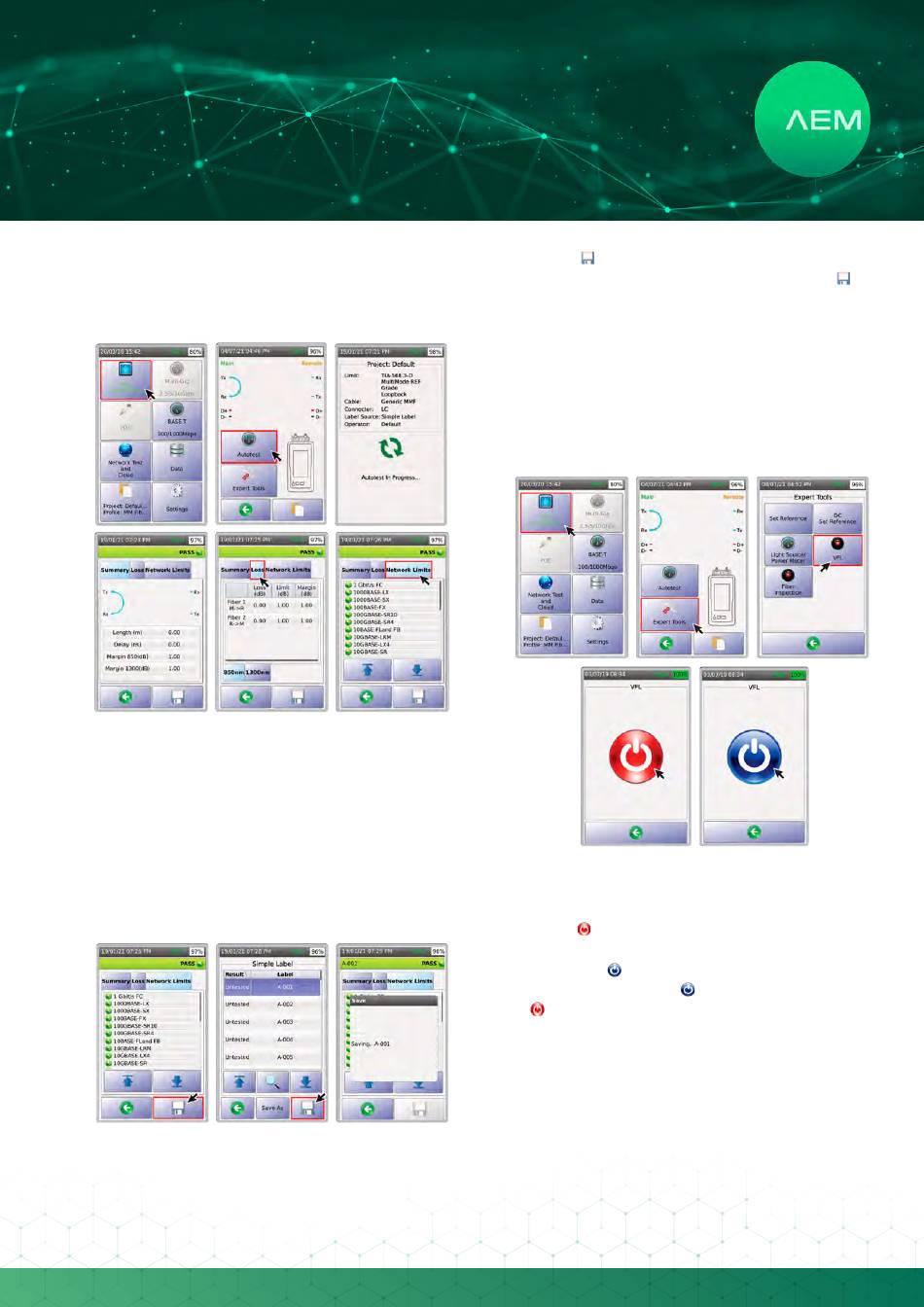

g. Performing Fiber Autotest
Connect a fiber multi-mode or single mode adapter
to the NSA unit. Connect the end of the fiber cable
to the NSA fiber connector.
In the main screen, select [Fiber Certification]
•
Select [Autotest].
•
NSA will confirm that Autotest is in progress.
•
Once the Autotest is complete, NSA will display
•
a summary.
Select the [Loss] tab to view the loss and margin
•
at 850mm and 1300nm respectively.
Select [Network Limits to view the various limits
•
that the fiber-under-test can support.
h. Save Test Data
•
•
•
i. Visual Fault Locator (VFL)
Visual Fault Locator (VFL) is used to detect fiber
cable bends and breaks, bad splices and a faulty
connector. A powerful, bright red light will shine
through the fiber's cladding, indicating where a
break or kink may have occurred.
•
•
•
•
•
WWW.AEM-TEST.COM
CUSTOMERCARE@AEM-TEST.COM
VER # : 1.0 / PART # : 2201-0011
2 5
Select to show the label list.
Choose a label from the list, and then select
A dialog box will confirm that the results are being
saved.
Select [Fiber Certification].
Select [Expert Tools].
Select [VFL].
Select to turn on VFL. Connect the fiber-under-
test to the VFL port of the NSA. When the icon
turns blue: , the power is on.
To turn off VFL, select . When the icon turns red:
, the power is off.
.
