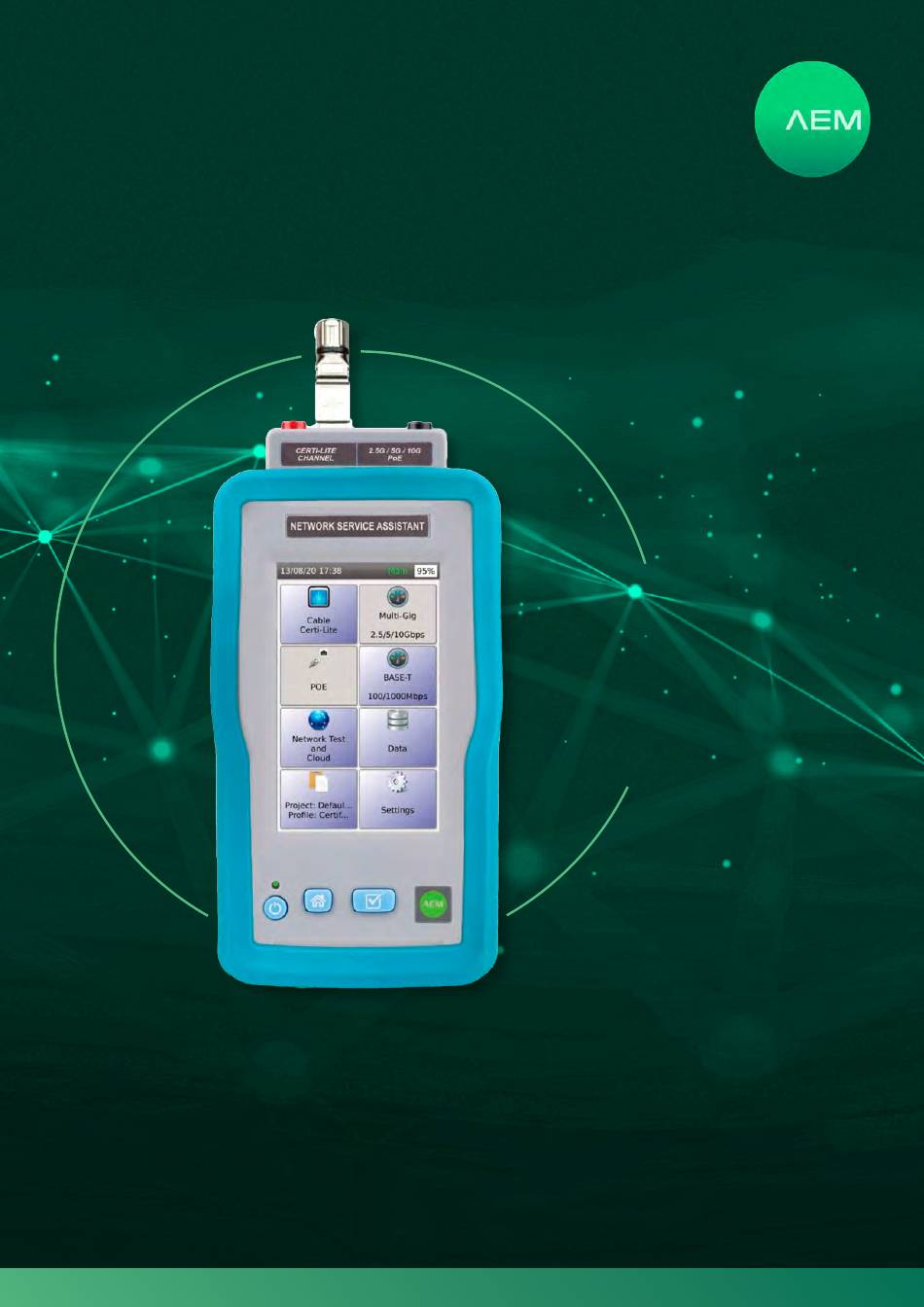

- Page 1 SERVICE ASSISTANT USER MANUAL WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011 W W W . A E M - T E S T . C O M | C U S T O M E R C A R E @ A E M - T E S T . C O M | V E R # : 1 . 0 / P A R T # : 2 2 0 1 - 0 0 1 1...
-
Page 2: Table Of Contents
User Manual Contents Kit Contents Selecting Cable/Connector Performing Autotest Network Service Assistant (NSA) Features Saving Test Data Settings NSA Cable Identification Settings Configurations Multi-Gig and PoE Testing Date and Time Creating Project/Profile User Interface Selecting Test Limits Length Unit Selecting Cable/Connector... - Page 3 Management Software Generating Test Report Generating Multiple Test Reports Adding Hierarchy Meter to Feet Firmware Updates Firmware Update via USB Flash Drive with OSUpgrade.zip File Firmware Upgrade using TestDataPro WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011...
-
Page 4: Kit Contents
User Manual Kit Contents Refer to https://aem-test.com/products/network-service-assistant for a full list of kits available Network Service Assistant (NSA) Features 1. Power Button The NSA features a touchscreen based interface. Product features include: POWER BUTTON Powering on : press for 1 second •... - Page 5 DC INPUT • Connection for 5V DC supply (WARNING : Do not connect to any power supply other than the power adapter supplied by AEM). TEST ADAPTER • A variety of plug and play adapters can be used to change the function of the NSA modular platform.
-
Page 6: Settings
Enable the checkbox [Sync Time with server] and • select . Note: The timezone will only sync when iii. Power Off Timer NSA detects Internet connectivity. Select [Power Off Timer]. • WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 7: Power Off Timer
• trigereed instead of cable diagnostic • Select [Autosave with PASS result only] to autosave the pass results only. Select to save the settings. • WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 8: Language
• Click [Settings] on the home screen, then [System] Gauge]. iii. NSA will apply the changes and restart and then [Device Information]. the device. AEM recommends to charge the battery overnight. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 9: Restoring Factory Settings
NSA Remote with different IDs can be used to identify cables that are mixed up, no label or which are mislabeled. When an NSA Remote is connected to NSA, the correct ID for it will be automatically detected and displayed. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM... -
Page 10: Set Reference
Certification with less than 4 pairs 8 NSA Remote units. [MM Fiber] for Multimode Fiber [SM Fiber] for Singlemode Fiber [Network Validation] for Network Autotest [Coax] for Coax Certification WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 11: Selecting Test Limit
• selected test profile. Select [Limit]. • Select [01 NSA]. ISO and TIA are the widely used • standard limits. Customized limits are not supported in AD-NSA Remote testing. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 12: Performing Autotest
The return loss graph will be displayed. Select • The worst margins for return loss will be displayed • Cable under test g. Saving Test Data CV100 3 Ghz WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 13: Switching Modes Under Nsa
Select [Cable]. • Select [Genetic UTP] and then select • Select [CAT6A UTP] and then select [Edit]. • Select [More] • Key in the NVP value. • Select [Save]. • WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 14: Learn Nvp
Select [Expert Tools]. • Select [Learn NVP]. • Key in the cable length and select • NSA will calculate the NVP and display the result. • WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 15: Single Pair Ethernet With Nsa Remote
2. Connect the short patch cord that is less than 4 pairs from the AD-NSA adapter to the NSA Remote using an RJ45 coupler (if needed). 3. Perform Set Reference. AEM Recommendation: Do not disconnect the patch cord attached to the AD-NSA adapter after completing Set Reference. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM... -
Page 16: Selecting Test Limit
SPE cable and SPE connector under [Generic UTP] or [Generic Shielded] or [Generic Automotive] cables and connectors database. For more information, refer to: 2d. Certi-Lite with NSA Remote – Selecting Cable/Connector. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 17: Multi-Gig And Poe Testing
Choose from one of the already defined projects • or create a new project by selecting [Add New]. Key in an appropriate name and select • Confirm the name by selecting • WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 18: Selecting Cable/Connector
Select [Cable: Generic Cat 6A]. • If unsure of the type of cable,select [Generic UTP] • for unshielded cable and [Generic Shielded] for shielded cable. Choose the specific type of cable. • WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 19: Cloning A Project
2.5Gbps, 5Gbps, and 10Gbps data rates, and validate PoE To conduct a comprehensive Multi-Gig validation • performances up to the highest power level test, select [Autotest]. specifications of 90W. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 20: Base-T
2.5Gbps/5Gbps/10Gbps when voltage injected to it. NSA will also check that the cable installation meets the minimum required power to turn on a PoE device. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 21: Poe Load Test
• 2.5Gbps/5Gbps/10Gbps when there is a loaded PoE. Qualified PoE loads i.e., POE load boxes supplied by AEM that draw constant power can be connected to the banana sockets to monitor the Signal SNR in the presence of loaded POE. -
Page 22: Fiber Certification Test
HOML qualifications of the source and launch cord reference cord is cleaned and not degraded combination involves the use of a launch cord with before performing the set reference. and without applied mandrel wrap. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 23: Fiber Test Setup
Replacing reference cords. Connect the end of a 2-meter • reference cord to NSA’s Tx AEM recommendations: port and the other end to the Wait for 5 minutes after powering up the fiber fiber connector. adapters before performing set reference, Connect a separate 2-meter •... -
Page 24: Choosing A Configuration
MMF] for multi-mode and [Generic SMF] for single mode. To add a manufacturer’s cable to our database, please email: customercare@aem-test.com. Select the appropriate standard - [TIA] or [ISO/ IEC]. Select the desired TIA Limit-[STD Grade] or [REF Grade]. Use [Ref Grade] if testing reference grade fiber cable and [STD Grade] if testing standard grade fiber cable. -
Page 25: Performing Fiber Autotest
VFL port of the NSA. When the icon turns blue: , the power is on. To turn off VFL, select . When the icon turns red: • , the power is off. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 26: Light Source/Power Meter
(UTP) cables attached to a power source. will start to show. Selecting will turn off the light source/power • powered fiber cable system improves meter function. speed and simplifies installation, powering, and WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 27: Powered Fiber
Note: Connect an Ethernet cable from the NSA side port to a live network. Attach a PoE test cable to the power port of the fiber adapter. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 28: Fiber Set Reference
Ping test. • A [Ping Statistics] page will display the numbers • of ping requests, replies and errors. It will also display the current, average, maximum and minimum response times. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 29: Vlan Discovery
Information such as port number, VLAN ID, IP address and much more are also readily available, eliminating the need to manually trace network cables, saving users time and effort when troubleshooting network related issues. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 30: Tcp Connect
• URL or IP address to be tested in the [Domain Name] field. Specify the port to be used and the timeout period. Select • Select • Select • WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 31: Network Test
A dialog box will request for the network • password. Key in the password for the selected AP. Click to enable Wi-Fi and to cancel. NSA is now connected to AEM-WIRELESS AP • Select • with corresponding signal strength in dBm Select [Network Tests]. -
Page 32: Signal Strength
AP to another that [Network Discovery Mode] [Network • shares the same SSID and password. Discovery Time] are set to [Time Bound] and 30 seconds by default. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 33: Selecting Test Limit
Select [Network Test and Cloud]. • (MAC) addresses will be shown. Select [Cloud]. Note: [Cloud] is only available • when Ethernet cable or Wi-Fi is connected. Select [Cloud Login] • WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 34: Usb Menu
10 minutes to complete. • Select the project to upload. • The cloud will show the new project i.e., AEM PROJECT. Select [Sync Data]. A dialog box will confirm once the sync is • complete and the project has been uploaded to the cloud. -
Page 35: Copying Test Results To Usb
To export the projects: Insert a USB flash drive to the NSA unit and select • [Import Label List]. A dialog box will confirm successful import. • WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 36: Test Results Management
[Project imported from USB. Reboot is required] • message will appear. Select to reboot the Visit www.aem.test.com/myaccount to download device. TestDataPro. Install the TestDataPro software and Note: To share the project.dat file, attach the USB refer to the TestDataPro user guide. The procedures flash drive to the PC and open the drive. -
Page 37: Generating Test Report
>> select the project(s) >> click OK. When importing from the device, click [From Device] the test results will automatically import and sort according to project. A dialog box will confirm once the import is complete. WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... -
Page 38: Generating Multiple Test Reports
NSA’s firmware can be upgraded using the USB e. Adding Hierarchy flash drive. NSA firmware version should be 2.4 or later. Go to www.aem.test.com/myaccount, log in to • your account (create account for new users) and download the latest firmware under [Downloads and Updates]. -
Page 39: Firmware Update Via Usb Flash Drive
A dialog box will remind users to back up test results • before proceeding with the firmware update. Click [OK] to continue. The firmware update will commence. Estimated • time for the update is 10 minutes WWW.AEM-TEST.COM CUSTOMERCARE@AEM-TEST.COM VER # : 1.0 / PART # : 2201-0011... - Page 40 Quick Start Guide Network Service Assistant Specifications RJ45 Test Ports Battery 10/100/1G Test Port Lithium ion • • Network Connectivity Port 3.7V • • 13,200 mAh • Adapter Interface Approximate test time : 8 hrs (based on an • 60-pin high-frequency connector rated for 5000 •...
