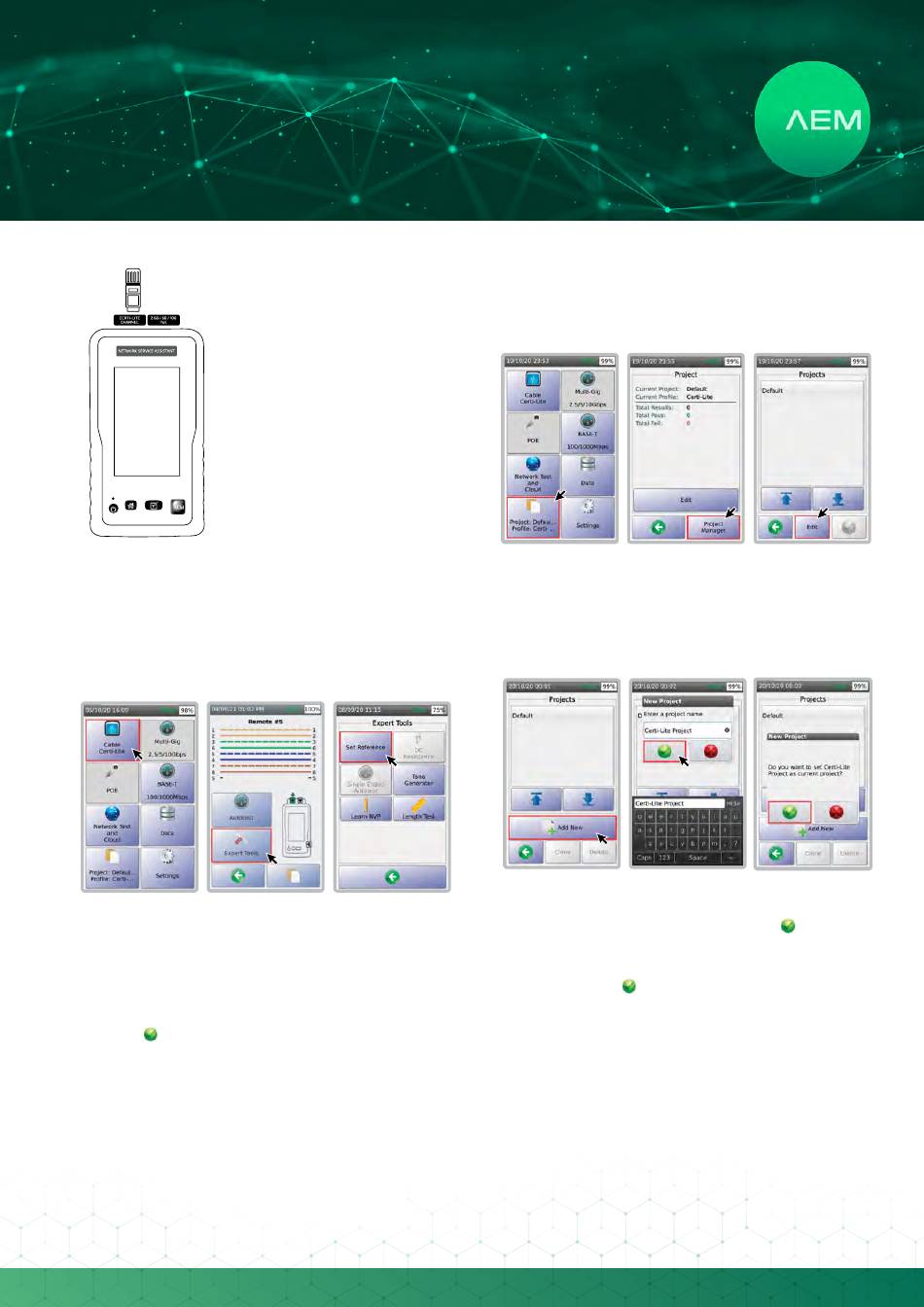

a. Set Reference
adapter. Do set reference to all 8 NSA Remote units
one by one before using.
Note: Set reference will already have been performed
before shipping the product, therefore it is not
necessary to perform it again when the product is
received.
On the NSA main screen, select [Cable Certi-Lite].
•
NSA will identify the NSA Remote ID attached - ie.,
•
Remote #5. Select [Expert Tools].
Select [Set Reference].
•
The dialog box [Connect NSA Remote to the cable
•
test port of the AD-NSA adapter] will appear.
Select .
•
Note: Repeat the set reference process using all the
8 NSA Remote units.
It is important to perform a set
reference using NSA Remote
IDs 1 to 8 before using it for the
Autotest when the AD-NSA
adapter is attached to the NSA
for the first time. Failure to do
so will result in incorrect DC
resistance measurements.
To perform set reference,
attach an AD-NSA adapter
to the NSA and one of the 8
NSA Remote to the Cert-Lite
Channel port of the AD-NSA
WWW.AEM-TEST.COM
CUSTOMERCARE@AEM-TEST.COM
VER # : 1.0 / PART # : 2201-0011
b. Creating Certi-Lite Project/Profile
NSA supports customer workflows through project
and profile descriptions. [Project] is an identifier of
the customer site/location, while [Profile] refers to
specific test configurations.
Select [Project]/[Profile] on the home screen to
•
create/edit a project. Once a project is selected,
subsequent Autotest results will be saved there.
Select [Project Manager] to choose or create a
•
different project or to delete an existing project.
Select [Edit] to edit project details.
•
• Choose from one of the already defined projects or
create a new project by selecting [Add New].
• Key in an appropriate name and select
project.
After selecting the project name, a dialog box will
•
appear. Select
a. [Certi-Lite] for NSA Remote
b. [Validation] for Multi-Gig tests
c. [Certification] for Copper Cable Certification
d. [Single Pair Ethernet] for Copper Cable
Certification with less than 4 pairs
e. [MM Fiber] for Multimode Fiber
f. [SM Fiber] for Singlemode Fiber
g. [Network Validation] for Network Autotest
h. [Coax] for Coax Certification
1 0
to save the
to see the various profiles:
