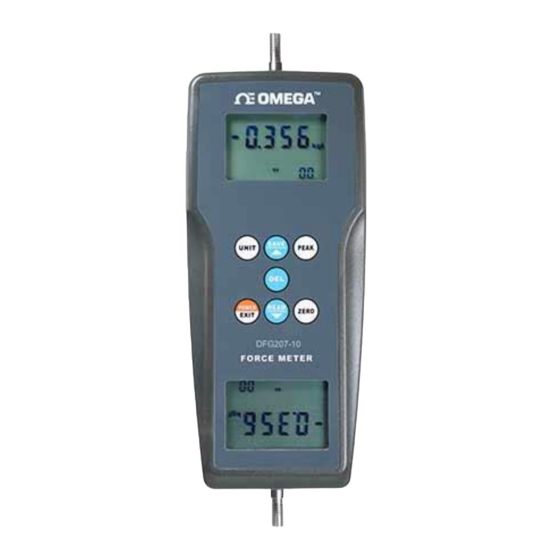

- Page 1 User’ s Gui d e Shop online omega.com e-mail: info@omega.com For latest product manuals: www.omega.com/en- us/pdf-manuals DFG207 Digital Force Gauge M 5 7 9 3...
- Page 2 Germany 75392 Irlam, Manchester M44 5BD The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains and reserves the right to alter specifications without notice. M 5 7 9 3...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ............................... 3 Introduction ..............................4 Safety/Proper Usage ............................4 Power ................................. 5 Power On & Off ..............................5 Battery Replacement ............................5 Hardware Setup ............................6 Installation & Measurement ..........................6 Home Screen & Controls ..........................7 Overall Structure ..............................7 Display ................................8 Operation Key ..............................9 Operating Modes ............................ -
Page 4: Introduction
1 Introduction Thank you for purchasing an Omega Model DFG207 digital force gauge; designed for push force and pull force testing in numerous applications across virtually every industry. With proper usage, we are confident that you will get many years of great service with this product. Omega instruments are ruggedly built for many years of service in laboratory and industrial environments. -
Page 5: Power
• Do not use the gauge in the following environment: Wet environment Dusty environment Next to an environment with chemicals or oils Next to a vibration source • After use, please put the force gauge into the portable box to protect the testing shaft from damage. •... -
Page 6: Hardware Setup
3 Hardware Setup 3.1 Installation & Measurement Once the gauge is powered on, press the operation keys to select the intended measurement mode according to the use case, or measure directly with the factory default settings. Step 1: Select the appropriate test fixtures to install on the force gauge (to use self-made fixtures, please refer to the relevant data on the next page). -
Page 7: Home Screen & Controls
4 Home Screen & Controls 4.1 Overall Structure Figure 2: DFG207 Unit Structural Diagram Function Description of Overall Structure The screw is the main force-sensing structure component of the whole instrument. The function of the screw is to conduct the outer applied force into the gauge. It can be... -
Page 8: Display
Display B is used to display the readings of measurement, units of measurement, the 4-4 Display B indications of the operation, etc. It is designed for more convenient reading on multiple directions. 4-5 USB Cable Interface The interface accepts a USB data cable for data collection. 4-6 Fixing Screw The fixing screw allows the gauge sensor to be connected to external components. -
Page 9: Operation Key
4.3 Operation Key Figure 4: Unit Operation Key Diagram Function Description of Operation Key 4-17 Unit Conversion Key (UNIT) The key for unit conversion. 4-18 Delete Key (DEL) The key for deleting the memorized data. The key for powering on/off the gauge. It is also the key for exiting from Data 4-19 Power/Exit Key (POWER/EXIT) Scanning Mode. -
Page 10: Operating Modes
5 Operating Modes 5.1 Real-Time Measurement Mode & Peak Hold Mode Two kinds of measurement modes can be set for this gauge, the Real-Time Measurement Mode and the Peak Hold Mode. When there is no peak indicator "MAX" on the display, it is in the Real-Time Measurement Mode. The displayed test value changes according to the load. -
Page 11: Specifications
8 Specifications Accuracy ± 0.2% FS ± 1Digit Unit kgf, gf, N, Lbf Measurement Peak Value Measurement, Real Time Measurement Display 2 Reversible 4 Digit LCD Displays Power Off 10 Minutes Auto Power Off, Manual Power Off Backlight Blue Backlight Safe Load 150%FS (Buzzer Alarm Over 110% FS) Data Output... -
Page 12: Specification And Application Of Accessories
8.2 Specification and Application of Accessories 12 | M 5 7 9 3...
