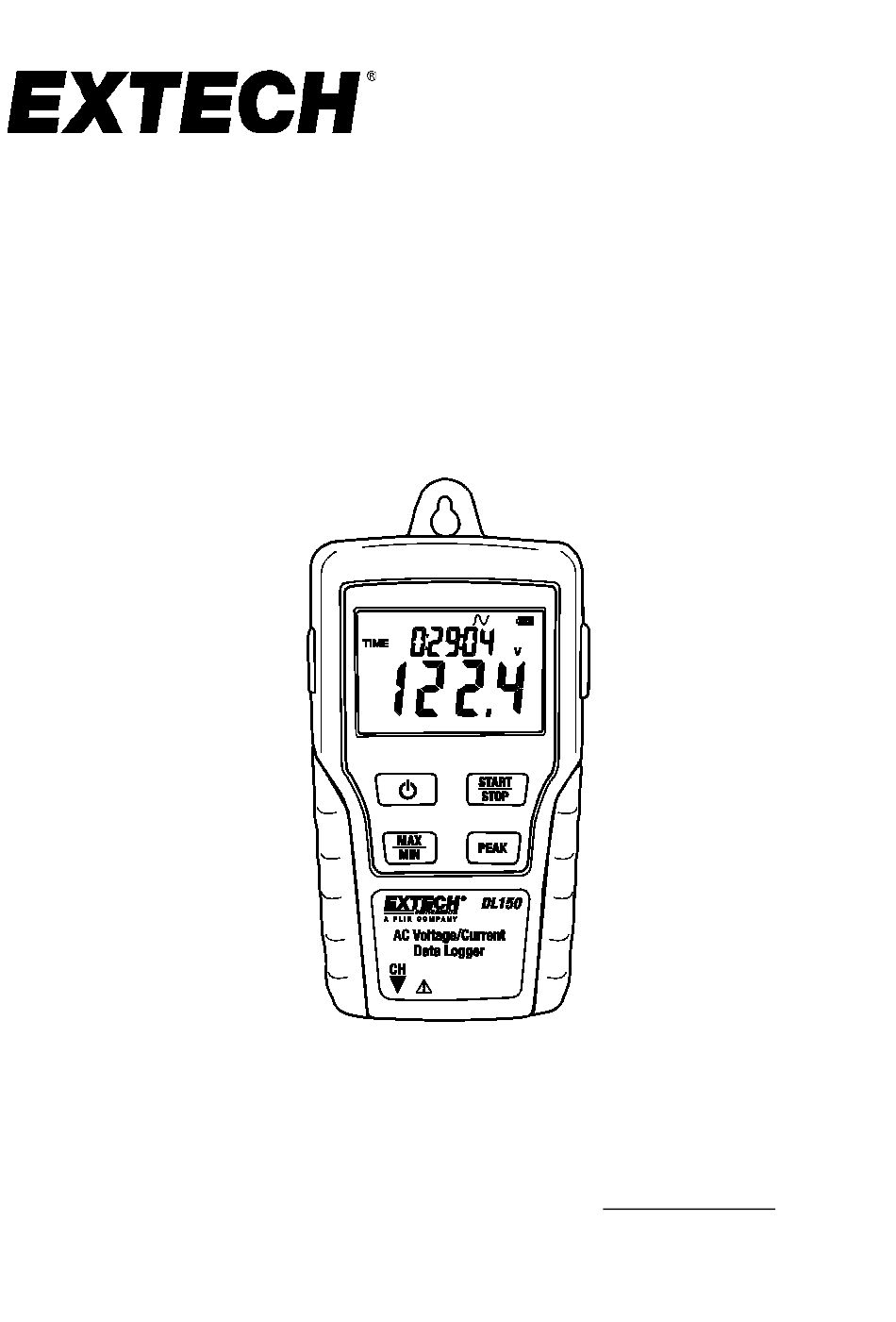

- Page 1 User Manual True RMS AC Voltage/Current Datalogger Model DL150 Additional User Manual Translations available at www.extech.com...
- Page 2 Switch off the meter after use. Remove the AAA batteries when the meter will be stored for a • period of time. When cleaning, do not use abrasives or solvents on the meter, use a damp cloth and mild • detergent only. DL150-en-US_V2.7 6/22...
- Page 3 REC is shown on the LCD. The meter will measure and record data according to the software setup. 8. USB Port 9. AC Current Clamp Jaw: Clamp the jaws around a single conductor for AC current measurements to 200A 10. Jaw Opening Trigger 11. CH Plug DL150-en-US_V2.7 6/22...
-
Page 4: Operation
Single Phase: Connect one lead to one phase and the other lead to the Neutral line. Multi phase: Connect one lead to one phase and the other lead to another phase. Current clamp Connect the clamp over one lead only and the clamp jaw must fully close in order to measure correctly. DL150-en-US_V2.7 6/22... -
Page 5: Battery Replacement
Note: If the clock does not set to the correct time, replace the 3V button battery PC Interface and Software Check the software download page of the website www.extech.com/software/downloads for the latest version of the PC software. Instructions for use and features are detailed in the supplied software HELP utility. DL150-en-US_V2.7 6/22... -
Page 6: Specifications
0.5” (12.7mm) Dimensions 4.5 x 2.5 x 1.3” (114 x 63 x 34mm) Weight 8.7oz. (248g) Range Accuracy Voltage 10VAC to 600.0VAC ±2.0%±1V 40Hz to 1kHz Current 10A to 200.0A ±2.0%±1A 50/60Hz Peak Measurement 8.0 to 850.0V ±5.0% DL150-en-US_V2.7 6/22... -
Page 7: Two Year Warranty
Contact Customer Support Customer Support Telephone List: https://support.flir.com/contact Calibration, Repair, and Returns: repair@extech.com Technical Support: https://support.flir.com Copyright © 2022 FLIR Systems Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com DL150-en-US_V2.7 6/22...
