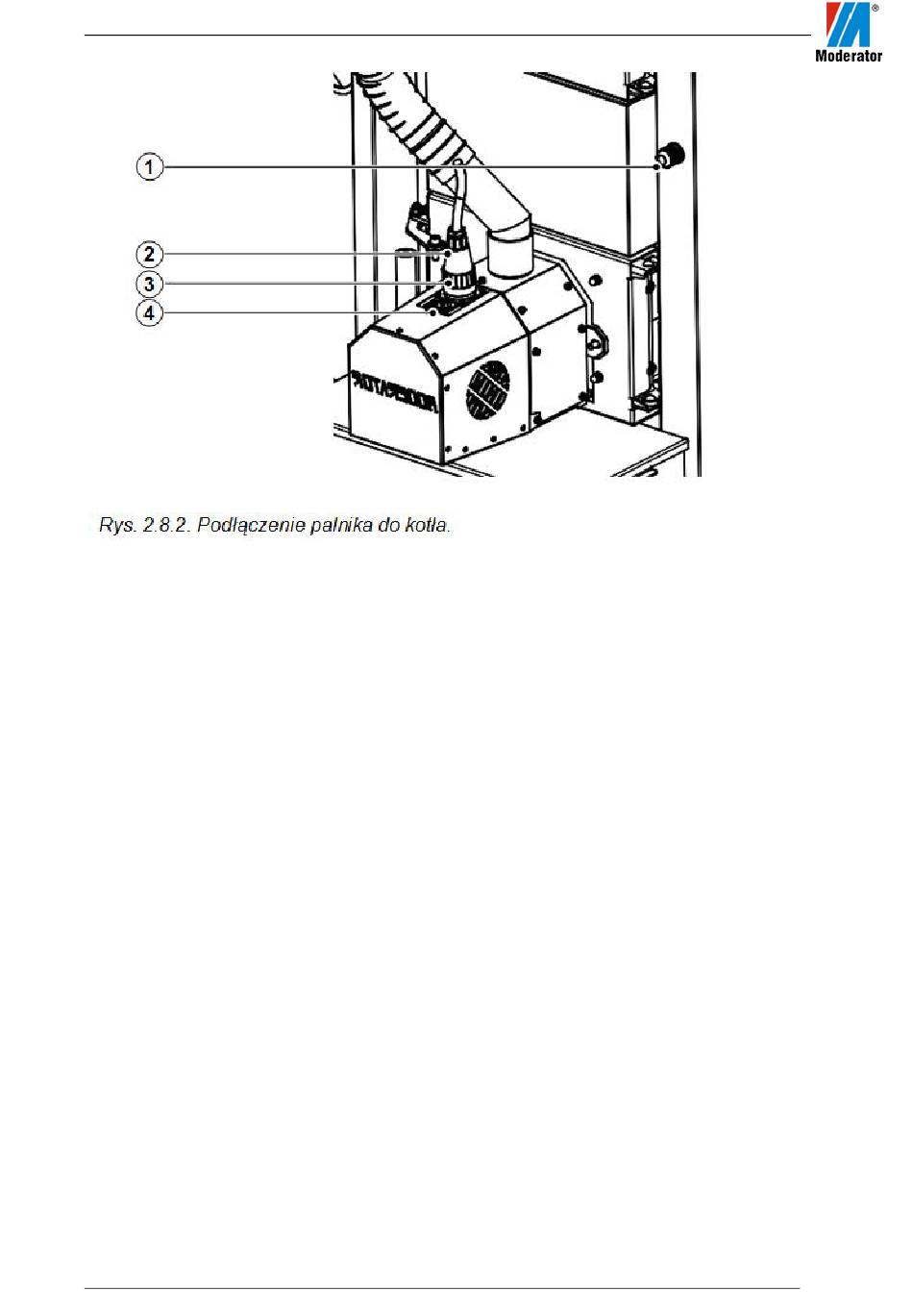

Connecting the exhaust ventilator
Cable of the exhaust ventilator should be connected to the upper computer socket
at the back of the boiler (1, Fig. 2.8.3).
Connecting the ash removal system
The ash removal motor must be connected to the computer socket (2, Fig. 2.8.3).
Connecting other devices
The boiler's controller makes it possible to connect other devices, such as a
central heating pump, domestic hot water pump, and other, as listed in the
controller's manual. In order to do that the cleaning hatch cover must be taken off (5,
Fig. 1.4.2). Then, loosen the bolts connecting controller's chamber cover and take it
off (22, Fig. 1.4.2). Under the cover there is a boiler's controller. Cover with the panel
should be set aside. Additional cables should go through cable glands. Holes can be
made by removing it with a flathead screwdriver (1, Fig. 2.8.4). Other devices are
connected to the electrical box on the back of the boiler.
