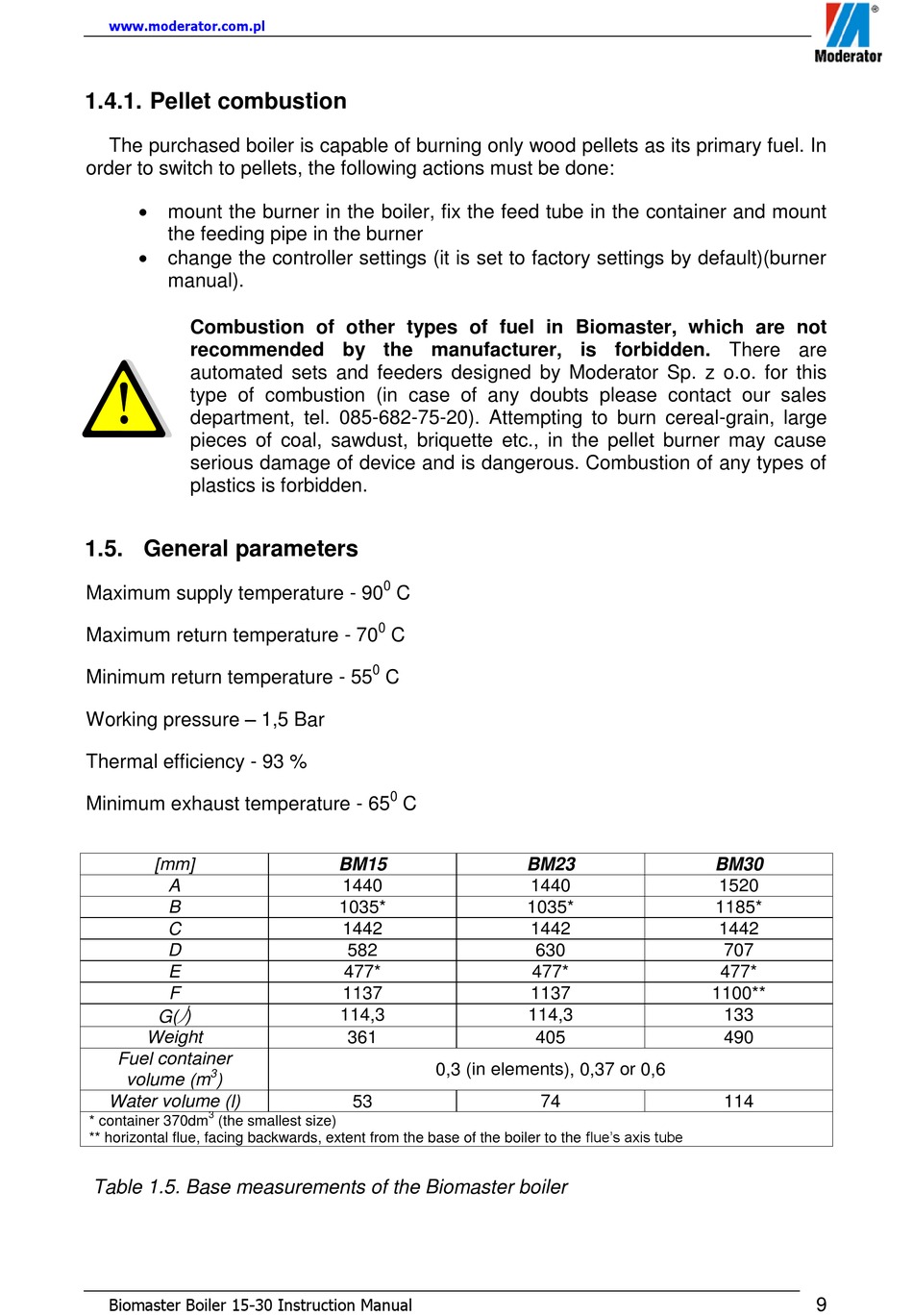

1.4.1. Pellet combustion

The purchased boiler is capable of burning only wood pellets as its primary fuel. In
order to switch to pellets, the following actions must be done:
 mount the burner in the boiler, fix the feed tube in the container and mount
the feeding pipe in the burner
 change the controller settings (it is set to factory settings by default)(burner
manual).
Combustion of other types of fuel in Biomaster, which are not
recommended by the manufacturer, is forbidden. There are
automated sets and feeders designed by Moderator Sp. z o.o. for this
type of combustion (in case of any doubts please contact our sales
department, tel. 085-682-75-20). Attempting to burn cereal-grain, large
pieces of coal, sawdust, briquette etc., in the pellet burner may cause
serious damage of device and is dangerous. Combustion of any types of
plastics is forbidden.

1.5. General parameters

Maximum supply temperature - 90
Maximum return temperature - 70
Minimum return temperature - 55
Working pressure – 1,5 Bar
Thermal efficiency - 93 %
Minimum exhaust temperature - 65
[mm]
A
B
C
D
E
F

G( )
Weight
Fuel container
3
volume (m )
Water volume (l)
3
* container 370dm (the smallest size)
** horizontal flue, facing backwards, extent from the base of the boiler to the flue's axis tube
Table 1.5. Base measurements of the Biomaster boiler
Biomaster Boiler 15-30 Instruction Manual
0
C
0
C
0
C
0
C
BM15
1440
1035*
1442
582
477*
1137
114,3
361
0,3 (in elements), 0,37 or 0,6
53
BM23
1440
1035*
1442
630
477*
1137
114,3
405
74
BM30
1520
1185*
1442
707
477*
1100**
133
490
114
9
