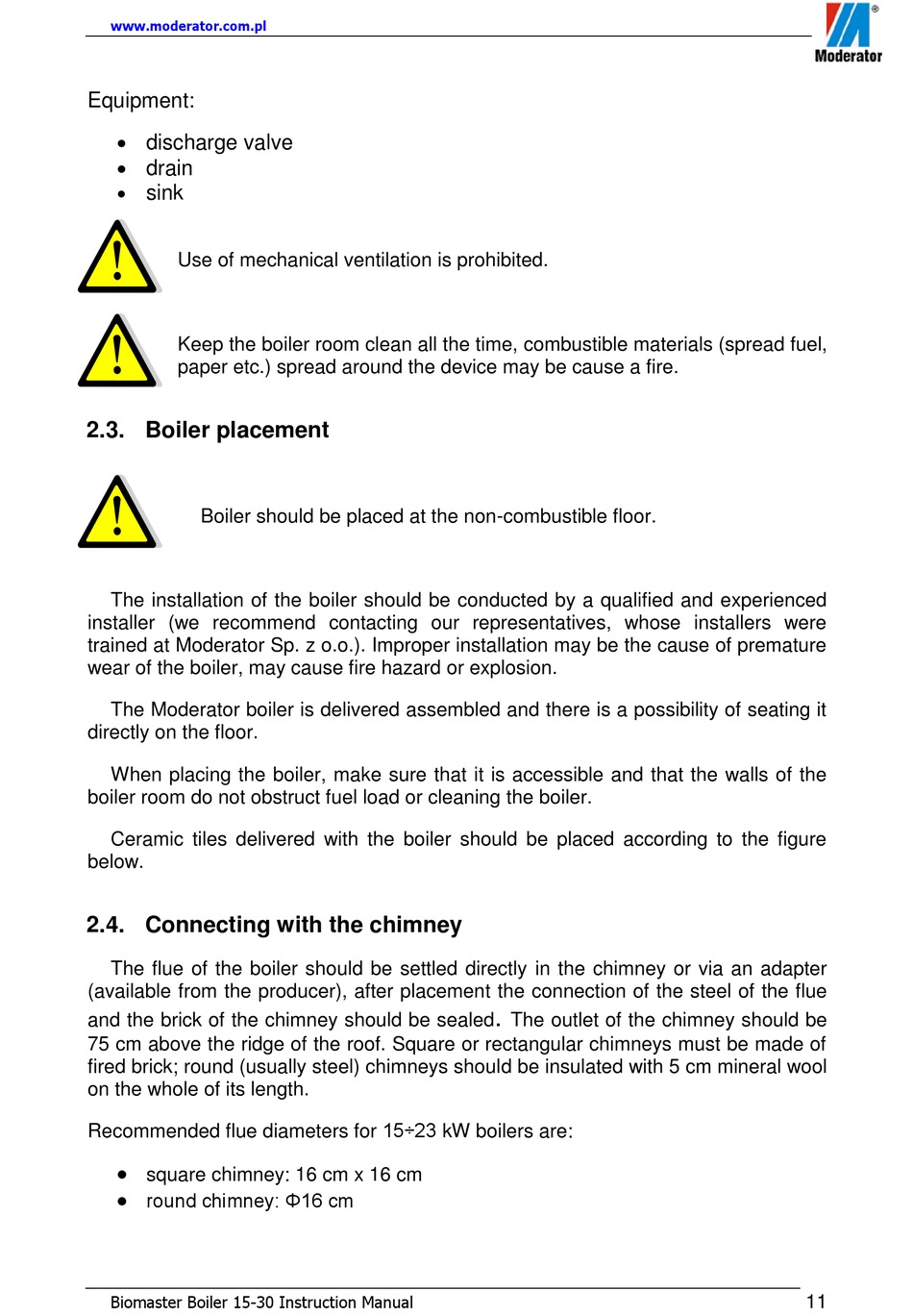

www.moderator.com.pl
Equipment:
 discharge valve
 drain

sink
Use of mechanical ventilation is prohibited.
Keep the boiler room clean all the time, combustible materials (spread fuel,
paper etc.) spread around the device may be cause a fire.

2.3. Boiler placement

Boiler should be placed at the non-combustible floor.
The installation of the boiler should be conducted by a qualified and experienced
installer (we recommend contacting our representatives, whose installers were
trained at Moderator Sp. z o.o.). Improper installation may be the cause of premature
wear of the boiler, may cause fire hazard or explosion.
The Moderator boiler is delivered assembled and there is a possibility of seating it
directly on the floor.
When placing the boiler, make sure that it is accessible and that the walls of the
boiler room do not obstruct fuel load or cleaning the boiler.
Ceramic tiles delivered with the boiler should be placed according to the figure
below.

2.4. Connecting with the chimney

The flue of the boiler should be settled directly in the chimney or via an adapter
(available from the producer), after placement the connection of the steel of the flue
and the brick of the chimney should be sealed
75 cm above the ridge of the roof. Square or rectangular chimneys must be made of
fired brick; round (usually steel) chimneys should be insulated with 5 cm mineral wool
on the whole of its length.
Recommended flue diameters for 15÷23 kW boilers are:

square chimney: 16 cm x 16 cm

round chimney: Φ16 cm
Biomaster Boiler 15-30 Instruction Manual
.
The outlet of the chimney should be
11
