www.moderator.com.pl

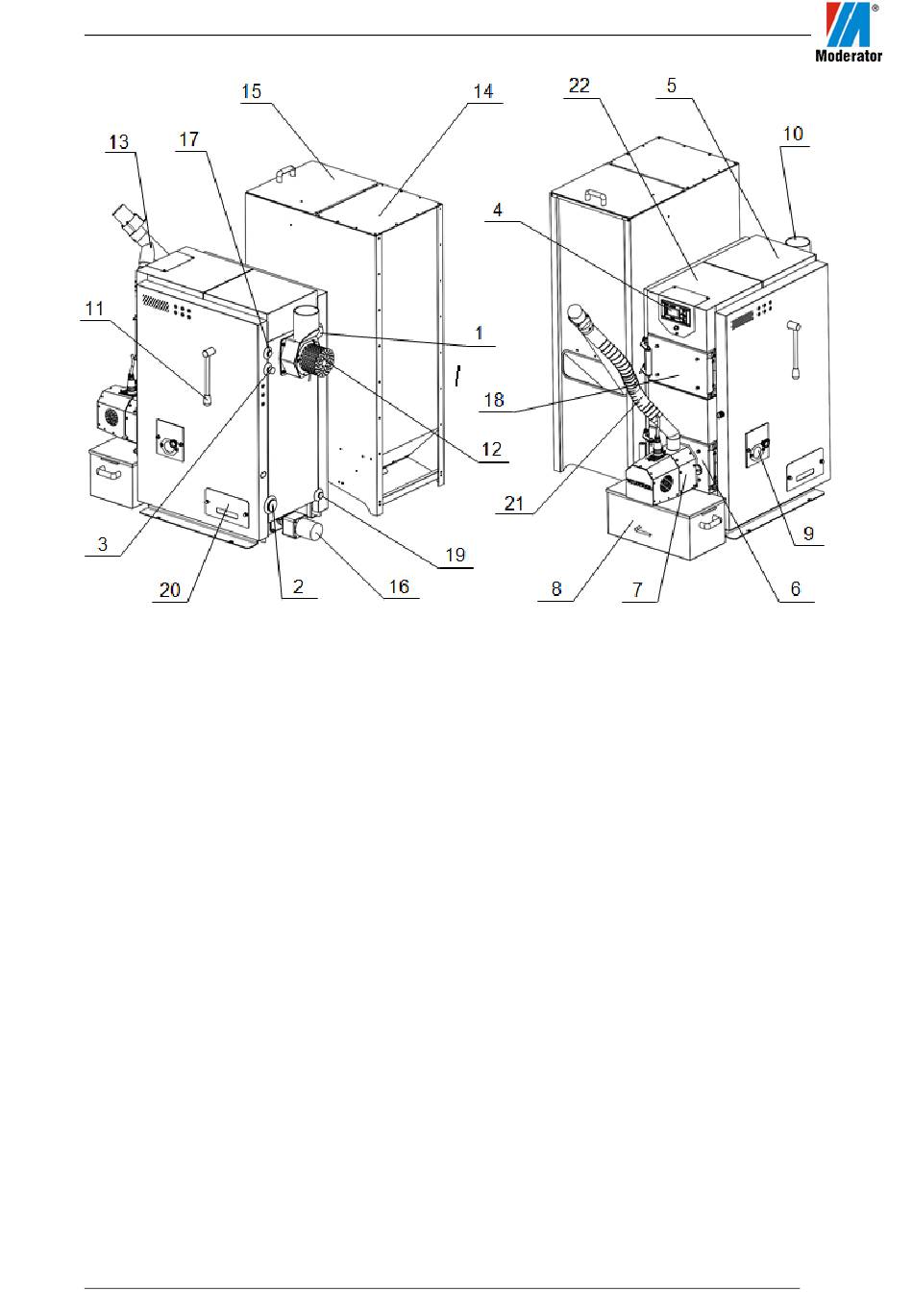

Figure 1.4.2 Boiler Biomaster – a general description of construction
1. Supply 1½" screw-in stub
2. Return 1½" screw-in stub
3. Safety valve ½" screw-out stub
4. ecoMAX Controller Panel
5. Upper cleaning hatch cover
6. Lower door (with burner)
7. Pellet burner Moderator
8. Ash container (optionally)
9. Viewfinder
10. Flue
11. Cleaning device's handle
12. Exhaust ventilator
13. Upper feeder
14. Fuel tank
15. Tank cover
16. Ash disposal gearmotor
17. Thermal protection probe 1½" screw-in stub
18. Upper door
19. Draining 1½" screw-in stub
20. Cleaning hatch cover
21. Elastic connection "spiro"
22. Controller chamber's cover
Biomaster Boiler 15-30 Instruction Manual
8
