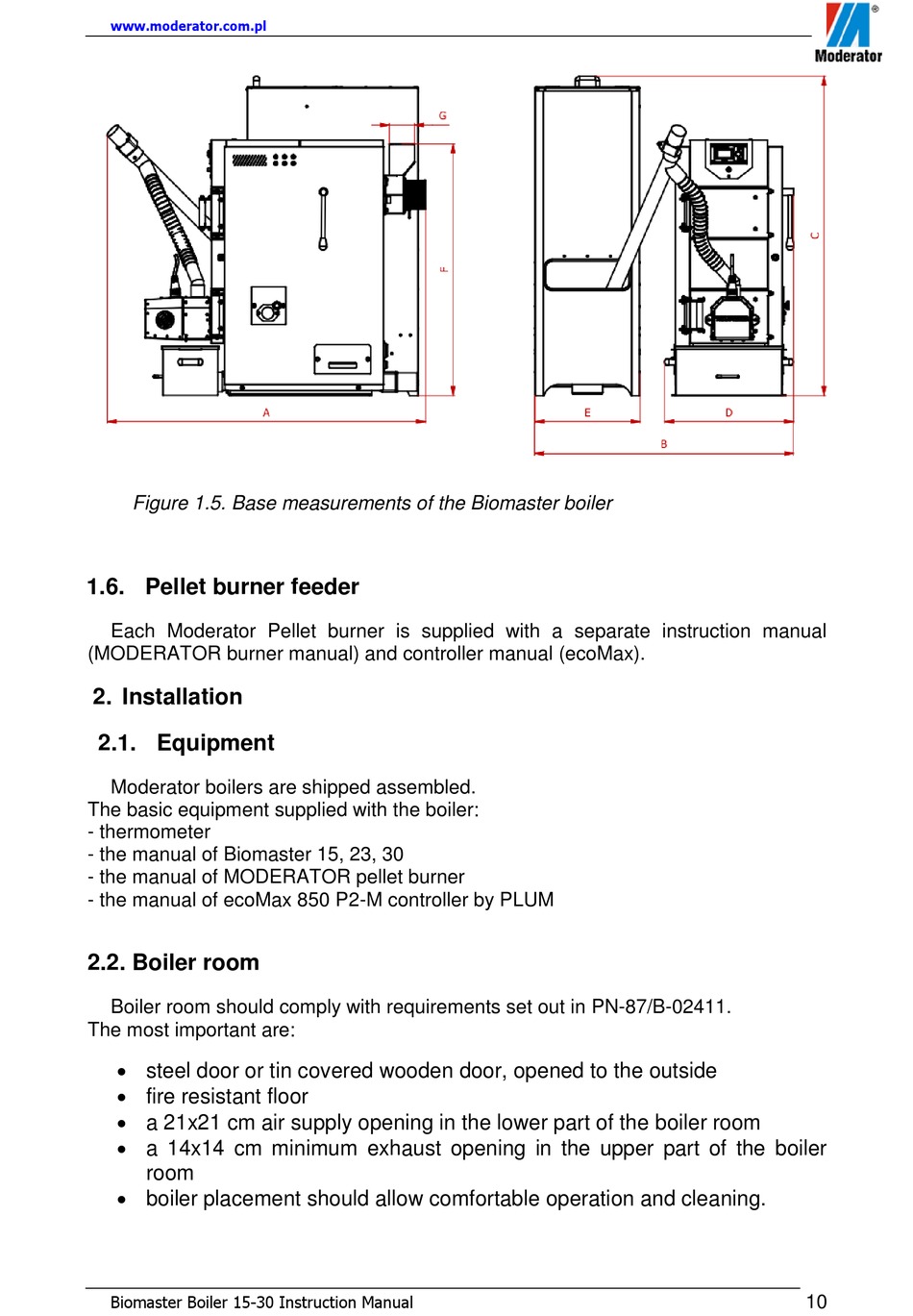

Figure 1.5. Base measurements of the Biomaster boiler

1.6. Pellet burner feeder

Each Moderator Pellet burner is supplied with a separate instruction manual
(MODERATOR burner manual) and controller manual (ecoMax).

2. Installation

2.1. Equipment

Moderator boilers are shipped assembled.
The basic equipment supplied with the boiler:
- thermometer
- the manual of Biomaster 15, 23, 30
- the manual of MODERATOR pellet burner
- the manual of ecoMax 850 P2-M controller by PLUM

2.2. Boiler room

Boiler room should comply with requirements set out in PN-87/B-02411.
The most important are:
 steel door or tin covered wooden door, opened to the outside
 fire resistant floor
 a 21x21 cm air supply opening in the lower part of the boiler room
 a 14x14 cm minimum exhaust opening in the upper part of the boiler
room
 boiler placement should allow comfortable operation and cleaning.
