Summary of Contents for Hay CONNECT BED

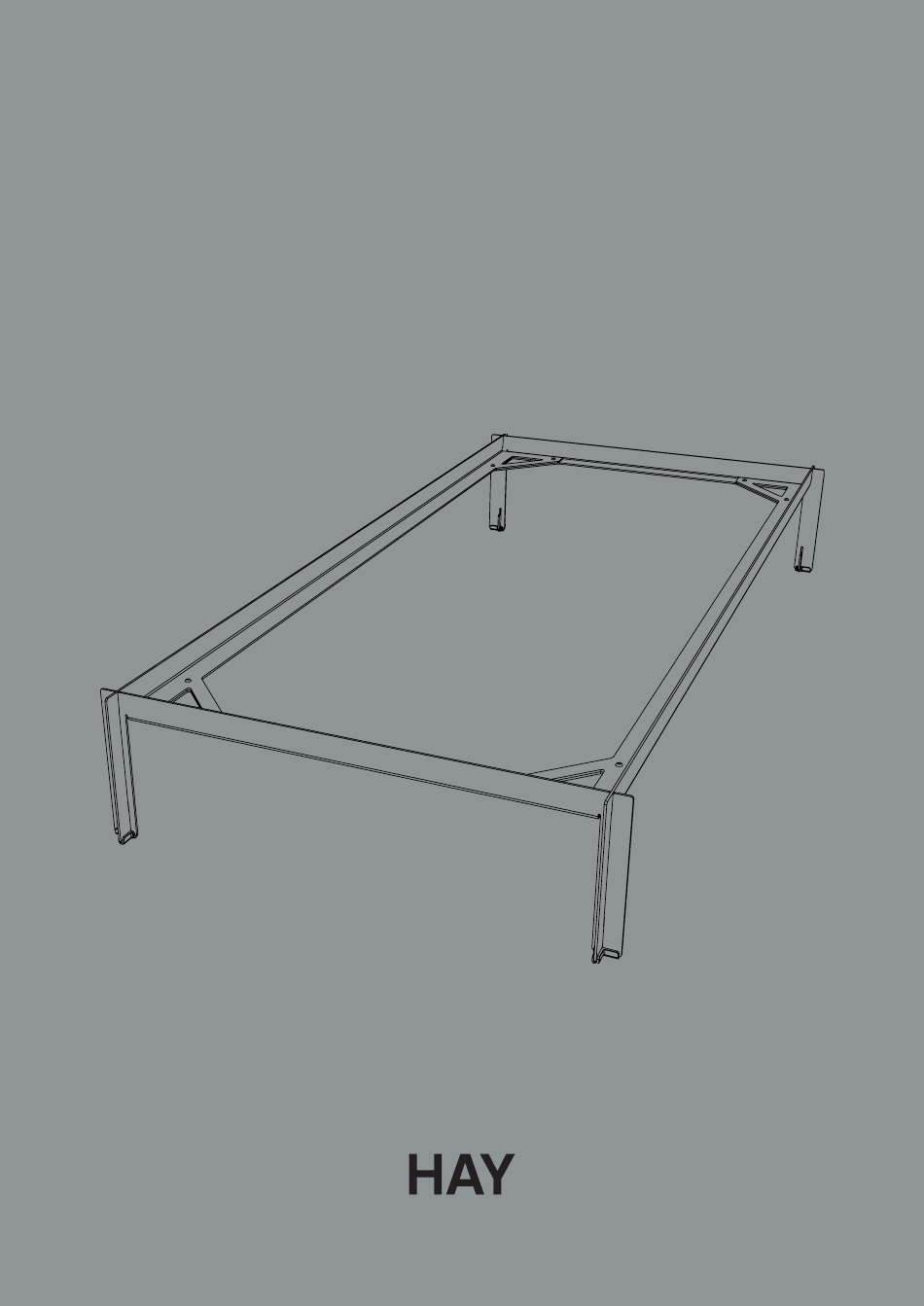

- Page 1 – INSTRUCTION MANUAL – CONNECT BED DESIGN BY LEIF JØRGENSEN...
- Page 3 – PARTS – Frame profile x2 Frame profile x2 Support bar x2 Screw x13 Feet x4 Allen key x1 (Only with 160x200 and 180x200)
- Page 4 Place the corner of profile on top of the corner of profile...
- Page 5 Rotate the leg of profile into the hole in the leg of profile...
- Page 6 Push down on profile until the two are flush with each other. Repeat steps 2 and 3 for all four corners.
- Page 7 Screw in the screws with the supplied Allen key. Do not fully tighten each bolt until all parts are assembled in the right position. Attach feet and make sure that the profiles reach all the way down to the bottom...
- Page 8 Done!
- Page 9 For the 160 x 200 and the 180 x 200 version of the Connect Bed, 2 x Support bars are included. Depending on your mattress, you have two options for placing the 2 x Support bars For a single box mattress, place For a two-mattress set-up place ...
- Page 10 Align the support bars with the holes in the profiles and secure them with the screws , using the supplied Allen key.
- Page 11 Connect the 2 x Support bars in the middle using the screw...
- Page 12 Done!
-
Page 13: Care And Maintenance
– CARE & MAINTENANCE – Our Care & Maintenance offers guidance for optimal maintenance of your HAY product. It includes advice and instructions on cleaning and caring for specific materials to prolong the life of your furniture. Please find our Care & Maintenance... - Page 16 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com www.hay.com 22/12/2021...
