Headquarters
5th floor,Building 4,Singapore Hangzhou Science Technology Park,
No. 6 street,Hangzhou Economic Development Area,
Hangzhou 310018,China
Singapore
2 Venture Drive #11-30 Vision Exchange Singapore
info@supmea.com
www.supmea.com
Supmea Automation Co.,Ltd.
User's Manual

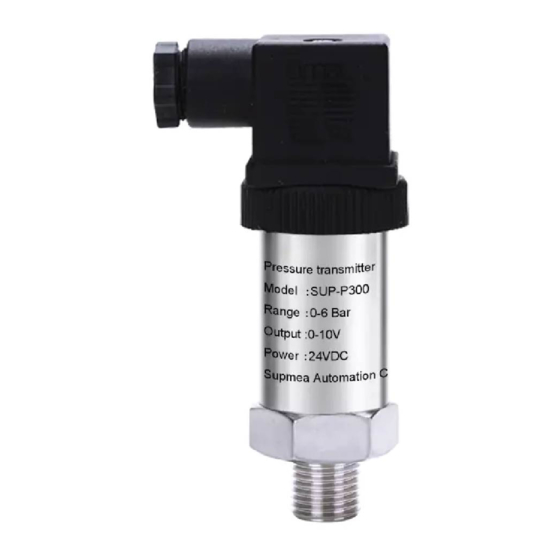

Pressure transmitter
U-SUP-P300/P400-EN3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SUPMEA P300
Summary of Contents for SUPMEA P300
- Page 1 User's Manual Pressure transmitter Headquarters 5th floor,Building 4,Singapore Hangzhou Science Technology Park, No. 6 street,Hangzhou Economic Development Area, Hangzhou 310018,China Singapore 2 Venture Drive #11-30 Vision Exchange Singapore info@supmea.com www.supmea.com U-SUP-P300/P400-EN3 Supmea Automation Co.,Ltd.
- Page 2 We try our best to guarantee that the manual content is accurate, if you find something wrong or incorrect, please contact us. This product is forbidden to use in explosion-proof occasions. Version U-SUP-P300/P400-EN3...
- Page 3 Disclaimer The company does not make any guarantees for the terms outside the scope of this product warranty. This company is not responsible for damage to the instrument or loss of parts or unpredictable damage caused directly or indirectly by improper operation of the user.
-
Page 4: Table Of Contents
Contents Chapter 1 Introduction..............1 Chapter 2 Characteristics...............2 Chapter 3 Dimension..............3 Chapter 4 Parameter..............8 Chapter 5 Wiring................10 5.1 DIN connector type............10 5.2 Cable connector type............12 Chapter 6 Function & Setting(P400)...........13 6.1 Display................13 6.2 Definition................14 6.3 Monitoring menu............... 15 Chapter 7 Installation..............22 Chapter 8 Safety instructions............24 Chapter 9 Cautions............... -
Page 5: Chapter 1 Introduction
The output electric signal is compensated by amplification and non-linear correction circuit, which generates voltage and current signals which correspond linearly to the input pressure. www.supmea.com... -
Page 6: Chapter 2 Characteristics
(7) Micro-amplifier, voltage and current signal output. (8) Strong anti-interference and long-term stability. (9) Variety of process connections are available. (10) Wide range of measurement. It can measure absolute pressure, gauge pressure and sealing reference pressure. (11) Anti-vibration and anti-impact. www.supmea.com... -
Page 7: Chapter 3 Dimension
Chapter 3 Dimension Chapter 3 Dimension P300 DIN connector type M12 connector type www.supmea.com... - Page 8 Chapter 3 Dimension Cable connector type (Current voltage output) Cable connector type (RS485 output) www.supmea.com...
- Page 9 Chapter 3 Dimension DIN connector type (RS485 output) P310 www.supmea.com...
- Page 10 Chapter 3 Dimension ● P300G PX300 P400 without display www.supmea.com...
- Page 11 Chapter 3 Dimension P400 with display P400G www.supmea.com...
-
Page 12: Chapter 4 Parameter
Chapter 4 Parameter Chapter 4 Parameter P300: (4~20)mA output:(10~32)V; (0~10)V output:(12~32)V; RS485 output:(8~32)V; P400 with display: Power Supply (4~20) mA output:(12~32)V; (4~20) mA+RS485 output:(10~32)V P400 without display: (4~20) mA output:(9~32)V (4~20)mA;(1~5)V; Output (0~10)V;(0~5)V;RS485 0.2%、0.25%、0.5% Accuracy Measurement range -0.1…0…60Mpa gauge pressure, adiabatic pressure... - Page 13 Chapter 4 Parameter Sensitivity ±0.3%FS/10℃ temperature drift (0.035~10)MPa (150%FS) Overload pressure (10~60)MPa (125%FS) Long-term stability ±0.2%FS/year RS485 output≤100ms（up to 90％ FS） Response time Current and Voltage output≤10ms （up to 90％FS） Insulation 20MΩ/250VDC Ingress protection IP65 Load Resistance (U-9V)/0.02A www.supmea.com...
-
Page 14: Chapter 5 Wiring
Chapter 5 Wiring Chapter 5 Wiring 5.1 DIN connector type Wiring of DIN connector type as follows: P300/ P310/ P300G/PX300 RS 485 output Current output Voltage output Power 485A 1 Power + 485B 2 Power - 3 RS 485 A... - Page 15 Chapter 5 Wiring P400/P400G Current output Voltage output RS485 output www.supmea.com...
-
Page 16: Cable Connector Type
Wiring of cable connector type as follows: Red Wire: 24V + Current: Green Wire: Current Output Red Wire: 24V + Voltage: Green Wire: 24V - Yellow Wire: Voltage Output Red Wire：24V + White Wire ： 24V - RS485： Green Wire：RS485+ Yellow Wire：RS485- www.supmea.com... -
Page 17: Chapter 6 Function & Setting(P400)
The way each click is displayed depends on the mode value that the software saved at the end.The display mode set on the panel will be cleared after the next power failure. www.supmea.com... -
Page 18: Definition
Press the keys again to confirm parameter modification, and the modified parameter stops flickering. "S" (1) Press shortly in the measurement mode to modify the display mode. (2) Press and hold in the measurement mode for 5 www.supmea.com... -
Page 19: Monitoring Menu
(2) RS485/RS485&4~20mA output: the entry password is "00016", which can be set as shown in table 1. Function setting (4~20mA output) Loc: password input menu, range can be set (19999 ~ 99999), www.supmea.com... - Page 20 For example: the calibration range of transmitter is 0.0000 ~ 20.000MPa;then the setting range of display precision is (0 www.supmea.com...
- Page 21 "0" - do not save the set value, and exit the set state, prompt "NSAVE" "1" - SAVE the set value and exit the set state, prompt "SAVE" Function setting (RS485 output /RS485 output &4~20mA output) RS485, range 1-25 www.supmea.com...
- Page 22 20mA output in the transmitter. The value of the pivot variable corresponding to 20mA is transferred, it will be used as the zero of the transform when the range is scaled, which determines the pressure point of 20mA output in the transmitter. www.supmea.com...
- Page 23 The modification of board card 4mA calibration is to observe the current of the external ammeter, and the modification of the data and adjustment of the ampere meter current can receive an accurate 4mA. www.supmea.com...
- Page 24 8.000， 12.000， 16.000， 20.000， 20.800，22.500mA current. This menu sets the output of the transmitter to be either linear or square root.The square root output is generally suitable for the flow calculation of differential pressure transmitters.For general, select linear output. www.supmea.com...
- Page 25 Chapter 6 Function & Setting (P400) This menu sets the output of the transmitter to be either linear or square root.The square root output is generally suitable for the flow calculation of differential pressure transmitters.For general, select linear output. www.supmea.com...
-
Page 26: Chapter 7 Installation
(5) If the pressure pipes are used in the transmitter, attention should be paid to that the strong corrosive or superheated media should not contact the transmitter, so as to prevent the sediment from precipitating in the www.supmea.com... - Page 27 When measuring steam or other high temperature medium, the working temperature of the transmitter should not exceed the limit. When used for steam measurement, the pressure pipes should be filled with water to prevent the transmitter from contacting directly with the steam. www.supmea.com...
-
Page 28: Chapter 8 Safety Instructions
(3) Transmitters must be used according to specifications, and different types cannot be interchanged. (4) Transmitter range can be reduced, but the upper limit of range must not be exceeded 1.5 times of the range. www.supmea.com... -
Page 29: Chapter 9 Cautions
(5) The water can not enter the back-end lead of the sensor. (6) When using, please strictly follow the precautions, otherwise the consequences are at your own risk. www.supmea.com... -
Page 30: Chapter 10 Warranty & After-Sales Service
We promise to deal with the customer's technical questions within 2 hours. For the instruments returned to the factory for maintenance, we promise to issue the test results within 3 working days and the maintenance results within 7 working days after receiving them. www.supmea.com...
