- Page 1 User's Manual Digital pressure gauge Headquarters 5th floor,Building 4,Singapore Hangzhou Science Technology Park, No. 6 street,Hangzhou Economic Development Area, Hangzhou 310018,China Singapore / Philippines info@supmea.com www.supmea.com U-P3.1-MYEN6 Supmea Automation Co.,Ltd.
- Page 2 Preface Thank you for purchasing digital pressure gauge. Please read this manual carefully before operating and using it correctly to avoid unnecessary losses caused by false operation. Note Modification of this manual’s contents will not be notified as a result of some factors, such as function upgrading.
- Page 3 Disclaimer Please confirm the product and information after unpacking. Please contact us if the product is wrong, or the quantity is incorrect or the appearance is damaged. Package contents Item Name Digital pressure gauge Manual Certificate Note When the backlight is not required, please turn off the ...
-
Page 4: Table Of Contents
Contents Chapter 1 Introduction.............. 1 1.1. Features................ 2 Chapter 2 Parameters.............. 3 Chapter 3 Display & Button............4 Chapter 4 Calibration..............6 Chapter 5 The peak save function.......... 6 Chapter 6 Dimension & installation.........7 Chapter 7 Note................8 Chapter 8 Warranty & After-sales Service......9... -
Page 6: Chapter 1 Introduction

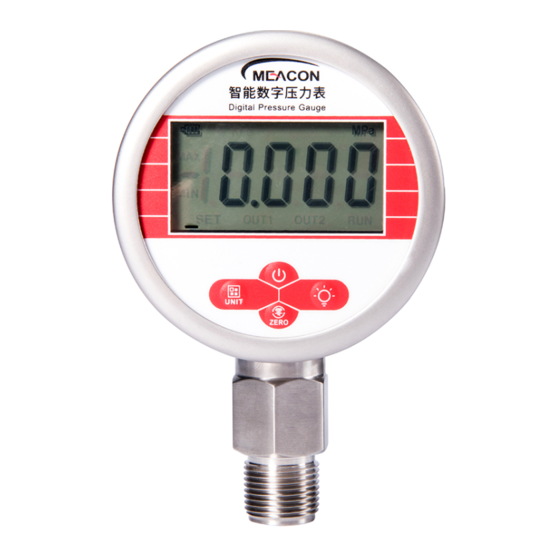

The intelligent digital pressure gauge apply to portable pressure measurement, match with equipment, calibration equipment and other pressure measurement areas. - 1 - www.supmea.com... -
Page 7: Features
Four-digit half-segment display, accurate and intuitive. The battery power is graphically displayed, and the pressure value percentage meter bar graph display. Backlight for easy viewing at night. This product uses 2 AAA batteries for power supply. - 2 - www.supmea.com... -
Page 8: Chapter 2 Parameters
Battery Life condition of use ） Sampling 3times/second frequency Backlight color White Air, water, oil and other non-corrosive Measuring medium media on stainless steel Peak record Case material 304 stainless steel Interface material 304 stainless steel - 3 - www.supmea.com... -
Page 9: Chapter 3 Display & Button
Chapter 3 Display & Button Chapter 3 Display & Button On/off Press to switch unit Press and hold for 3 seconds to calibrate the zero point error Press to turn on/off the backlight,hold the press to keep the backlight on - 4 - www.supmea.com... - Page 10 Chapter 3 Display & Button Symbol Meaning kPa 、 psi 、 kgf/cm2 、 bar 、 MPa Pressure unit Maximum pressure Minimum pressure Battery power - 5 - www.supmea.com...
-
Page 11: Chapter 4 Calibration
"Unit" key briefly to switch the display minimum MIN and press the unit to exit the record again. When the MAX or MIN value is displayed, press the "Clear" key for 3 seconds to record clearly and restart the recording data. - 6 - www.supmea.com... -
Page 12: Chapter 6 Dimension & Installation
When there is no pressure but the pressure value is displayed, please press the "Zero" key to calibrate zero error Before installing the product, check whether the pressure gauge is clean, and keep the pipeline clean during use. - 7 - www.supmea.com... -
Page 13: Chapter 7 Note
It may be affected by the installation stress in the installation process , after installation, please clear before use. If there is an abnormal phenomenon, unless you have product adjustment equipment and skills, or please contact the company's after-sales technical staff. - 8 - www.supmea.com... -
Page 14: Chapter 8 Warranty & After-Sales Service
If the design, manufacture and other reasons of the products caused by the main function does not meet the standards and the requirements of the contract, the customer requires to return the product, we will return the customer payment. - 9 - www.supmea.com...
