① Thermal window
② Current monitoring terminal
③ AC
power input
included)
IT8513G+/IT8513BG+/IT8513CG+ Model
① Thermal window
② Current monitoring terminal
③ AC
power input
included)
⑦ Sense measurement terminal

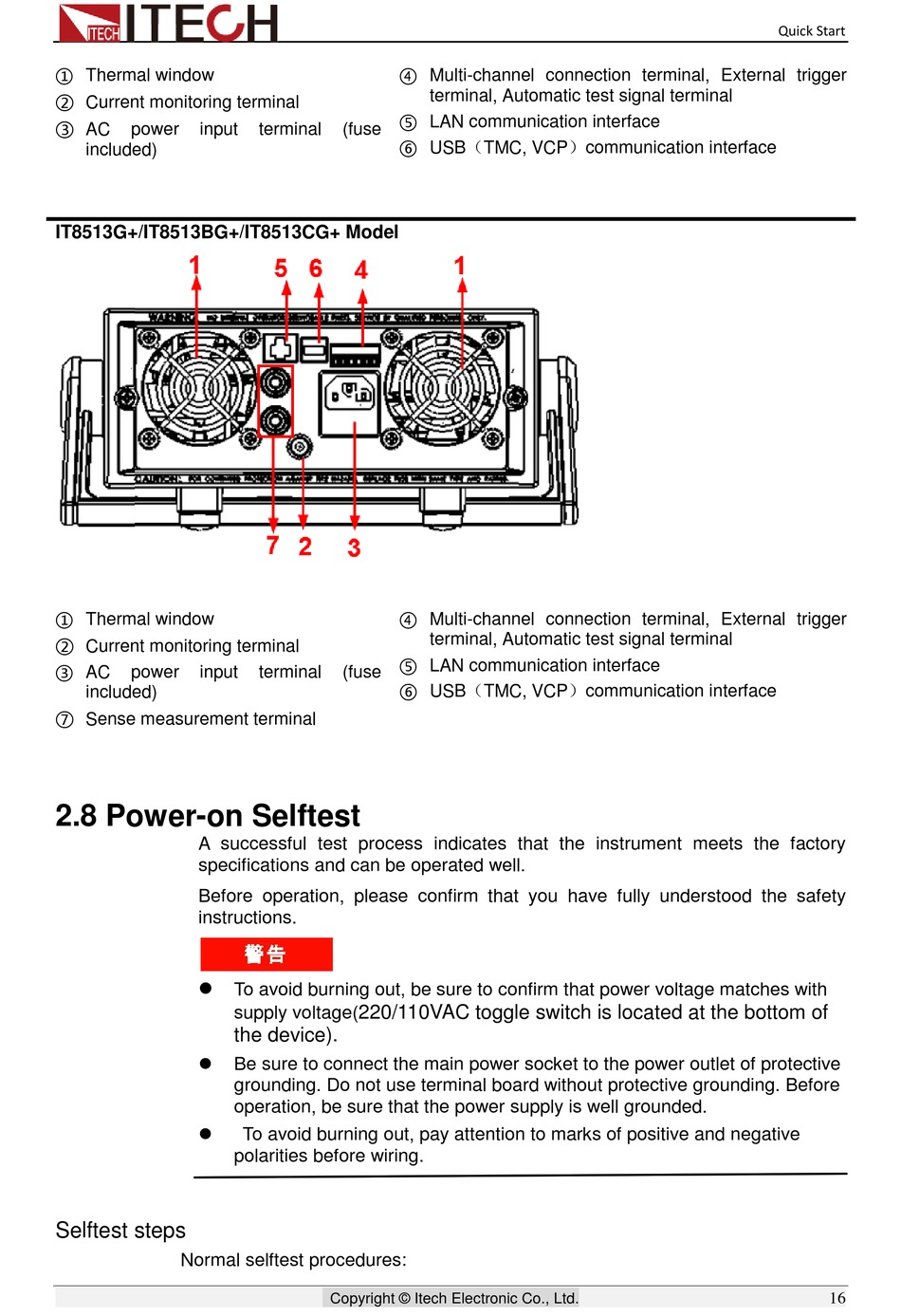

2.8 Power-on Selftest

A successful test process indicates that the instrument meets the factory
specifications and can be operated well.
Before operation, please confirm that you have fully understood the safety
instructions.



Selftest steps
Normal selftest procedures:
④ Multi-channel connection terminal, External trigger
⑤ LAN communication interface
terminal (fuse
⑥ USB（TMC, VCP）communication interface
④ Multi-channel connection terminal, External trigger
⑤ LAN communication interface
terminal (fuse
⑥ USB（TMC, VCP）communication interface
To avoid burning out, be sure to confirm that power voltage matches with
220/110VAC toggle switch is located at the bottom of
supply voltage(
the device).
Be sure to connect the main power socket to the power outlet of protective
grounding. Do not use terminal board without protective grounding. Before
operation, be sure that the power supply is well grounded.
To avoid burning out, pay attention to marks of positive and negative
polarities before wiring.
