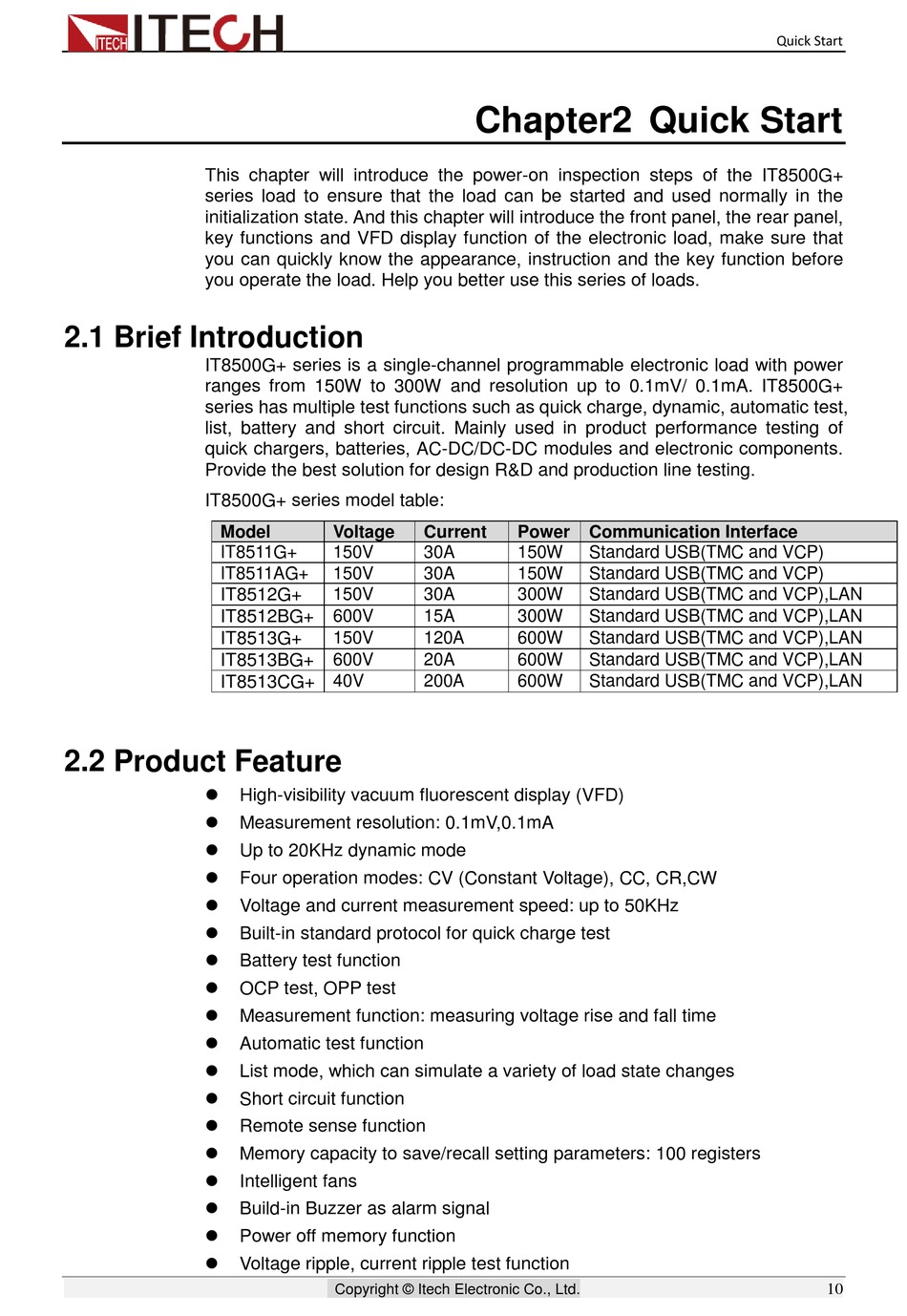

This chapter will introduce the power-on inspection steps of the IT8500G+

series load to ensure that the load can be started and used normally in the

initialization state. And this chapter will introduce the front panel, the rear panel,

key functions and VFD display function of the electronic load, make sure that

you can quickly know the appearance, instruction and the key function before

you operate the load. Help you better use this series of loads.

2.1 Brief Introduction

IT8500G+ series is a single-channel programmable electronic load with power

ranges from 150W to 300W and resolution up to 0.1mV/ 0.1mA. IT8500G+

series has multiple test functions such as quick charge, dynamic, automatic test,

list, battery and short circuit. Mainly used in product performance testing of

quick chargers, batteries, AC-DC/DC-DC modules and electronic components.

Provide the best solution for design R&D and production line testing.

IT8500G+ series model table:

Model

IT8511G+

IT8511AG+

IT8512G+

IT8512BG+ 600V

IT8513G+

IT8513BG+ 600V

IT8513CG+ 40V

2.2 Product Feature



Voltage

150V

High-visibility vacuum fluorescent display (VFD)

Measurement resolution: 0.1mV,0.1mA

Up to 20KHz dynamic mode

Four operation modes: CV (Constant Voltage), CC, CR,CW

Voltage and current measurement speed: up to 50KHz

Built-in standard protocol for quick charge test

Battery test function

OCP test, OPP test

Measurement function: measuring voltage rise and fall time

Automatic test function

List mode, which can simulate a variety of load state changes

Short circuit function

Remote sense function

Memory capacity to save/recall setting parameters: 100 registers

Intelligent fans

Build-in Buzzer as alarm signal

Power off memory function

Voltage ripple, current ripple test function
