Thank you for purchasing a 4x2
Garden Chalet. Please take the time
to identify all the parts prior to
assembly.
Please use Safety Eyewear and Gloves
while Assembling. Be sure to read and
follow all operating instructions for any
tools used during assembly.
Remember- NO SAW CUTTING IS
REQUIRED!
Safety Points and Other Considerations
Our products are built for use based on
proper installation and normal residential
use, on level ground.
Please follow the instruction manual when
building your Grand Garden Chalet and
retain the manual for future maintenance
purposes.
Some of the safety and usage measures
you may wish to consider include:
-If the product is elevated, any structural
and building code requirements are solely
the customer's responsibility, and should
be abided by.
-In high or gusty wind conditions it is
advisable to keep the structure securely
grounded.
-Have a regular maintenance plan to ensure
screws, doors, roof and parts are tight.
In the event of a missing or broken piece, simply call the Outdoor Living Today
Customer Support Line @ 1-888-658-1658 within 30 days of the delivery of your
purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be
provided free of charge after the 30 day grace period.
Outdoor Living Today
Garden Chalet 4X2
Assembly Manual
www.outdoorlivingtoday.com
Page 1
Revision #8
June 11th, 2012

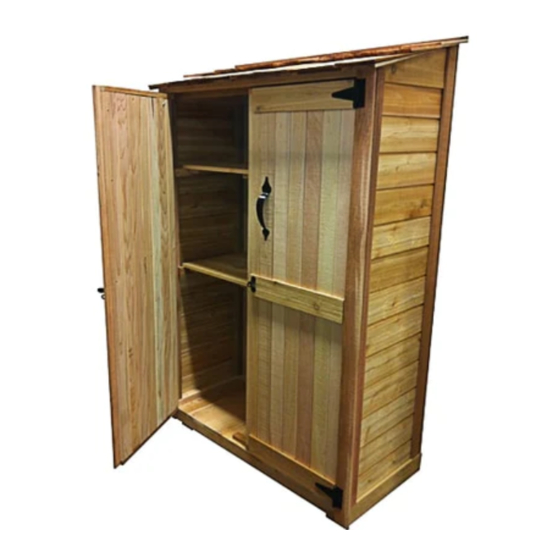

4x2 Garden Chalet Dimensions:
A: Outside Height (Rear) =73 3/4"
B: Outside Height (Front) = 67 3/4"
C: Outside Width =48"
D: Outside Depth =23 1/4"
E: Door Width = 40"
F: Door Height = 61 1/4"
G: Inside Height (Rear) =67"
H: Inside Height (Front) =61"
I: Inside Width =44"
J: Inside Depth =20"
sales@outdoorlivingtoday.com
Advertisement
Related Manuals for OLT Garden Chalet 4X2
Summary of Contents for OLT Garden Chalet 4X2
- Page 1 Revision #8 June 11th, 2012 Garden Chalet 4X2 Assembly Manual Thank you for purchasing a 4x2 Garden Chalet. Please take the time to identify all the parts prior to assembly. Please use Safety Eyewear and Gloves while Assembling. Be sure to read and follow all operating instructions for any tools used during assembly.
- Page 2 Exploded View and Parts List for 4’x2’ Garden Chalet Not Shown: Interior Door Stop Interior Silver Barrel Bolt Shingle Spacing Template Parts List Floor Section Trim Section 1 - Floor Section - 20 1/2” x 45” x 2 1/2” 2 - Front Corner Door Trims - 1/2” x 2 1/2” x 65 1/2” 4 - Floor Legs - 1 1/2”...
-
Page 3: Hardware Kit
4x2 GARDEN CHALET HARDWARE PACKAGE Hardware Kit 3/4” (Provided) Silver Note: screws and nails shown actual size. 3/4” Black 2 1/2” 1 1/4” Finishing 1 1/4” 7/8” Shingle 1” Square Drive Bit 2” Black 1 1/2” Bolt with Black Head, Silver Nut and Washer (I) Tee Hinge x4 (DD) Door Handle X 2 (EE) Barrel Bolt... - Page 4 You can find the Square Drive Bit for the screws in with the Hardware Kit Bag. Flip Floor (A) over on a level surface. Locate Legs (B) and position in each corner tight to floor and framing and attach with 2- 2 1/2” screws. Complete all Leg attachments. Flip Floor over and complete Leg attachments by screwing 1 - 2 1/2”...
- Page 5 Align Rear Wall flush to floor at the back and wall framing of Side and Rear Walls together. Wall Framing aligned together. approx. 1/2” gap Do Not Attach Walls To Floor until Step 8. Wall Frames aligned Rear Wall Siding Flush with Floor at back.
- Page 6 Position right Side Wall Panel on Floor as per Step 2-4. With Side Wall Panel correctly aligned, attach Rear and Side Wall together at top, middle and bottom of vertical wall frames with 3 - 2 1/2” screws. Optional - Caulking seams will help prevent moisture from entering at seam.
- Page 7 Aligned flush at front and top Door Header (E) Dado cut to front, facing down. Locate Door Header (E) and place between Side Wall framing with dado cut facing down and to the front. You will want Front Corner Trim (P) to cover screws in Step 24.
- Page 8 Locate both Angle Cut Gable Siding Pieces (G). There are left and right side pieces. Starting with the left side, place above Side Wall so lap sidings fit together. Plywood Roof and Angle Cut Gable Siding Flush with each other. Siding aligned at rear...
- Page 9 Front Corner Door Trims (H) Side Wall Frame. Trim Flush to Flush with bottom of Floor 2x2 Side Wall frame Locate Front Corner Door Trims (H). Position flush with Side Wall framing and flush with bottom of Floor. Attach with 8 - 1 1/4”...
- Page 10 1/8” 1 - 2” screws per Hinge initially. 1/8” gap Shim with Shingle Leave a gap on left side and bottom of Gap between Door approximately 1/8”. Use a shingle to shim the door at bottom to help position Top of Door door evenly.
- Page 11 Flange may need 2 additional 1” screws from front to strengthen. Open Left Door and position Door Flange (K) flush against Door Flange (K) Horizontal Door Trim making sure also to align evenly at top and to be positioned bottom of Door Trim. From the inside screw Flange to door with 4 - 1” on Left Door.
- Page 12 Filler Trims (O) Filler Trims (O) or nailing strips are positioned in rear side corners. There are 2 Fillers per rear corner. Starting with Lower Trim, position flush to bottom of Side Skirting and nail with 3 - 1 1/4” nails. Place 2nd Filler Trim directly above and secure with 3 - 1 1/4”...
- Page 13 Place Center Rear Trim (S) over Rear Wall Seam. Trim should sit flush Center at bottom with Skirting. When correctly Rear Trim aligned, secure with 8 - 1 1/4” nails. Flush with Bottom Skirting Front Door Header Trim (T) Locate Front Door Header Trim (T) and place between Corner Door Trim flush against Door Header and Plywood Roof.
- Page 14 Important- 3 Extra 5 1/2” Butt (thick) end of wide Shingles shingle will be facing and 2 - 2 3/4” towards front are included in kit. Locate 16” long x 5 1/2 and 2 3/4” wide Shingles (V, W). Starting with a 5 1/2” wide Shingle on the left side, align first Shingle on front left corner to overhang the Front Door Header Trim and Front / Side Corner Trim by 1 1/2”.
- Page 15 3rd Row of Shingles 2 3/4” Shingle Spacing Template Choose remaining 2nd row of Tack Shingle Spacing Template 5 1/2” wide Shingles and place on top (7 1/2” high) with 2 - 7/8” shingle nails flush with of 1st row. Position and secure as per front of shingles.
- Page 16 Roof Ridge Cap (Z) Center Roof Ridge Cap (Z) from side to side on the rear roof shingles. Overhang the Ridge Cap slightly off the back of the shingles. Secure with 4 - 2 1/2” screws. Be sure to screw through the Ridge Cap and into Rear Wall framing.
- Page 17 Shelf Support (BB) Locate 1 Shelf Support (BB) and position on Vertical Shelf Support and Rear Wall framing. Drill pilot hole in Shelf Support to Positioned 3/4” prevent splitting and attach with 1 - 1 1/4” screw on each end. on Side Wall Note - Make sure Shelf Support is level prior to attaching.
- Page 18 Attach Interior Door Stop to Floor with 2 - 1 1/4” screws. To align correctly, close Doors in best close Door position. Mark and attach. Drill pilot holes to prevent splitting. Mark first and then drill hole with 3/8” bit. Install 3/4”...
- Page 19 Congratulations on building your 4x2 Garden Chalet! Note; Our Sheds are shipped as an unfinished product. If exposed to the elements, the western red cedar lumber will weather to a silvery-gray color. If you prefer to keep the cedar lumber looking closer to the original color, we suggest that you treat the wood with a good oil base wood stain.
