Summary of Contents for sauermann DBM 620

  • Page 3: Table Of Contents

    5 Means for software use........................6 6 Recommendations..........................6 7 Cleaning the device..........................6 8 Connect the DBM 620 housing to the adjustment tool...............7 9 Instructions............................8 9.1 Connections to perform before setting the device...............8 9.2 Get the access code and detect the DBM620................8 9.3 Get the adjustment key........................9...

  • Page 4: Safety Instructions

    • If the device falls or in case of similar inconveniences, or if an irregular malfunction appears, please send back the device to Sauermann After-sales service for a technical check and to ensure your own safety. 1.2 Symbols used For your safety and in order to avoid any damage of the device, please follow the procedure...
  • Page 5 • Dimensions : ◦ Length: 110 mm ◦ Width: 78 mm (without connections); 92.5 m (with connections) ◦ Height: 60.7 mm (without Tag-Connect; 67 mm (with Tag-Connect) • Weight: 115 g • Standards and Directives: 2014/30/EU EMC, RoHS 2011/65/EU (EU)2015/863 Tool presentation...

  • Page 6: Description

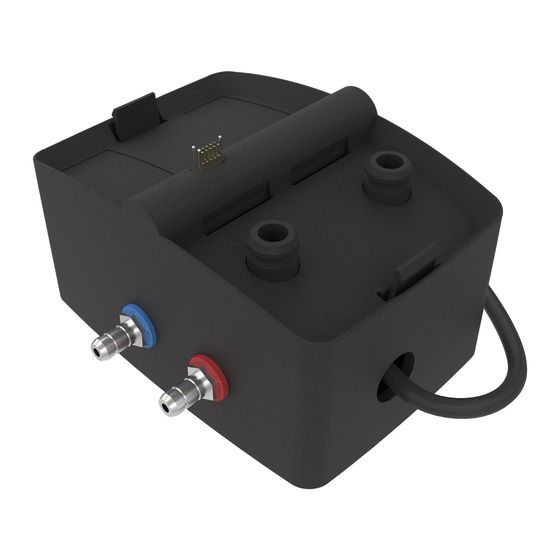

    4 Description 1. TAG connect 2. Connecting plugs 3. Negative pressure connection 4. Positive pressure connection 5 Means for software use ➢ Means adapted for adjusting: see the annex of this manual. ➢ Means adapted for device correction: calibration certificate or calibration means. 6 Recommendations ➢...

  • Page 7: Connect The Dbm 620 Housing To The Adjustment Tool

    ➢ Put back the battery pack then the battery cover on the DBM 620 housing. ➢ Put the DBM 620 housing on the DBM 620 adjustment tool by matching the connections (see picture below). Connect the DBM 620 housing to the adjustment tool...

  • Page 8: Instructions

    ➢ The DBM 620 housing is properly connected to the DBM 620 adjustment tool, the LED of the DBM 620 lights up red. 9 Instructions 9.1 Connections to perform before setting the device ➢ Connect the adjustment tool to the computer with the USB-mini-Din cable.

  • Page 9: Get The Adjustment Key

    There is an installation code on this window. This code is generated when installing the software on the computer. ➢ Note this installation code. ➢ Contact Sauermann and give this code. Sauermann will give you an access code. Once the access code is entered and validated, click “DBM 620”: The following window opens: ➢...
  • Page 10 ➢ Click on “New code” to generate a new adjustment key. The software displays a 15-digit code, which will be used to generate an adjustment key. There are two possibilities to get a key: ➢ Through your distributor: order from specifying operation performed.

  • Page 11: Adjust The Instrument

    ➢ Enter supplied adjustment code on the field “Adjustment code”. ➢ Select the type of intervention: • Correction • Adjustment • Adjustment and correction ➢ Click GO to validate, an adjustment key is generated. ➢ Enter this adjustment key in the “Adjustment key” field of the DBM 620 Configurator then press “Validate”.
  • Page 12 ➢ Generate the point(s). ➢ Modify the value of the point if necessary. ➢ Click on OK to go to the following point. When the last point has been validated, the adjustment is completed. Instructions...

  • Page 13: Description Of Various Adjustments

    10 Description of various adjustments 10.1 Pressure 10.1.1 Atmospheric pressure adjustment ➢ Select the adjustable channel “Atmospheric pressure” and validate with “Perform adjustment”. ➢ Enter the atmospheric pressure value of the day. ➢ Validate with OK. ➢ Wait a few seconds the validation of the point. 10.1.2 Pressure adjustment ➢...

  • Page 14: Calibration

    11 Calibration The calibration part allows to read the measurements for the following parameters: • Pressure • Atmospheric pressure ➢ Click “Calibration” on the left. The following window opens ➢ Select the channel measurement. ➢ Click “Start measurement”. Calibration...
  • Page 15 The following window opens: Values and counts are displayed. ➢ Click “Stop reading” to stop the measurement values reading. Calibration...

  • Page 16: Adjustment Means

    12 Adjustment means 12.1 Atmospheric pressure You only need to let the DBM620 on open air for the atmospheric pressure adjustment. 12.2 Pressure ➢ Means: dynamic pressure generator from 0 to 2,5 bar (such a GP 500 pressure generator) ➢ Setpoints to be performed: 0, 1250, -1250, -2500 and 2500 Pa. ➢...
  • Page 19 Adjustment means...
