Summary of Contents for sauermann SI-AQ PRO

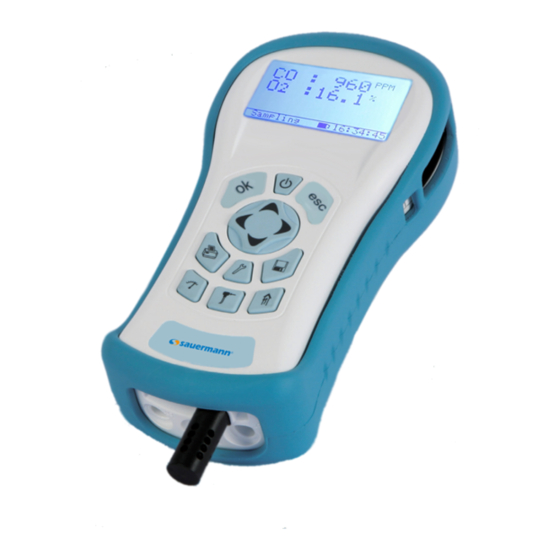

- Page 1 USER MANUAL SI-AQ PRO MULTIFUNCTIONAL PORTABLE INDOOR AIR QUALITY MONITOR www.kimo-instruments.com...
-
Page 2: Table Of Contents
CHAPTER 3 - BASIC INSTRUMENT OPERATION ................9 CHAPTER 4 - POWER REQUIREMENTS ..................11 CHAPTER 5 - SENSORS - TECHNICAL ..................12 CHAPTER 6 - SI-AQ PRO SETUP ....................16 CHAPTER 7 - INTERNAL DATA STORAGE ................. 18 CHAPTER 8 - WIRELESS REMOTE PRINTER ................20 CHAPTER 9 - ZERO &... -
Page 3: Chapter 1 - Technical Specifications & Safety Guidelines
CHAPTER 1 TECHNICAL SPECIFICATIONS & SAFETY GUIDELINES SI-AQ PRO - AIR QUALITY MONITOR 1. PHYSICAL Material: White ABS plastic case with Rubber Magnetic Boot Dimensions (monitor): 8.6 x 3.9 x 2 inches: 220 x 100 x 52 mm (H x W x D) Weight: (monitor): 1.6 lbs. - Page 4 SENSORS 1. AIR QUALITY SENSORS – ELECTROCHEMICAL SENSOR RANGE RESOLUTION ACCURACY* CARBON MONOXIDE (CO) Std Range 0 - 200 ppm 0.1 ppm ±4 % rdg ±0.5 ppm Std Range OXYGEN (O 0 - 25% 0.1% 0.1% vol. rdg NITRIC OXIDE (NO) Std.
- Page 5 MODEL SI-AQ PRO – SAFETY GUIDELINES This section provides general rules which must be followed for product safety, avoiding personal injury, damage to equipment and preserving the manufacturer’s warranty. Please take care to carefully observe the following instructions. PRODUCT SAFETY INSTRUCTIONS: NOTE: Please take special care when performing Span Calibration of the monitor.
- Page 6 Complies with EN61326-1, Portable Equipment The Sauermann SI-AQ PRO Indoor Air Quality Monitor is a battery-operated Portable device designed to be used by a qualified engineer/technician to make measurements in buildings and residential facilities. For long-term testing, you may operate the unit connected to the supplied charger by carefully following the product safety instructions in Section A above.
-
Page 7: Chapter 2 - Introduction
A. UNPACKING THE INSTRUMENT & PARTS IDENTIFICATION SAUERMANN SI-AQ PRO kits include as standard equipment: • IAQ Monitor Model SI-AQ PRO with Temp, %RH, Dew point Temp, WBT, Barometric Pressure, Differential Pressure and Differential Temperature • Internal Continuous Sampling Pump •... - Page 8 LIST OF ABBREVIATIONS PARAMETERS Carbon Dioxide Carbon Monoxide Ambient (room) Air Temperature Percentage of Relative Humidity Dew Point Temperature Wet Bulb Temperature Oxygen Barometric Pressure Hydrogen Sulfide Formaldehyde Nitric Oxide Nitrogen Dioxide Oxides of Nitrogen Sulfur Dioxide Air / Gas Velocity (measurement with optional pitot tube) ∆P Differential Pressure (with Velocity Probe turned OFF) Thermocouple Type K Temperature (T1 Input)
-
Page 9: Chapter 3 - Basic Instrument Operation
B. Large fonts (four data parameters displayed simultaneously) Note: The SI-AQ PRO allows the user to ZOOM in and out of the screen by changing from Small to Large Fonts using the MEASURE key. Press Measure key again to zoom back out. - Page 10 INSTRUMENT OPERATION OVERVIEW SI-AQ PRO STARTING INSTRUCTIONS 1. Turn the SI-AQ PRO on by pressing the POWER key. The instrument’s internal pump will immediately turn on and the SAUERMANN logo will appear. The instrument will begin to draw in air from the center SAMPLE IN inlet “A” at the bottom of the unit.
-
Page 11: Chapter 4 - Power Requirements
CHAPTER 4 POWER REQUIREMENTS The Sauermann SI-AQ PRO Indoor Air Quality Monitor is a battery-operated Portable device designed to be operated by a qualified engineer/technician to make measurements in buildings and residential facilities. For long-term testing please carefully follow the product safety instructions in Chapter 1. -
Page 12: Chapter 5 - Sensors - Technical
CHAPTER 5 SENSORS -TECHNICAL The great versatility of the SI-AQ PRO Air Quality monitor is partly due to the large number of sensors available within a single monitor. These sensors are primarily gas sensors and can be grouped into four categories based on their principle of operation: 1. - Page 13 1. ELECTROCHEMICAL SENSORS All electrochemical sensors are mounted on fitted socket fittings for easy installation and removal. The electrochemical sensors are described below: A. Nitrogen Dioxide sensor (NO This is a three-electrode sensor that responds to nitrogen dioxide gas. Nitrogen dioxide is a “sticky” gas and this sensor’s response is usually the slowest of all sensors.
- Page 14 (IR). The SI-AQ PRO Air Quality Monitor is equipped with one standard NDIR infrared sensor capable of CO measurement (standard range: 0 - 5000 ppm). This infrared sensor can be substituted for higher CO ranges upon special request.
- Page 15 3. NON-GAS SENSORS a. Ambient Temperature sensor This is a solid state sensor located on the front panel of the monitor. The ambient temperature is displayed on the MEASURE screen in either °F or °C. The dew point is calculated from the ambient temperature and relative humidity. The dew point is displayed on the Small and Large Font MEASURE screens as DPt.
-
Page 16: Chapter 6 - Si-Aq Pro Setup
CHAPTER 6 SI-AQ PRO SETUP The SETUP MENU allows the operator to change the instrument’s parameters. 1 ‘14 12:45:00 Temperature Units: F Measure Units: Pressure Units: mbar Pumps: AUTO 750cc/m Velocity Probe: Velocity Units: Duct Size: 0 in Display Contrast: 24... - Page 17 & accurate Air Flow measurements in m/s or m /min. NOTE: When using the Velocity Feature on the SI-AQ PRO it is recommended to ZERO the readings BEFORE using the Pitot tube to ensure proper Velocity measurements. See Chapter 9 for instructions on Zeroing the SI-AQ PRO.
-
Page 18: Chapter 7 - Internal Data Storage
Erase Buffers 00: TAG#00 The SI-AQ PRO has 2000 internal storage tags/memory spots. Each tag stores one complete set of air quality data. There are two ways to store air quality data to the monitor’s buffer. You can either store data by selecting the option STORE CURRENT DATA after pressing the STORE key, or alternatively you can make use of the monitor’s capability of storing data automatically on a periodic basis. - Page 19 7. NAME BUFFERS: This choice will take you to another screen *** NAME BUFFERS *** where you can rename one or more tags. This is useful if Starting Tag: 00 you use several tags together to form a test series. Select Ending Tag: the starting test index with the UP / DOWN / LEFT / Name:xxxxxxxxxxxxxxxx...
-
Page 20: Chapter 8 - Wireless Remote Printer
CHAPTER 8 WIRELESS REMOTE PRINTER The SI-AQ PRO uses an optional wireless Bluetooth remote printer. The printer ® is powered by a rechargeable battery. An AC charger is supplied with the printer. First you must turn the printer on. Then press PRINT to scan and connect with your wireless printer to establish communications between the monitor and the printer. - Page 21 ** EDIT HEADER INFO * EDIT CUSTOMER NAME: This will display a screen where you can SAUERMANN SI-AQ PRO change the information printed at the top of each printout. Usually the customer’s name or the operator’s name appears here. To edit this information, use the UP / DOWN / LEFT / RIGHT keys to navigate 1 2 3 4 5 6 7 8 9 0 ◄...
-
Page 22: Chapter 9 - Zero & Span Calibration
If the unit is returned to Sauermann for Span Calibration, the unit will be shipped back after Calibration with a new Calibration Certificate valid for one (1) year. If the unit is Span Calibrated in the field, the original calibration certificate is no longer valid. - Page 23 If you have a gas cylinder/bottle of ZERO AIR you can use this for Zeroing ALL of the gas sensors in the SI-AQ PRO. If you do not have this cylinder, please contact Sauermann to purchase our optional Calibration Kit consisting of ZERO AIR & regulator for proper calibration of the SI-AQ PRO (part #: Si- AQ Calibration Kit).
- Page 24 Press the OK key to execute a zero cycle of all the gas sensors. This procedure should last 60 seconds. At the end of the zero period, the SI-AQ PRO reads the output of all gas sensors (with the exception of...
- Page 25 At the end of the zero period the SI-AQ PRO reads the output of all gas sensors (with the exception of the CO sensor) and sets them all to zero, with the exception of the Oxygen (O ) that it sets to 20.9%.
- Page 26 A compressed cylinder of span gas must be equipped with a primary pressure regulator. Connect the regulator of the bottled gas to the SI-AQ PRO “A” inlet in the center port on the bottom of the unit. A simple way to feed the span gas to your monitor is by an open T-connection that will ensure that gas is fed at ambient pressure.
- Page 27 ZERO AIR Gas Bottle Calibration: T – for proper air/pressure flow Gas Hose from Cylinder connects to Center “A” Inlet on Bottom of Si-AQ Pro for Span Calibration Page 27 of 40...
- Page 28 PRO. It is assumed that the instrument has been zeroed and there have been no error messages. Electrochemical Gas Sensors 1. Turn the SI-AQ PRO on and press Measure. Allow the instrument to warm up for 15 minutes before beginning the calibration procedure.
-
Page 29: Chapter 10 - Si-Aq Pcsoft Software
CHAPTER 10 SI-AQ PCSOFT SOFTWARE COMMUNICATIONS The SI-AQ PRO Monitor communicates with a PC either using the USB cable or wirelessly using its internal Bluetooth (BT) module. If your computer does not have internal BT capabilities, use the ® external BT module that is supplied with the SI-AQ PRO... - Page 30 2. On the next screen, select “Enter the device’s pairing code” and click Next. 3. Enter the pairing code “1234” or “0000” (four zeros) into the empty field & click Next. Page 30 of 40...
- Page 31 4. Paring will complete and the PC to instrument communication drivers will be automatically installed. ALL CONNECTIONS When you connect your SI-AQ PRO to your computer for the first time, the connection will be assigned a unique comport number. Remember the...
- Page 32 USING SI-AQ PCSOFT SOFTWARE You can enhance the performance and versatility of the SAUERMANN SI-AQ PRO by using the SI-AQ PCSOFT software program. SI-AQ PCSOFT is available for most Windows operating systems. The SI-AQ PCSOFT software is a robust package that allows you to: 1.
- Page 33 STARTING SI-AQ PCSOFT Before starting SI-AQ PCSOFT, have your SI-AQ PRO turned on and connected via USB or Bluetooth ® Start the SI-AQ PCSOFT Software program. If you have connected before, the monitor icon will automatically appear. If this is the first time you are connecting, you will need to add a new port.
-
Page 34: Chapter 11 - Maintenance
CHAPTER 11 MAINTENANCE The SI-AQ PRO Indoor Air Quality Monitor is a sophisticated analytical instrument designed to perform accurate air quality measurements. However, because the monitor is a portable, field/lab used instrument that can be used in many environments, care must be taken to prevent physical and environmental abuse to help maintain trouble-free operation. -
Page 35: Chapter 12 - Si-Aq Pro Options
CHAPTER 12 SI-AQ PRO OPTIONS The SAUERMANN’ SI-AQ PRO is an extremely versatile Indoor Air Quality (IAQ) measurement system that meets many Air Quality measurement requirements. It has been designed as a modular system, permitting the installation of most of the various available options. This manual describes the complete instrument equipped with all the options. - Page 36 The printer is powered ® by a rechargeable battery. An AC charger is supplied with the printer. The printer is optional with the SI-AQ PRO. See Chapter 7 for more information 6. OPTIONAL CALIBRATION KIT (ZERO AIR) (Part #: Si-AQ Calibration Kit) The SI-AQ PRO uses a bottled Cylinder of ZERO AIR for ZERO Calibration.
-
Page 37: Chapter 13 - Basic Troubleshooting
Charge battery, wait up to 24 destabilized. hours for sensors to stabilize, and re-zero. Sensor cell life has expired. Call SAUERMANN replacement. Temperature Thermocouple Thermocouple is not connected Check electrical connections running to the probe Infrared CO No response from infrared... -
Page 38: Chapter 14 - Replacement Parts
CHAPTER 14 REPLACEMENT PARTS PART NUMBER DESCRIPTION Si-AQ O2 Cell (0-25%) Sensor (0-25%) Si-AQ CO Cell (0-200 ppm) CO Sensor (0-200 ppm) Si-AQ NO Cell (0-250 ppm) NO Sensor (0-250 ppm) Si-AQ NO2 Cell (0-20 ppm) Sensor (0-20 ppm) Si-AQ SO2 Cell (0-20 ppm) Sensor (0-20 ppm) Si-AQ H2S Cell (0-100 ppm) S Sensor (0-100 ppm) - Page 39 Page 39 of 40...
- Page 40 BE CAREFUL! Material damages can happen, so please apply the precautionary measures indicated. Once returned, required waste collection will be assured in the respect of the environment in accordance to guidelines relating to WEEE. www.kimo-instruments.com Page 40 of 40...
