The RE667-Pro Slimline Touchpad
for controlling the security system. It is AC powered and
communicates with the panel wirelessly.
Features
• Vibrant 7'' Android™ tablet display
• Provides local control of security and automation functionality
• Wall or table mounted
• Encrypted, Connect+™ and BAT-Connect™ enabled, battery-
backed Wi-Fi™ connection
Installation Overview for Connect+
1. Confirm the panel has a Wi-Fi DeviceLink card installed.
Note: DeviceLink hardware must be version D00 or newer. DeviceLink firmware must be
v0.6.6.0 or newer.
Installing the Wi-Fi DeviceLink Card
• Disconnect the panel's AC power and backup
battery.
• Install the Wi-Fi DeviceLink card in Slot 2 by
carefully aligning the nylon retention posts and
the 8-pin connector while pushing the card
firmly until all posts are fully seated.
• Reconnect the panel's AC power and backup
battery.
• Verify the Wi-Fi card LEDs are on.
2. Choose a mounting location. Touchpad can be mounted on a wall or tabletop.
3. Identify your network and verify signal strength before mounting it permanently.
1. Ensure the panel is powered.
2. Power the Touchpad by applying AC power.
3. Select the "Connect" option to see the available networks. If the "Connect" option is
not available, press "Setup" then "Factory Default". The Touchpad can be connected to
either the Wi-Fi DeviceLink card or the home router. Connecting to the home router will
give the Touchpad access to the internet which is required for camera control, weather
updates, and the ability to modify users.
4. Once a network is determined, verify the signal strength. If the signal strength displayed
is less than 35, relocate the Touchpad or Connect+ panel. If neither options are
available, install an RE621 Touchpad Range Extender.
Note: If connecting to a home network router, the Connect+ needs to be connected
to the same network via ethernet. The Touchpad cannot connect to the panel over an
unsecured or open network.
RE667-Pro Slimline
Touchpad
is an intuitive interface
DeviceLink Card manual
AC
Power
Input
I
Scan QR code for Wi-Fi
Slot
2
Backup
Battery
Advertisement
Table of Contents
Related Manuals for Alula RE667-Pro
Summary of Contents for Alula RE667-Pro

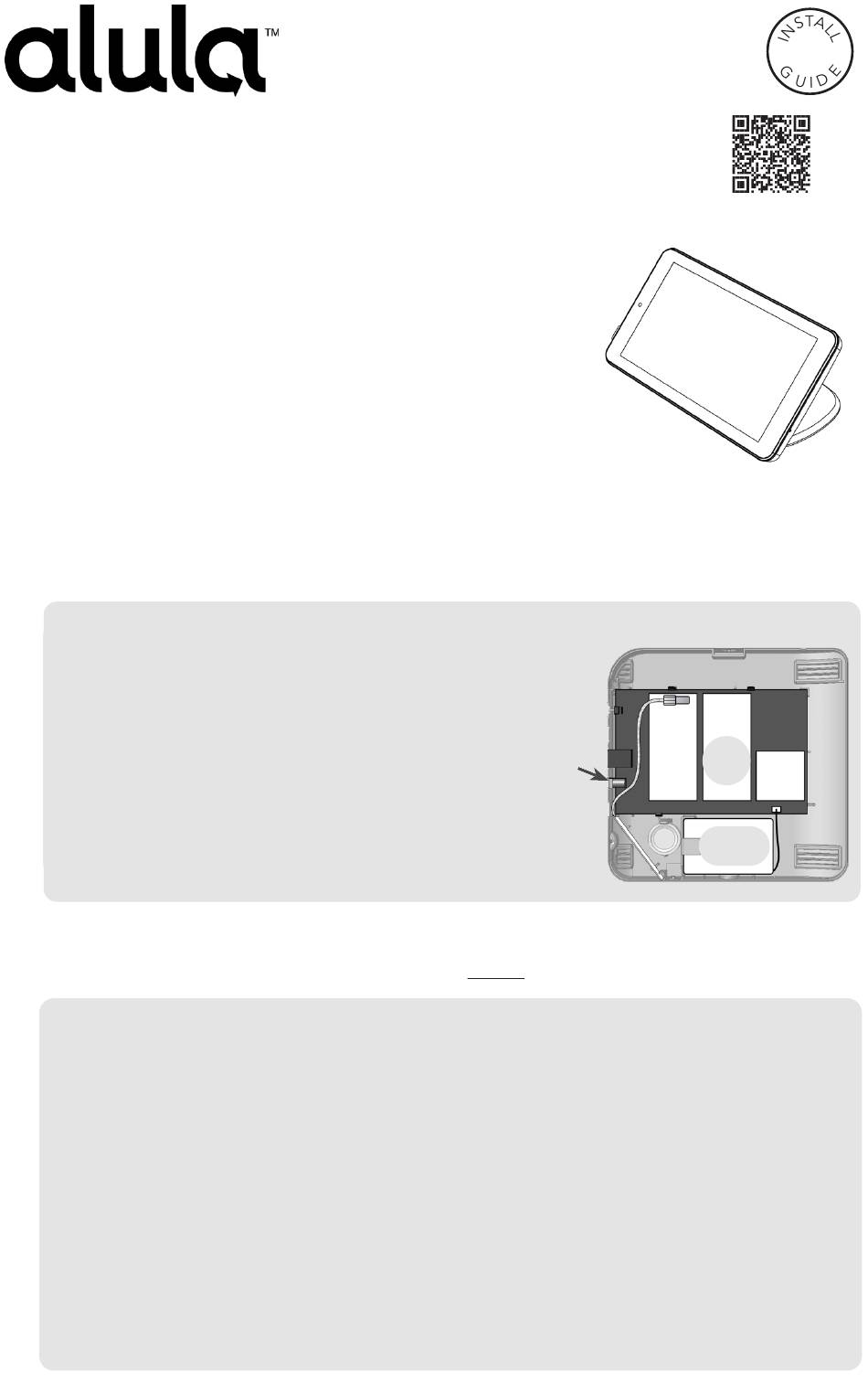

- Page 1 RE667-Pro Slimline Touchpad Connect Family The RE667-Pro Slimline Touchpad is an intuitive interface for controlling the security system. It is AC powered and Scan QR code for Wi-Fi DeviceLink Card manual communicates with the panel wirelessly. Features • Vibrant 7’’ Android™ tablet display •...
- Page 2 • Tap the "Restart" button to try again. 6. If using cameras or user management features, you must log in to the Alula Cloud as the account owner. To log in go to Settings and select Touchpad. Enter master code, then select Alula Cloud.
- Page 3 Installation Overview for BAT-Connect 1. Chose a mounting location. Touchpad can be mounted on a wall or tabletop. 2. Identify your network and verify signal strength before mounting it permanently. 1. Ensure the system is powered. 2. Power the Touchpad by applying AC power. Note: The Touchpad cannot run off panel bus.
- Page 4 BAT-Connect must be connected via ethernet or Wi-Fi. In addition you must log in to the Alula platform using the account owner username and password. To log in go to Settings and select Touchpad. Enter master code, then select Alula Cloud.
-
Page 5: Wall Mounting
Wall Mounting 1. There are two mounting configurations. A. If mounting on a stud, use the two centered holes labeled below [A]. B. If not mounting on a stud, use the four corner mounting holes. Insert the wall anchors prior to screwing the screws in place [B]. -
Page 6: Menu Guide
3. Slide the Touchpad 5. Lock in cover by pressing 4. Drop cover behind onto the mounting plate. at these locations until Touchpad. Push any extra wire into snapped into place. wall before sliding onto mounting plate. 6. Plug in power supply. Menu Guide Dashboard •... - Page 7 Devices (continued) • Open and close Z-Wave garage door openers • Control Z-Wave thermostats **PLEASE SEE Z-WAVE USER GUIDE FOR ADDITIONAL INFORMATION** Cameras • Cameras can be viewed directly from the Touchpad. Live view, clips, and event notifications are supported. Doorbell live view will automatically be displayed when the doorbell button is pressed.
- Page 8 • Wi-Fi - connect via Wi-Fi if using cameras and user management features • Temperature Scale - option for displaying °F or °C • Alula Cloud - must be logged into Alula Cloud as the account owner to use cameras and user management features...
- Page 9 • Panel (must enter code to access) • Global Chime - enables or disables panel sensor chime mode • Quick Arm - arm the panel without entering your access code. Access code is still required to disarm. • Manage Access - manage device users directly from the touchpad (only the account owner can modify users, internet access is required) •...
-
Page 10: Home Screen Functions
Home Screen Functions* The time zone can be config- ured on Alula Connect Tap to turn the Touchpad’s The headline indicates panel status such as display off “Disarmed” or “Armed Stay” Tap to mute beeps during arm/disarm Tap to edit favorite zones,... - Page 11 Connect+, and the DeviceLink connection are battery backed. If the Touchpad is connect- ed only via the premise Wi-Fi, Alula recommends that all network equipment including the Wi-Fi access point be connected to a suitable UPS to ensure system availability during power outage.
-
Page 12: Specifications
Alula, Connect+, and BAT-Connect are trademarks owned by (1) This device may not cause harmful interference. Alula Holdings, LLC. Android is a trademark of Google LLC. (2) This device must accept any interference that may be received, Z-Wave is a registered trademark of Silicon Labs. Wi-Fi is a including interference that may cause undesired operation.
