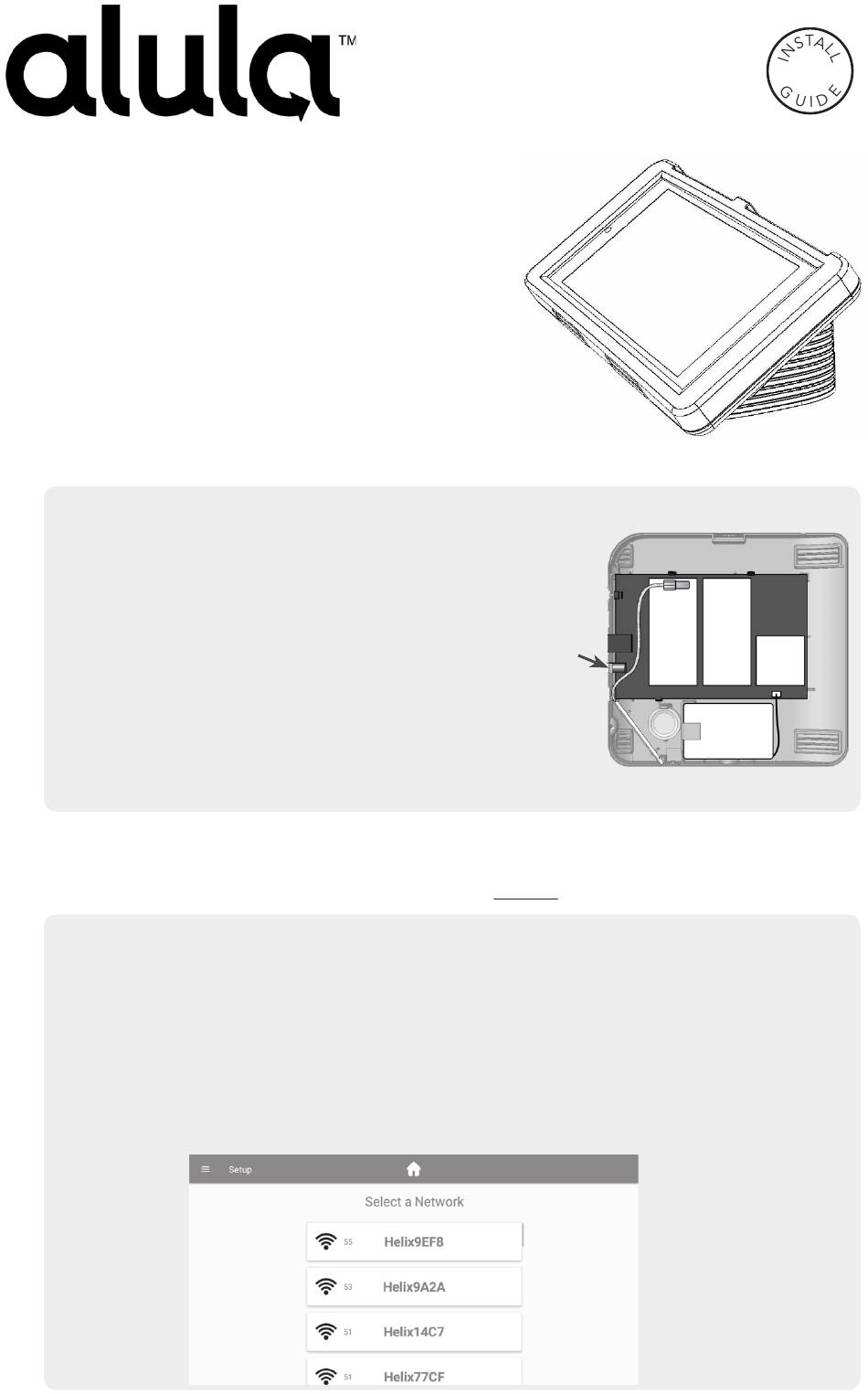

Alula RE657 Manual

The RE657 Touchpad
controlling the Connect+ security system. It is AC
powered and communicates with the panel wirelessly.
Features
• Real time status
• 7-inch color touchscreen
• Wall or table mounted
• 5-year warranty
• Battery backup
Installation Overview
1. Confirm the panel has a Wi-Fi DeviceLink card installed.
Installing the Wi-Fi DeviceLink Card
• Disconnect the panel's AC power and
backup battery.
• Install the Wi-Fi DeviceLink card in Slot 2
by carefully aligning the nylon retention
posts and the 8-pin connector while
pushing the card firmly until all posts are
fully seated.
• Reconnect the panel's AC power and
backup battery.
• Verify the Wi-Fi card LEDs are on.
2. Choose a mounting location within reach of the 10-foot power cable. (See page 8
for instructions on extending the wire).
3. Verify signal strength at the desired location before mounting it permanently.
Verifying Signal Strength
1. Make sure the panel is powered and the Wi-Fi DeviceLink card is installed.
2. Power up the Touchpad using the included adapter.
3. Verify the Touchpad displays "Select a Network." If it doesn't, press "Setup"
then "FACTORY DEFAULT."
4. If the signal strength displayed is less than 35, relocate Touchpad or Connect+
panel. If neither options are available, install an RE621 Touchpad Range
Extender.
RE657 Touchpad
Connect+
is an intuitive interface for
Encrypted
™
AC Power
Input
I
Slot 2
Backup
Battery
