Chapter 2 Install Your Product

2.1 Pairing of TX and RX

Before delivery, each ASK nano set has been paired , but when extra TX are required, following steps are the
method for users to finish TX/RX pairing.
(1) If you want to determine whether TX and RX have been paired:
① Powered on RX and TX(power RX up firstly),connect RX to HDMI port of the display;
② TX and RX will be pairing automatically and the indicator will turn into purple after 5 seconds.
(2) If you want to re-pair the paired ones:
① Powered on RX and TX(power RX up firstly),connect RX to HDMI port of the display;
② Press the TX button for 5 seconds till it flash red light quickly.
③ Release the button, TX will clear the previous pairing information;
④ TX will reboot automatically, the indicator light on the TX will turn into flashing purple showing that it is
waiting for signal source.
Tip: TX will automatically pairs to the first RX found, therefore, when you do the re-pairing, make sure except
the dedicated RX, other RX around are off.

2.2 Receiver Installation

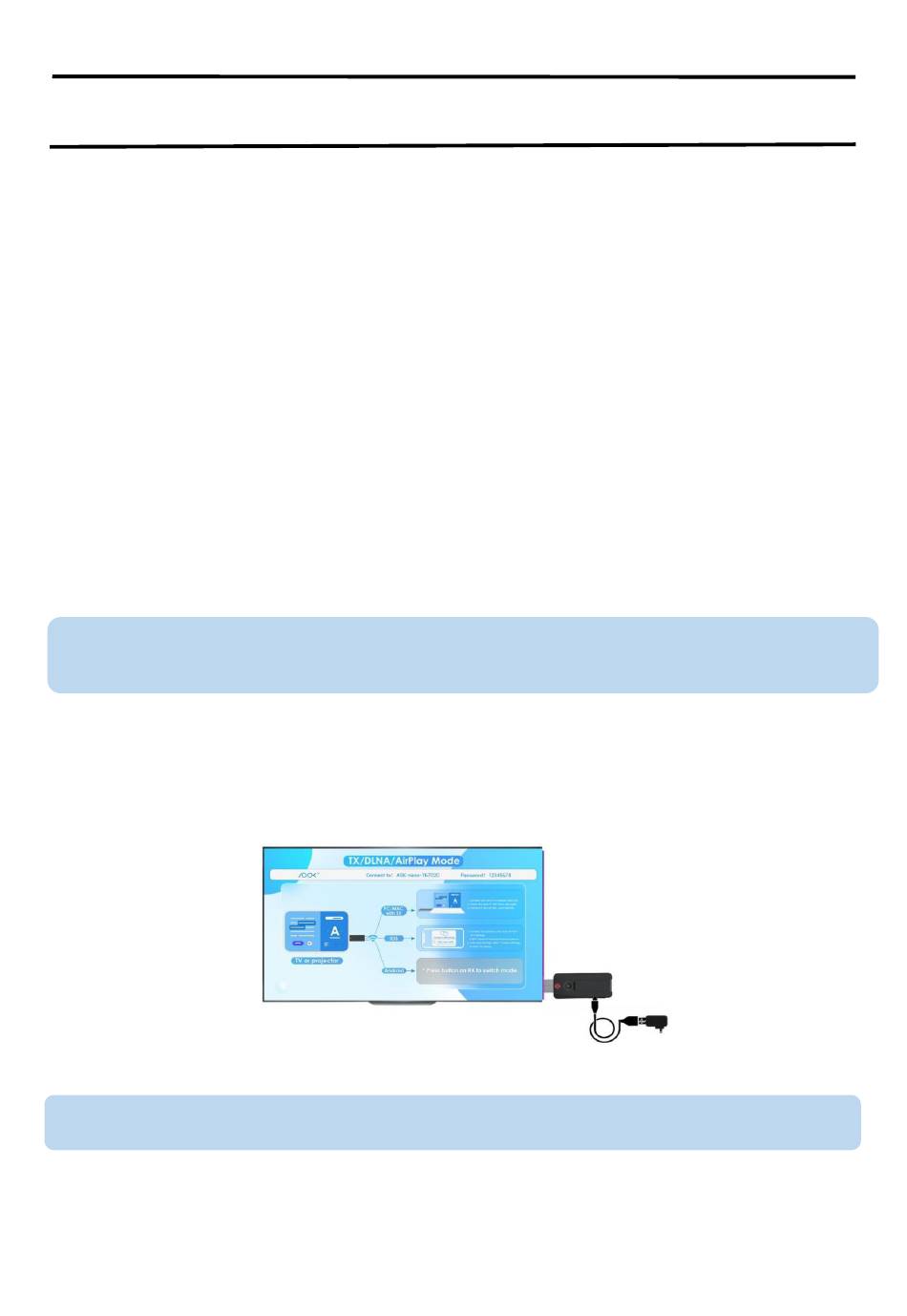

1.Power on the RX via microUSB to USB cable and power adapter.
2.Connect RX HDMI port to TV , projector or other displays with HDMI port.
Tip: Power to RX is essential, please prepare a power supply port or power adapter before RX
installing. If the display offer USB power port, use it to supply power for ASK nano RX.
