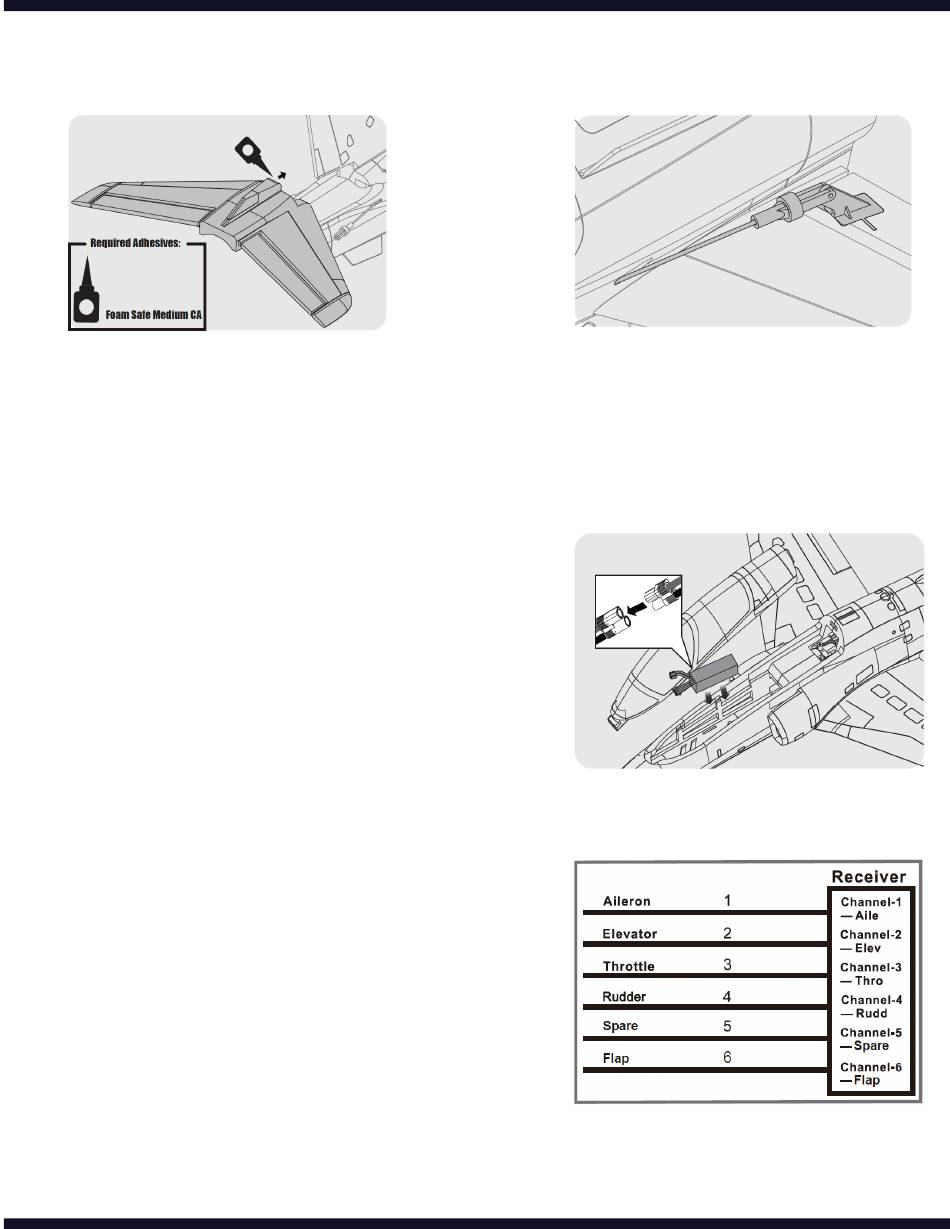

Horizontal stabilizer installation
1. Install the horizontal stabilizer to
the rear of fuselage using foam safe
glue.

Battery installation

1. Remove the battery hatch.
2. Remove the hook and loop tape from the
fuselage. Apply the looped surface to the battery.
3. Install the battery into the fuselage- securing it
with the preinstalled battery straps.
Note: The weight of each battery may vary due to
different manufacturing techniques. Move the
battery fore or aft to achieve the optimal center of
gravity.

Receiver diagram

The cables from the servo connector board should be
connected to your receiver in the order shown. Note
that the LEDs can be powered by any spare channel
on the receiver.
Tuck the wire leads into the recessed cavity towards
the rear of the battery hatch.
2. Install the pushrod to the control
horn on the horizontal stabilizer as
shown.
