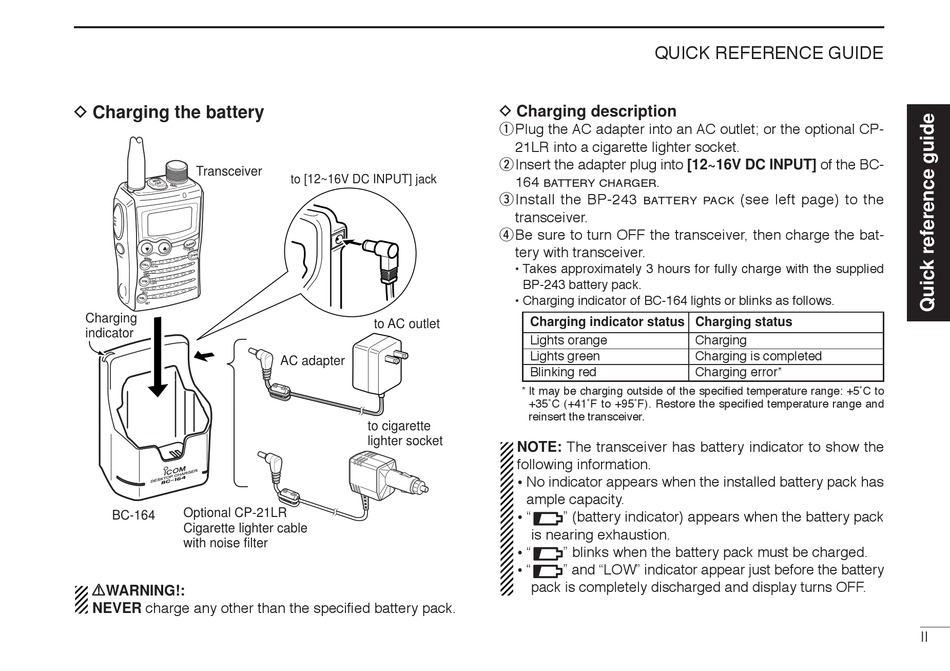

D Charging the battery
Transceiver
Charging
indicator
Optional CP-21LR
BC-164
Cigarette lighter cable
with noise filter
R R WARNING!:
NEVER charge any other than the specified battery pack.
to [12~16V DC INPUT] jack
to AC outlet
AC adapter
to cigarette
lighter socket
QUICK REFERENCE GUIDE
D Charging description
qPlug the AC adapter into an AC outlet; or the optional CP-
21LR into a cigarette lighter socket.
wInsert the adapter plug into [12~16V DC INPUT] of the BC-
164 .
BATTERY CHARGER
eInstall the BP-243
BATTERY PACK
transceiver.
rBe sure to turn OFF the transceiver, then charge the bat-
tery with transceiver.
• Takes approximately 3 hours for fully charge with the supplied
BP-243 battery pack.
• Charging indicator of BC-164 lights or blinks as follows.
Charging indicator status Charging status
Lights orange
Lights green
Blinking red
* It may be charging outside of the specified temperature range: +5˚C to
+35˚C (+41˚F to +95˚F). Restore the specified temperature range and
reinsert the transceiver.
NOTE: The transceiver has battery indicator to show the
following information.
• No indicator appears when the installed battery pack has
ample capacity.
• " " (battery indicator) appears when the battery pack
is nearing exhaustion.
• " " blinks when the battery pack must be charged.
• " " and "LOW" indicator appear just before the battery
pack is completely discharged and display turns OFF.
(see left page) to the
Charging
Charging is completed
Charging error*
