PEERLESS PED 410 Installation And Assembly

Installation and Assembly- Elevation Pedestal Stand
IMPORTANT! Read entire instruction sheet
before you start installation and assembly.
Pedestals models: PED 410, PED 510, PED 610, PED 710 Tray models: TPD 3032, TPD 3536
part#
A 057-1002 (PED 410 only)
057-1003 (PED 510 only)
057-1004 (PED 610 only)
057-1005 (PED 710 only)
B 4MD-10HS15K
C 1390-472
D 530-9401
E 540-9407
F 540-9424
G 5S1-M10-A20
H 5M9-381-H03
Available Accessories:
Ratchet Belt (ACC 666)
NOTE: Parts may appear slighty different then illustated.
TPD trays (TPD 3032 & TPD 3536) can only be used with pedestals
(PED 410, PED 510, PED 610 & PED 710).
B
C
D
A
Visit the Peerless Web Site at www.peerlessindustries.com

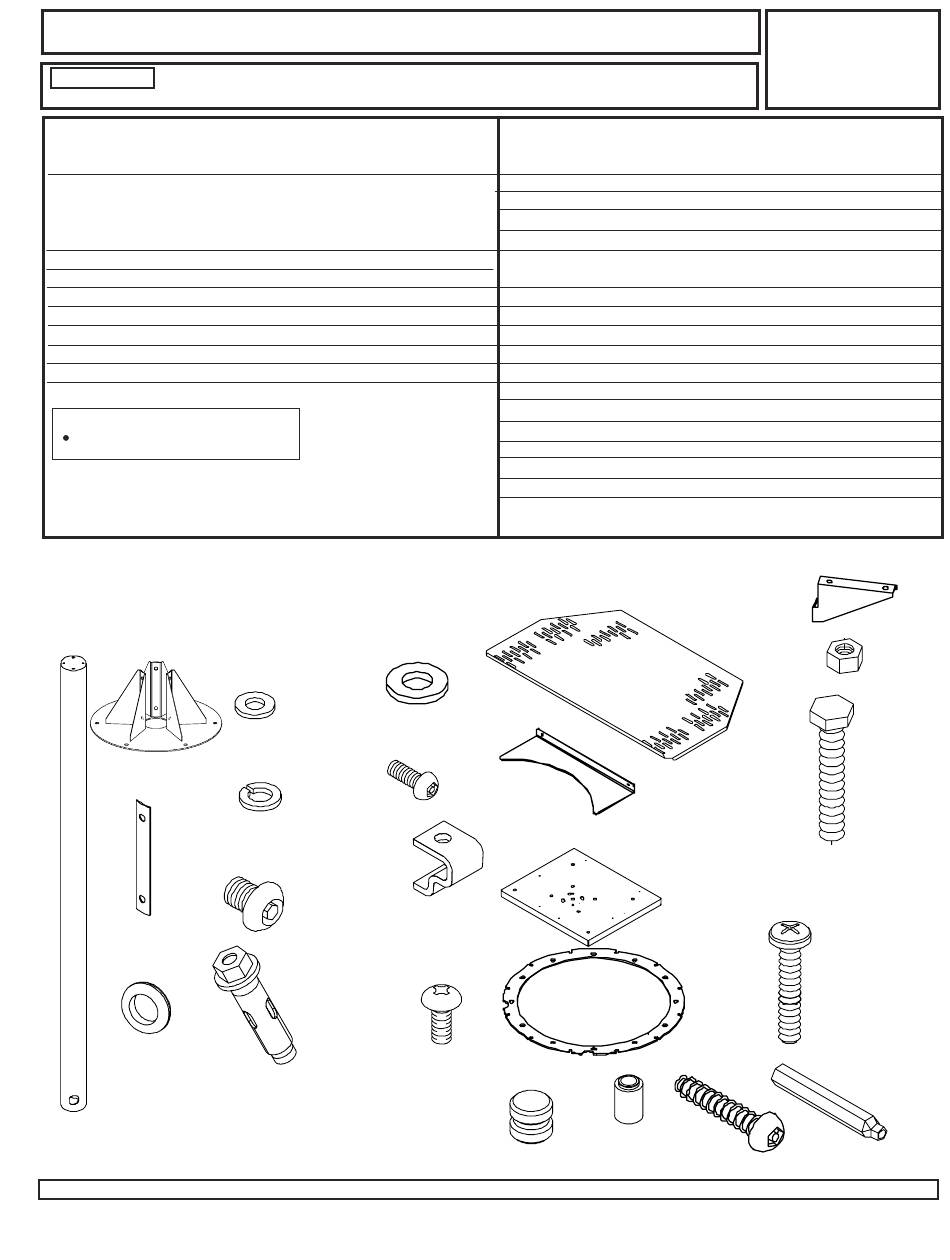

Before you start check the parts list to make sure
all of the parts shown are included.
qty. part
1 tube
1 base plate
3 fastener plate
2 rubber grommet
6 flat washer
6 M10 lock washer
6 M10 x 20 mm screw
6 rawl bolt
E
J
F
G
K
H
part#
I 540-9400
J 505-9010
K 2245-081
L 510-9107
M 095-1021 (TPD 3032 only) 1
095-1022 (TPD 3536 only)
N 046-1002
O 104-1006
P 046-1001
Q 1390-471
R 530-9306
S 520-9211
V 510-9110
W 590-1037
X 590-1036
Y 520-9258
Z 520-9249
I
N
O
L
P
W
X
1 of 4
ISSUED: 12-03-99 SHEET #: 057-9002-1 08-16-04
For customer service call 1-800-729-0307 or 708-865-8870.
Model:
PED 410, PED 510,
PED 610, PED 710,
TPD 3032, TPD 3536,
qty. part
4 #10 flat washer
6 M5-.8 x 10 mm penta-pin
4 uni. clip
4 1/4-20 x 3/8 phil. RD HD
support tray
1 back clamp
1 support plate
1 base ring
4 support leg
8 5/16 nylock nut
8 5/16-18 x 1 hex screw
6 1/4-20 x 1" phil. bolt
12 glide
12 spacer
4 #10 x 3/4 penta-pin
1 penta-pin tool
Q
M
V
Y
R
S
Z
