Oslo Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt
nut
x32
x32
F
G
5"50 screw
clip
x6
x4
K
L
3"14 screw
wedge
x8
x8
Q
P
safety strap
4"35 screw
x2
×2

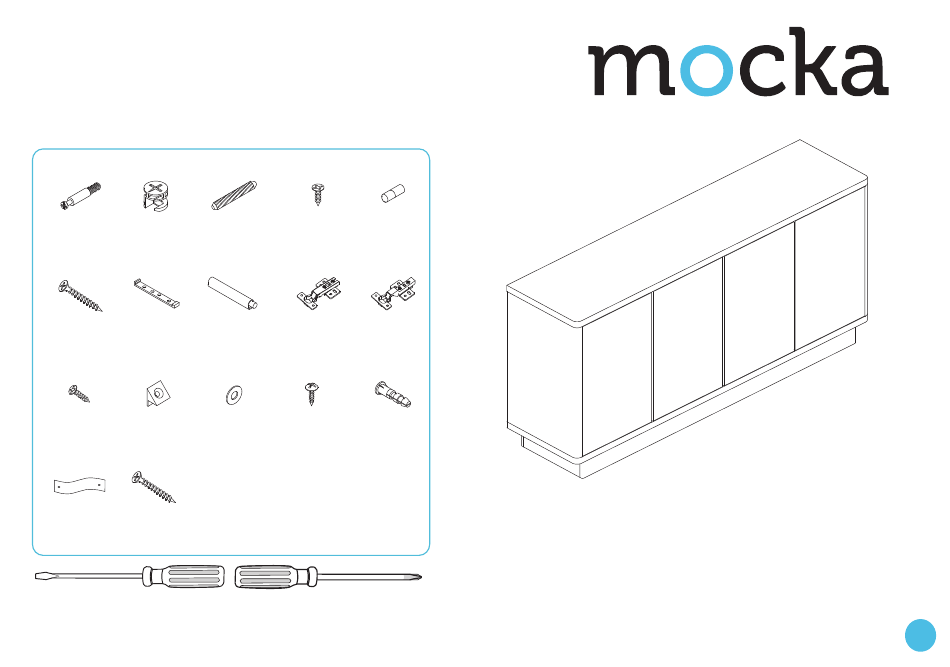

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au |
C
D
E
dowel
3"12 screw
clip
x12
x56
x8
H
I
J
spacer
hinge
hinge
x4
x4
x4
M
N
O
washer
4"14 screw
wall plug
x4
x2
×2
WARNING:
Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts to
climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We
supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note that
different wall materials may require different fixing devices from those
supplied.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Oslo Buffet
Summary of Contents for Mocka Oslo Buffet
- Page 1 Phillips & Flathead screwdrivers required. different wall materials may require different fixing devices from those For quicker assembly, we recommend the supplied. use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au |...
- Page 2 Oslo Buffet Assembly Instructions mocka.co.nz | mocka.com.au |...
- Page 3 Attach 16 x bolts (A) to panels [1] and [2] as shown. Attach 4 x clips (G) Attach 16 x bolts (A) to panels [11] as shown. Tighten with a and 4 x spacers (H) to panel [1] and secure with 8 x screws (D). Tighten screwdriver. with a screwdriver. mocka.co.nz | mocka.com.au |...
- Page 4 Attach panel [2] to panels [3], [4] and [5] and secure with 6 x dowels (C) Attach panels [10], [13] and [11] together as shown and secure with and 6 x screws (F). Tighten with a screwdriver. 16 x nuts (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au |...
- Page 5 Oslo Buffet Assembly Instructions Attach assembled frames together as shown and secure with 10 x Slide panels [8] and [12] into position as shown. screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au |...
- Page 6 Attach panels [1] to panels [3], [4], [5] and [8] and secure with 6 x nuts Attach 8 x clips (E) to assembled frame and slide panels [7] into (B) and 6 x dowels (C). Tighten with a screwdriver. position as shown. mocka.co.nz | mocka.com.au |...
- Page 7 Attach x hinge (J) and 4 x hinge (I) to panels [9] as shown and Attach panels [9] to assembled frame as shown and secure with 16 x secure with 16 x screws (D). Tighten with a screwdriver. screws (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au |...
- Page 8 Oslo Buffet Assembly Instructions Attach panels [9] to assembled frame as shown and secure with 16 x screws (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au |...
- Page 9 (P). Fasten to the wall using 2 x wall plugs (O), 2 x screws (Q) (N) . Tighten with a screwdriver . and 2 x washers (M). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au |...
