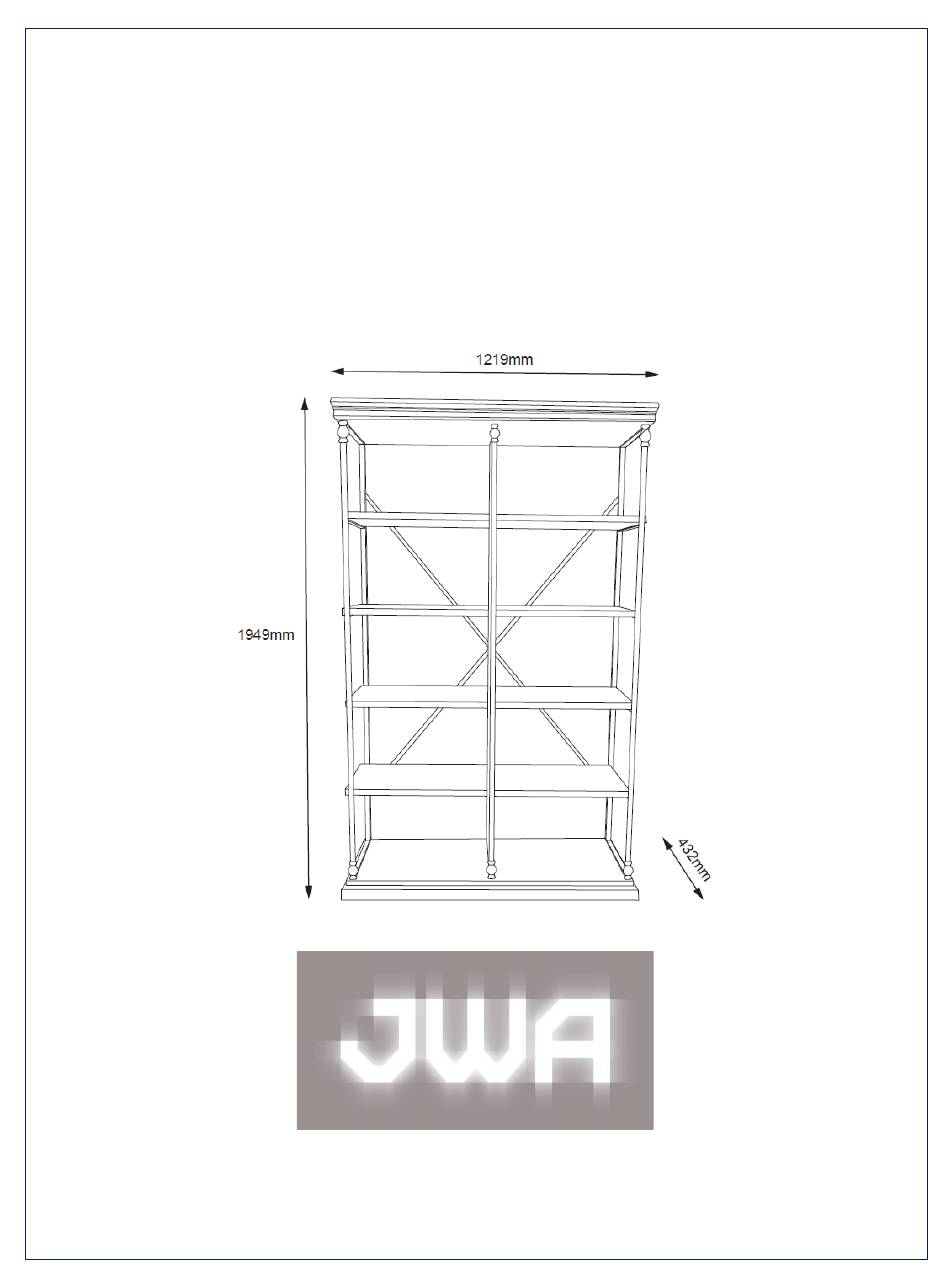

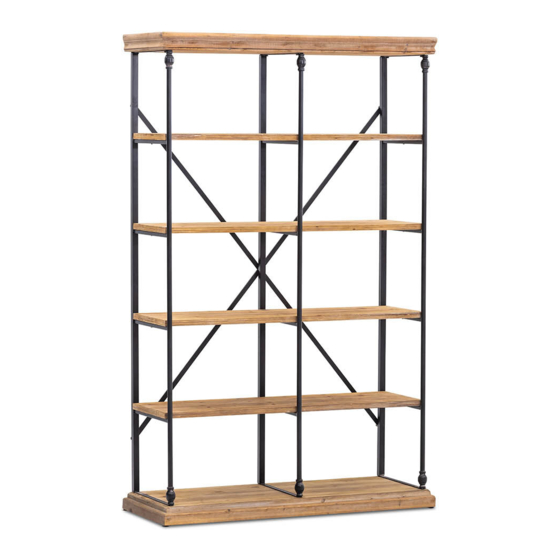

- Page 1 ASSEMBLY INSTRUCTION YORKTON 5 TIER BOOKCASE 72415 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST Tabletop 1PC Shelf 4PCS Bottom 1PC Leg 3PCS Brace 1PC... - Page 4 STEP 1:...
- Page 5 STEP 2:...
- Page 6 STEP 3:...
- Page 7 STEP 4:...
- Page 8 ASSEMBLY IS COMPLETE...
- Page 9 SAFETY BRACKETS INSTRUCTIONS 1. Install Plastic Screw Anchor in the wall and attach one Mounting Plate to the anchors with the Large Screws. Make sure to attach the Mounting Plate into a stud. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws. 3.
-
Page 10: Product Care
PRODUCT CARE: As our timber is supplied from sustainable forests there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique •...
