Summary of Contents for JWA RODGER 70145

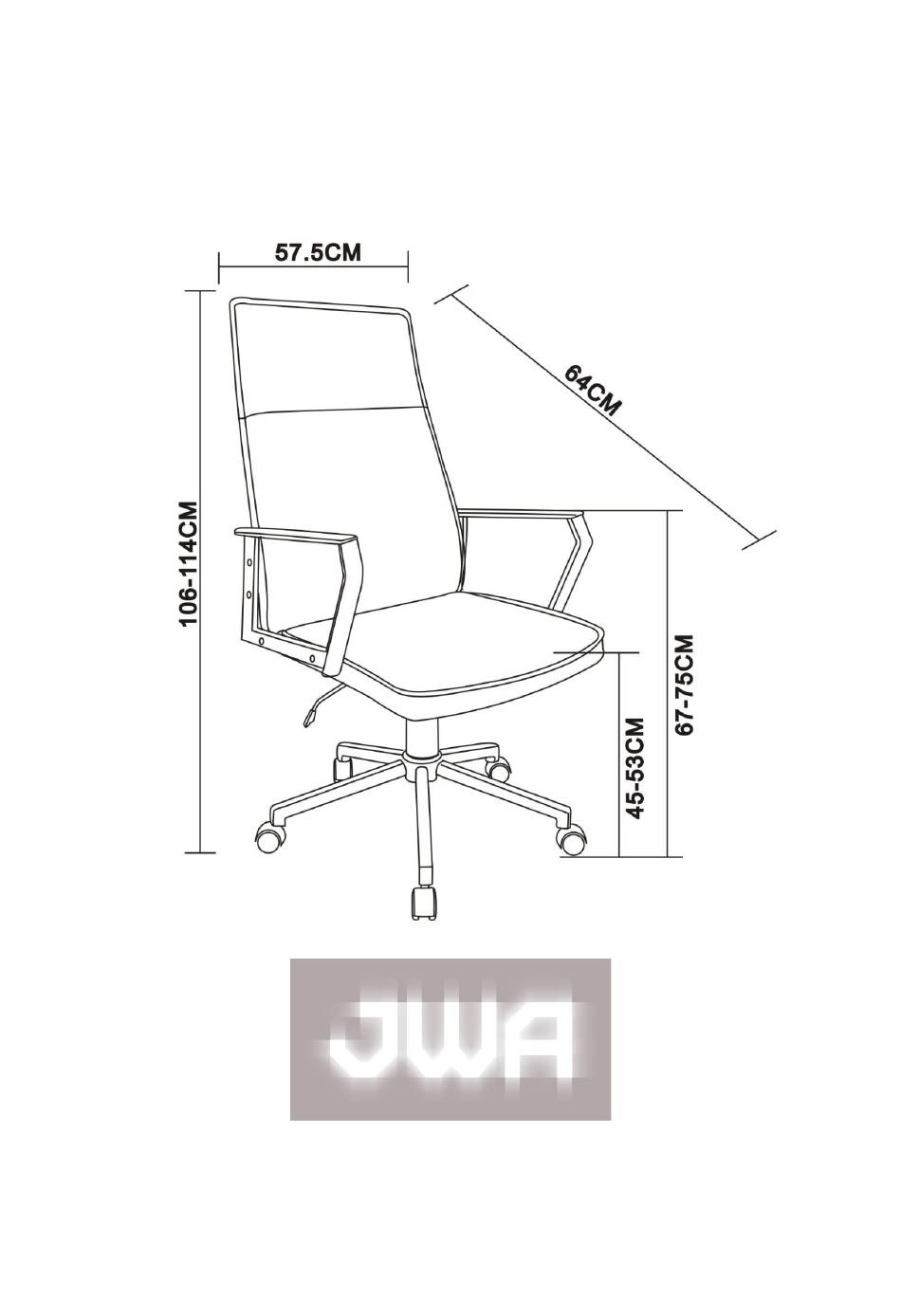

- Page 1 ASSEMBLY INSTRUCTION RODGER OFFICE CHAIR 70145 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of use 3.Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST Backrest Gas lift cover Seat Gas lift Armrest Base Armrest Castors Seat plate...
- Page 4 STEP 1: a. Push all the five castors ⑨ into the underside of the base ⑧. b: Insert the gas lift ⑦ into the base ⑧.Use gas lift cover ⑥ to cover the gas lift ⑦ . STEP 2: Use bolts (A) and washer(C) to fix the seat plate ⑤ onto the seat ②.
- Page 5 STEP 3: Use bolts (B) to fix the armrest ③ and ④ onto two sides of chair seat ②, and install the seat ② on the whole base ⑧. STEP 4: Use bolts (B) to fix the second screw on the armrest ③...
- Page 6 STEP 5: Use bolts (B) to fix the first screw on the armrest ③ and ④ onto the backrest ①. Then open the backrest ①. STEP 6: Put the screw cap(D) for the armrest.
- Page 7 ASSEMBLY IS COMPLETE...
- Page 8 REGULAR CARE: • Protect from direct sunlight • Vacuum regularly using low suction • Rotate reversible cushions regularly •Avoid exposure to new clothing, cushions or throws as this may lead to dye transfer and permanent staining CLEANING: •Do not remove cushion covers for separate cleaning even though they may have zippers •...
