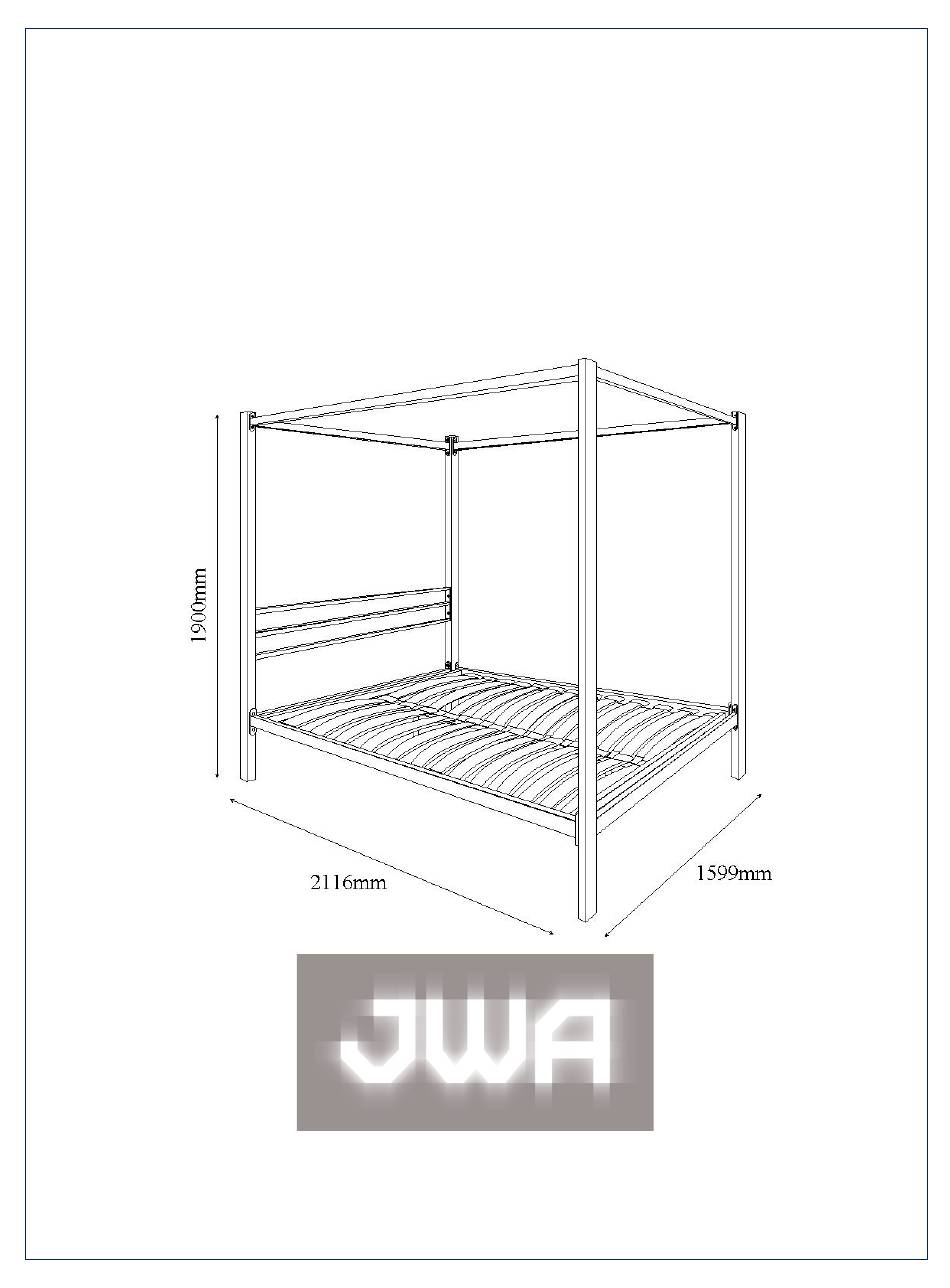

- Page 1 ASSEMBLY INSTRUCTION MAXIMILIAN QUEEN 4 POST BED 70412/70413 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST Headboard x 1pc End Cap x 26pcs Cross Rail x 2pcs Centre Cap x 13pcs Siderails x 2pcs Head Post L/R x 2pcs Cross Bar x 2pcs Foot Post L/R x 2pcs Centre Rail x 1pc Canopy Short Rail x 2pcs Support Leg x 3pcs Canopy Long Rail x 2pcs Slat (752mm) x 26pcs... - Page 4 STEP 1: Prepare a protected surface with a blanket or cardboard. • Attach the headboard(1), cross rail(2) and canopy short rail(12) • to the 2x head post(10), as shown below. Use 6x bolt(B) per post. Fasten with Allen key(F). Attach the cross rail(2) and canopy short rail(12) to the 2x foot •...
- Page 5 STEP 2: Connect a side rail(3) to the head post(10) and foot post(11). • Secure with 2x bolt(B) per corner. Fasten with Allen key(F). Repeat for the other side rail. • Attach the 2x canopy long rail(13) to the head post(10) and foot •...
- Page 6 STEP 3: Attach the 3x supports(6) to the centre rail(5), as shown below. • Use 2x bolt(A) per leg, threaded from the top, and lock with nut(E). Fasten with Allen key(F) and hold the nut with a pair of pliers. Attach the cross rails(4) near the head post and foot post, as •...
- Page 7 STEP 4: Attach an end cap(8) onto every slat, 1 per slat(7). • Take 2x slats and cup the non capped end into either side of • the middle cap(9). Form 13x slat pairs. Attach the slat pairs to the bed as shown below. Push the caps •...

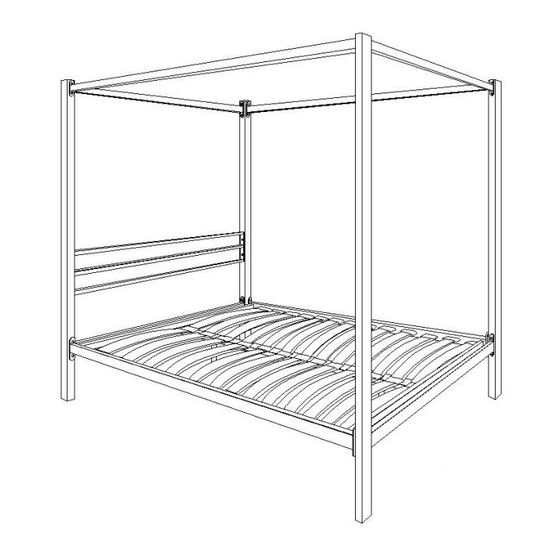

- Page 8 Assembly Is Complete...
-
Page 9: Product Care
PRODUCT CARE: FURNITURE / BED 1. When assembling your furniture / bed please ensure that you have checked the contents for all relevant parts. 2. When tightening bolts make sure that they are fully tightened but not forced. 3. When moving your fully assembled bed you must first remove the mattress and lift the frame into position, take care when lifting and always have two people handling the bed.
