Unpack the box

The packing box includes an accessory box, and a crate that holds the system in
place.
1 Remove the straps from the packing box.
2 Raise the lid on the packing box. Avoid damaging the lid, as it will be used later as a
ramp.

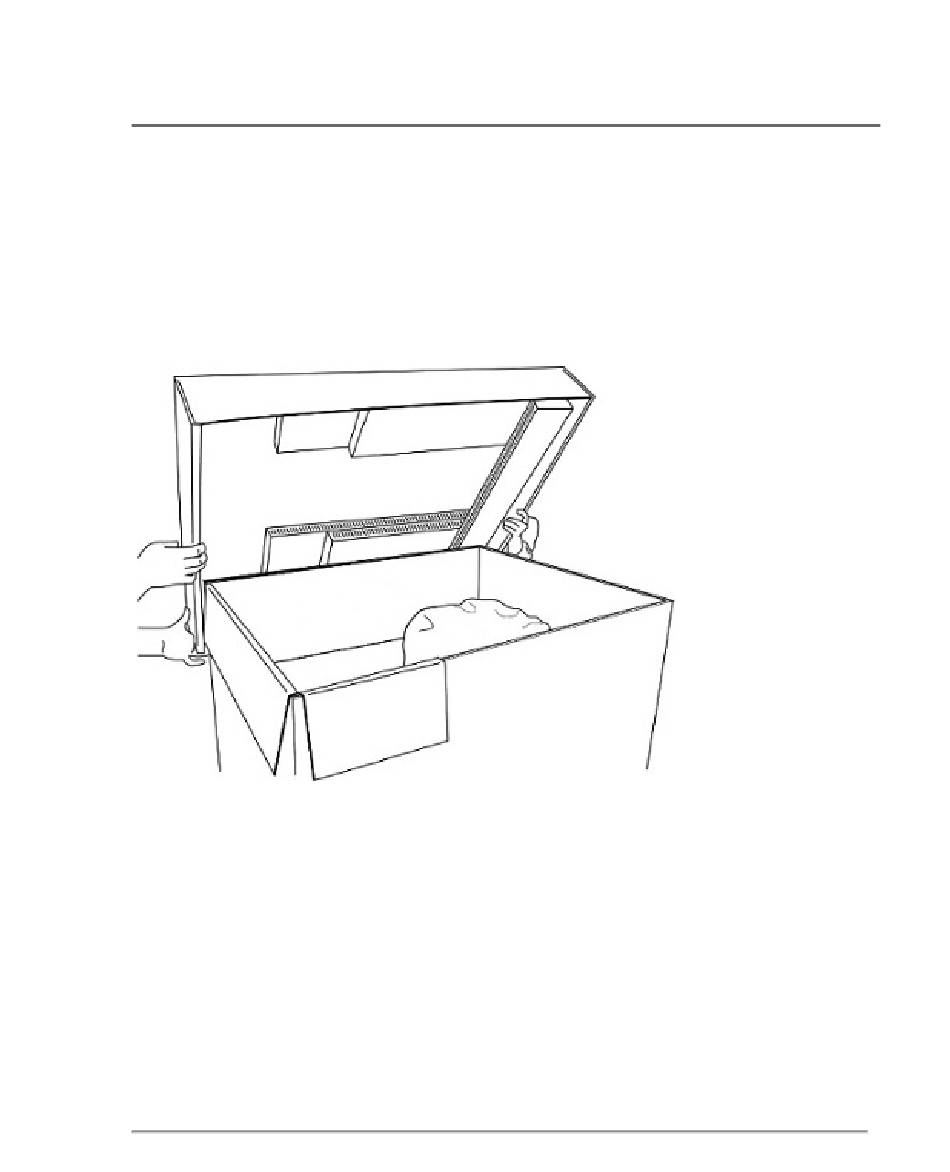

Figure 1-1 The Vevo 3100 Imaging System packing box with
3 Remove the sides of the packing box.
4 If a transducer is included with the system, remove the transducer box:
a Remove the strap from the transducer box on the back of the crate.
b Remove the transducer box and set aside.
lid.
- 5 -
