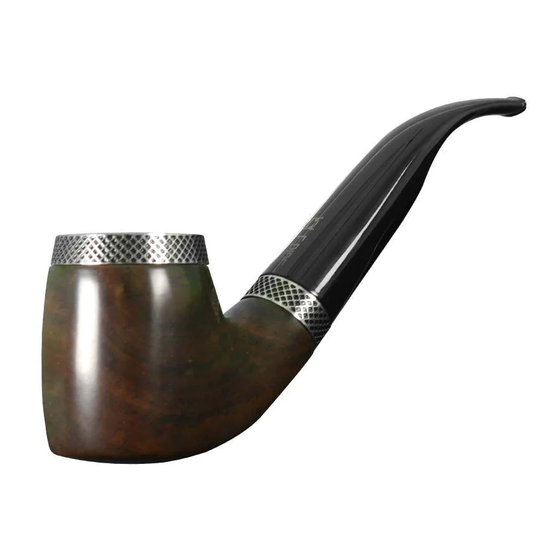

Summary of Contents for Totally Wicked E-PIPE III
- Page 1 USER MANUAL...
- Page 2 YOUR...
- Page 3 Battery Mouthpiece Glass Section 18350 Battery Atomizer Head Tank Tank Base E-Pipe 3 Airflow Body Control Ring...
- Page 4 REMOVING THE MOUTHPIECE...
-
Page 5: Removing The Tank
REMOVING THE TANK... - Page 6 REMOVING THE ATOMIZER HEAD...
- Page 7 PRIME THE ATOMIZER HEAD Wait 5 minutes before vaping a new atomizer head.
-
Page 8: Fill The Tank
FILL THE TANK Max Fill Ensure an air gap of 2mm remains... - Page 9 REATTACH THE TANK BASE...
- Page 10 ADJUST AIRFLOW...
- Page 11 REATTACH TANK TO BODY...
- Page 12 REATTACH MOUTHPIECE...
-
Page 13: Insert The Battery
INSERT THE BATTERY... - Page 14 VAPING Draw gently but firmly to vape...
- Page 15 USING YOUR E-PIPE 3 PRIMING THE ATOMIZER HEAD It is important to “prime” a new atomizer head before first use. Failure to do so can damage the atomizer head. Remove the tank from the E-Pipe 3 body by first removing the mouthpiece, twist and pull to remove.
- Page 16 USING YOUR E-PIPE 3 FILLING THE TANK & ADJUSTING THE AIRFLOW Remove the tank from the E-Pipe 3 body by first removing the mouthpiece, twist and pull to remove. Unscrew and remove the tank assembly from the E-Pipe 3 body. Unscrew the tank base and fill to just below the height of the central air tube as shown in the diagram.
- Page 17 USING YOUR E-PIPE 3 VAPING Draw gently but firmly on the E-Pipe 3 mouthpiece so that the LED lights up. E-LIQUID LEVEL To prevent the atomizer head from becoming dry and burning prematurely, ensure the e-liquid level does not drop below the inlet holes on the side of the atomizer head, visible through the glass section of the tank.
-
Page 18: Short Circuit Protection
PROTECTIONS ATOMIZER HEAD PROTECTION If the E-Pipe 3 fires for more than 10 seconds continuously, the LED will remain lit for 3 seconds and the device will not power or produce any vapour. Let the device sit for 1 minute before vaping to allow normal operation to resume. LOW BATTERY ALERT If battery voltage drops below 3.3V, the LED will flash 10 times indicating the device needs charging. -
Page 19: Cleaning And Maintenance
NO ATOMIZER DETECTED PROTECTION If no atomizer head is detected, the LED will flash 5 times and the E-Pipe 3 will not provide power to the atomizer head or produce any vapour. Ensure the atomizer head is fully screwed into the base of the tank, then fit the tank back onto the E-Pipe 3 body. -
Page 20: Specifications
SPECIFICATIONS E-PIPE 3 Dimensions: 172mm x 45mm x 58mm. Weight: 222g with battery fitted. Battery capacity: Single 18350 Thread type: Proprietary connection. Atomizer activation: Automatic. PRODUCT STORAGE AND BATTERY PRECAUTIONS • Store the E-Pipe 3 and its accessories away from children whilst not in use. -
Page 21: Warranty
WARRANTY The E-Pipe 3 kit has a 6 months parts warranty, with the exception of atomizer heads, which are consumable items and covered by “dead on arrival” warranty only. If any parts are found to be faulty within this time please contact our customer service team, whose details are on the back page of this booklet and we will arrange for a replacement. - Page 22 Manufactured in China under the authority of Pillbox38 (UK) Ltd, Stancliffe Street, Blackburn, Lancashire, BB2 2QR. Tel: 01254 692244 www.totallywicked.co.uk...
