Totally Wicked Tornado-T User Manual

USER GUIDE
Filling the Tornado-T Tank:
1. Remove the tank cartridge from the atomizer cone
2. Remove the end cap of the tank cartridge
3. Fill the tank cartridge, ensuring to leave a minimum
of 1mm space at the top and reattach the end cap
4. Push the tank cartridge firmly into the atomizer cone
until you hear a click
5. Screw the atomizer cone onto the battery
6. Before pressing the battery button take two sharp inhales
and one gentle exhale on the mouthpiece of the tank cartridge
7. Place the mouthpiece of the tank cartridge into your mouth,
depress the battery button and inhale gently for three-five seconds,
release the power button and exhale when ready.
8. Refill your tank cartridge when the fluid level reaches approx 5mm
in the viewing window when the device is inverted. Do not operate
with an empty cartridge.

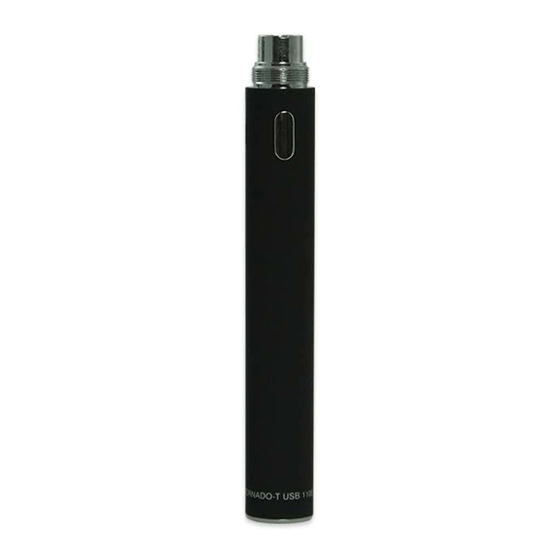

Battery Operation:
To turn the battery on or off click the power button 5 times within 2 seconds.
The Tornado battery has 2 modes of operation, regulated and unregulated power output.
Regulated output produces a constant output of 3.7V from fully charged to discharged.
Unregulated output produces a higher output of 4.2V which diminishes to 3.3V over the
period of discharge.
To toggle between the 2 modes, turn the battery off by clicking the power button 5
times, once off hold the power button for approximately 5 seconds, the power button
will flash white for regulated mode and orange for unregulated mode, press the power
button 5 times to turn the battery back on in the mode selected.
Power
button
USB Port
Regulated mode
Unregulated mode
