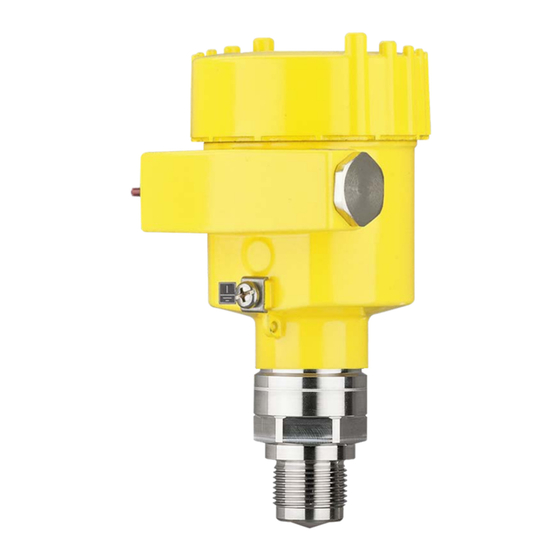

Vega VEGAPULS 6X Safety Instruction

Dust ignition protection by enclosure two-wire 4 20 ma/hart
Hide thumbs Also See for VEGAPULS 6X:
Table of Contents

Advertisement

Quick Links

Download this manual

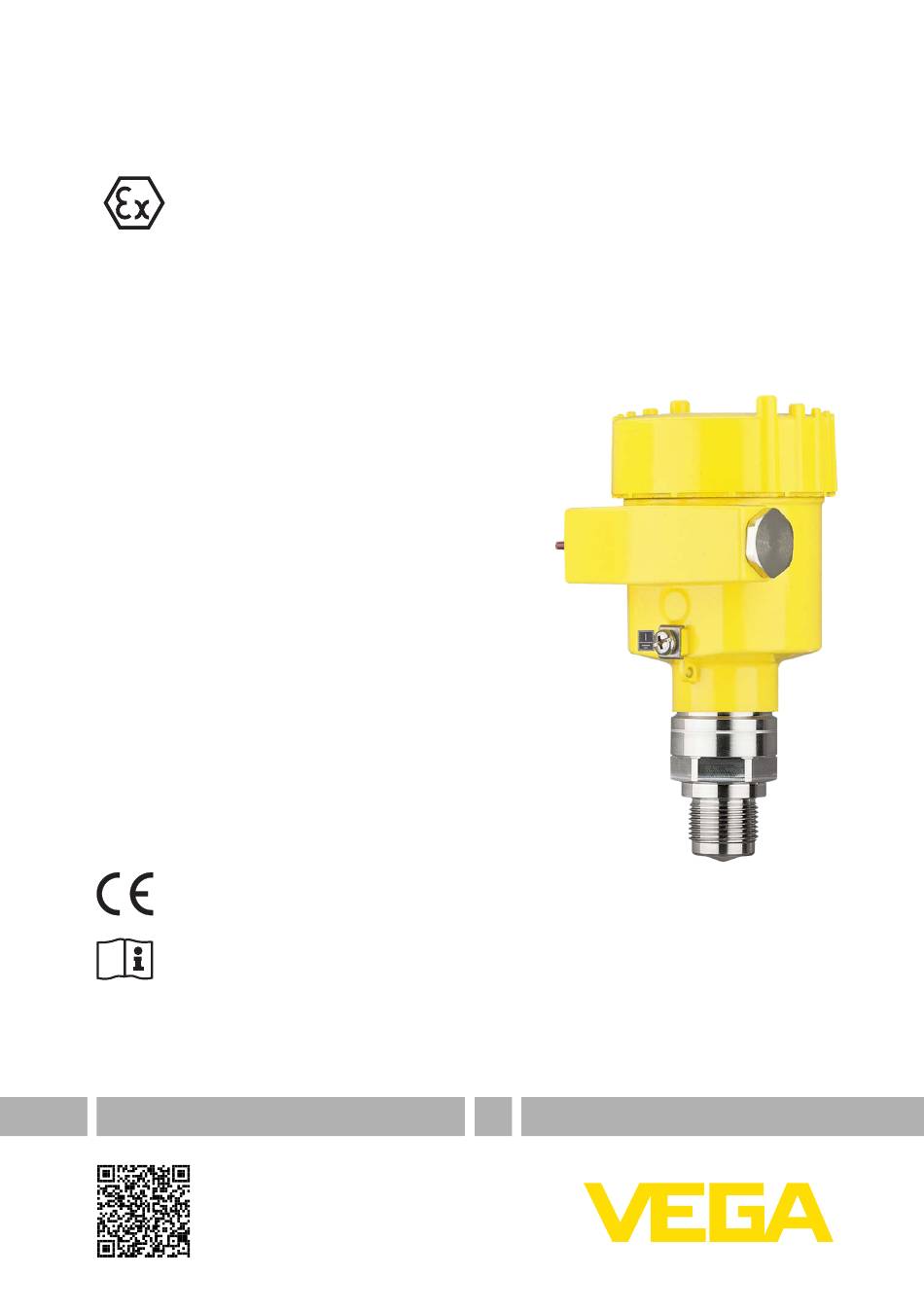

Safety instructions
VEGAPULS 6X
Dust ignition protection by enclosure
Two-wire 4 ... 20 mA/HART
0044
Document ID: 66216

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAPULS 6X and is the answer not in the manual?

Questions and answers

Related Manuals for Vega VEGAPULS 6X

Summary of Contents for Vega VEGAPULS 6X

  • Page 1 Safety instructions VEGAPULS 6X Dust ignition protection by enclosure Two-wire 4 … 20 mA/HART 0044 Document ID: 66216...

  • Page 2: Table Of Contents

    8 Electrical data......................... 11 9 Thermal data .......................... 12 Supplementary documentation: • Operating Instructions VEGAPULS 6X • Quick setup guide VEGAPULS 6X • EU type approval certificate CSANe 21 ATEX 1322 X (Document ID: 66215) • EU declaration of conformity (Document ID: 66323) •...
  • Page 3 VEGA upon request. Les présentes consignes de sécurité sont disponibles au téléchargement sous www.vega.com en standard en allemand, en anglais, en francais et en espagnol. VEGA met à disposition d'autres langues de l'Union Européenne selon les exigences.

  • Page 4: Scope

    – II 2D Ex tb IIIC T* Db – IP66 Type code specification In the following, all versions are called VEGAPULS 6X. If parts of these safety instructions refer only to certain versions, then these will be mentioned explicitly with their type code. VEGAPULS 6X with type code PS6X(*).a-b-c-de-f-g-hi-j-k-l-m-no-p-q-r-s-t-u...
  • Page 5 PTFE (8 mm)/PTFE / -196 … +200 °C PFA (8 mm)/PFA / -60 … +150 °C PFA (8 mm)/PFA / -60 … +200 °C Housing / Protection Aluminium single chamber / IP66/IP68 (0.2 bar) Special colour Aluminium single chamber / IP66/IP68 (0.2 bar) VEGAPULS 6X...
  • Page 6 Display/adjustment module PLICSCOM, laterally mounted; with Bluetooth Electronics Two-wire 4 … 20 mA/HART Two-wire 4 … 20 mA/HART with overvoltage arrester Explosion protection Dust ignition protection by enclosure Flameproof enclosure + Dust ignition protection by enclosure Functional safety SIL (IEC 61508) without with IT Security (IEC 62443-4-2) without with Overfill protection without with VEGAPULS 6X...

  • Page 7: Application Area

    II 1/2G, 2G Ex db IIC T6…T1 Ga/Gb, Gb IIIA, IIIB, IIIC II 1D, 1/2D Ex ta, ta/tb IIIC T* Da, Da/Db IP66 Application area of VEGAPULS 6X (electronics version A): Type code Explosion Type of protection marking group Electronics version "A" - Two-wire 4 … 20 mA/HART with overvoltage arrester VEGAPULS 6X...

  • Page 8: Specific Conditions Of Use ("X" Identification)

    To avoid the risk of electrostatic charging of metal parts, the VEGAPULS 6X must be connected to the potential equalization (transition resistance ≤ 1 MΩ). • All parts of VEGAPULS 6X in contact with the medium must only be used in such a medium against which the materials are sufficiently resistant. •...
  • Page 9 Aluminium housing with M20 x 1.5 thread, ½ NPT thread Stainless-steel housing (fine cast) with M20 x 1.5 thread, ½ NPT thread Maintenance To ensure the functionality of the device, periodic visual inspection is recommended for: • Secure mounting • No mechanical damages or corrosion • Worn or otherwise damaged cables VEGAPULS 6X...

  • Page 10: Operation

    No loose connections of the line connections, equipotential bonding connections • Correct and clearly marked cable connections The parts of the VEGAPULS 6X being in contact with flammable media during operation must be included in the periodic overpressure test of the plant. Red threaded or dust protection cap Label: Type and size of the thread ½-14 NPT or M20 x 1.5...

  • Page 11: Electrostatic Charging (Esd)

    IP protection. • The connection cable of VEGAPULS 6X has to be wired fix and in such a way that damages can be excluded •...

  • Page 12: Thermal Data

    Air with an oxygen content of 21 % (v/v) Additional measures are required for operation of the VEGAPULS 6X outside these conditions. The operation of the VEGAPULS 6X outside the above conditions is the sole responsibility of the operator. The thermal measurements for determining the following temperature tables were carried out for process temperatures above +150 °C with insulation.
  • Page 13 20 electronics housing Aluminium -xx … +130 °C -40 … +57 °C Ambient temperature +132 °C A, D, H, S +35 K -xx … +150 °C -40 … +48 °C Ambient temperature +152 °C +35 K VEGAPULS 6X...
  • Page 14 20 electronics housing Aluminium -xx … +130 °C -40 … +65 °C Ambient temperature +132 °C A, D, H, S +35 K -xx … +150 °C -40 … +58 °C Ambient temperature +152 °C +35 K VEGAPULS 6X...
  • Page 15 AD PEEK/FFKM (Kalrez 6230) / -15 … +250 °C • AF PEEK/FFKM (Kalrez 6375) / -20 … +250 °C • AH PEEK/FFKM (Perlast G75B) / -15 … +250 °C • AK PEEK/FFKM (Perlast G74S) / -15 … +250 °C VEGAPULS 6X...
  • Page 16 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2022 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
