Page 1 User Guide Keysight M9502A 2-Slot and M9505A 5-Slot AXIe Chassis...
Page 3 Warranty © Keysight Technologies, 2010-2022 No part of this manual may be repro- To contact Keysight for sales and techni- THE MATERIAL CONTAINED IN THIS duced in any form or by any means cal support, refer to the support links on DOCUMENT IS PROVIDED “AS IS,”...
Page 4 Ground the Instrument or any other reason, REMOVE POWER and do not use the product until safe Keysight chassis’ are provided with a Operator is responsible to maintain operation can be verified by service- grounding-type power plug. The safe operating conditions.
Page 5 Three-phase alternating tions are fully understood and met. current Alternating Current (AC). The Keysight email address is required by EU directives applicable to our A WARNING denotes a hazard. It Standby Power. Unit is not product.
Page 6 It includes the marking’s identifier be separated from normal waste for code. disposal. To return unwanted products, contact your local Keysight office, or for more information see http://about.key- sight.com/en/companyinfo/environ- ment/takeback.shtml. China Restricted Substance Product Label. The EPUP (environmental pro-...
Page 7: Table Of Contents
AXIe Chassis Description......... . . 2 M9502A 2-Slot AXIe Chassis at a Glance......4 M9505A 5-Slot AXIe Chassis at a Glance.
Page 8 To Monitor Chassis Temperature: ....... . . 71 viii Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 9 M9502A Backplane........
Page 10 To Replace the Power Supply Unit ....... . . 118 To remove the PSU from the M9502A ......118 To remove the PSU from the M9505A .
Page 11: Introduction
Product Warranty A NOTE calls the user’s attention to an important point or special information in the text. This version of the M9505A/M9502A User Guide supports and describes features of the chassis firmware revision 1.3.23 (and later). This version of firmware adds features that were not available in previous firmware versions.
Page 12: Axie Chassis Description
Introduction AXIe Chassis Description AXIe Chassis Description The Keysight M9502A (2-slot) and M9505A (5-slot) AXIe chassis are modular instrument chassis fully compatible with the AXIe 1.0 specification. They allow multiple application-specific instrument modules to share a common chassis frame, power supply, cooling system, PCI Express (PCIe) Gen 2 data bus, Gigabit LAN hub, local bus for module-to-module signaling, and host PC connections.
Page 13 For the ESM and for each other installed module, appropriate control software and instrument drivers must be installed on the host PC. The M9502A/M9505A AXIe Chassis Startup Guide provides just the basics to get you started with your AXIe chassis. Provided in print with each new chassis, it can also be viewed in PDF form on the Software and Product Information CD.
Page 14: M9502A 2-Slot Axie Chassis At A Glance

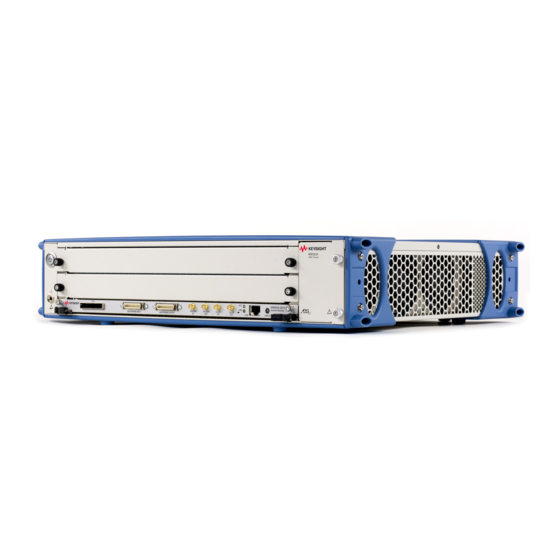

M9502A 2-Slot AXIe Chassis at a Glance M9502A 2-Slot AXIe Chassis at a Glance Designed for portable or small system testing, the M9502A is shipped with bumpers and a carry handle installed for benchtop use (these remove for rack mounting), Slot 1 open and a filler panel module installed in Slot 2.
Page 15 Power Supply Chassis Fans Use Keysight supplied power cord or one with same or better electrical rating. Do not use adapters, extension cords to power the equipment. The AC Voltage source (outlet) must be in proper working order and provide a secure electrical connection.
Page 16: M9505A 5-Slot Axie Chassis At A Glance
Provides PCIe and GbE interfaces, ‘Module’ Assembly Terminal synchronizes timing signals, and distributes power to installed modules Circuit AC Power Chassis Rear Panel Breaker Cord Jack Serial Number Power Supply Unit (PSU) (inside this panel) Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 17 M9505A 5-Slot AXIe Chassis at a Glance Introduction Side Views Carrying Handle Carrying Handle Power Supply Fans Chassis Fans Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 18: Axie Embedded System Module (Esm)
- acts as a Gigabit Ethernet switch; forwards packets along the backplane - connects an external host PC to the chassis - synchronizes timing across all modules through the Keysight Trigger Bus, using an internal or external clock source ESM Front Panel PCIe Connects a remote host PC to the chassis via PCIe.
Page 19: Axie Embedded System Module (Esm) Option U20 With Usb
AXIe chassis trigger lines. Rerouting any of the trigger lines may cause the application software to not function correctly. * The USB port requires AXIe chassis firmware 1.3.37 or later. Refer to M9502A/M9505A User Guide. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 20: Axie Instrument Modules
Module Rear (connectors to chassis backplane) Typical AXIe Instrument Module Retaining Screw Module Insertion/Extraction Handle Module Front Panel Test connections are made at the module’s front panel. The front panel and backplane connectors will vary depending on the module. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 21: Esd Precautions
ESD Precautions Introduction ESD Precautions Keysight’s AXIe chassis and instrument modules are shipped in materials which prevent static electricity damage. These instruments should only be removed from the packaging in an anti-static area ensuring that correct anti-static precautions are taken. Store all modules in anti-static envelopes when not installed.
Page 22: Power-Up And Power-Down
ON With the power cord attached, circuit breaker closed, and the front panel switch in the ON (depressed) position, the chassis is ON. Power is supplied to the ESM and installed modules. Fans will operate as dictated by chassis thermal load. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 23: To Power Up The Chassis
The ESM then powers up each module slot. The remote host PC should be turned on only after all installed modules have performed their initialization—see your module documentation for initialization information. An embedded controller such as the M9536A handles this sequence automatically. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 24 (such as the Keysight M9536A Embedded Controller) to enumerate the chassis before all of the individual modules are ready and therefore not enumerate them. If you have a situation where Keysight Connection Expert and/or the Windows Device Manager consistently do not find specific instrument modules when the chassis powers up, increase the module initialization time.
Page 25: To Power Down The Chassis
ON/STANDBY switch. The main chassis fans will gradually drop in speed to off, and the PSU fans will gradually return to idle speed as the PSU cools. This is normal. If you are using an embedded controller such as the Keysight M9536A, always shut down the Windows operating system before pressing the chassis ON/STANDBY switch.
Page 26: Chassis Firmware, Ivi Driver, And Io Libraries Matrix
18.2 18.2 1.3.46 (for shmm 500) If you are using an embedded controller such as the Keysight M9536A, always shut down the Windows operating system before pressing the chassis ON/STANDBY switch. Also, ensure that the embedded PC never goes into sleep or hibernate mode. It is possible for the PC to lose its chassis enumeration.
Page 27: Safety-Related Specifications
Safety-Related Specifications Introduction Safety-Related Specifications This section provides a partial set of safety-related Specifications for the Keysight M9502A and M9505A AXIe chassis, to ensure safe startup. Complete specifications are included in the Keysight M9502A/M9505A Data Sheet. Regulatory Safety Conforms to the following:...
Page 28: Chassis Weight
To avoid system resets due to line dropouts, use an uninterruptable power supply. This instrument has auto-ranging line voltage input, be sure the supply voltage is within the specified range and voltage fluctuations do not to exceed 10 percent of the nominal supply voltage. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 29: Related Documentation
Guides, Help files and Data Sheets. Product Warranty To find warranty information on your M9502A or M9505A AXIe chassis, go to www.keysight.com/find/warranty and enter your model number (M9502A or M9505A) in the Product Number field, and enter the serial number from the chassis rear panel in the Serial No.
Page 30 Introduction Product Warranty Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 31 M9502A/M9505A AXIe Chassis User Guide Chassis Installation This chapter begins where the Startup Guide leaves off, and provides the detailed procedures for module installation and removal, bumper removal, rack mounting, and module software installation. Planning the Installation Basic Chassis Verification...
Page 32: Chassis Installation
AXIe module and or system for detailed installation information. Install Software You should have already installed the chassis device drivers and Keysight IO Libraries Suite on your host PC. You should now install any device drivers or Soft Front Panel software required for your installed modules. page...
Page 33: Installing Modules
Installing Modules Chassis Installation Verify Operation Verify that the chassis powers up correctly and that Keysight Connection Expert recognizes the chassis configuration and installed modules (see page 35). Installing Modules The AXIe chassis accept modules conforming to the single slot, 1U AXIe standard.
Page 34: To Remove A Filler Panel Module
15). Plan slot usage. If you are using an embedded controller module, it must be in Slot 1. If there are modules that will be removed often, insert them into the topmost slots. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 35 Locate the (left and right) guide rails for each slot. The example below shows the right side guide rails in the M9505A with all slots empty; typically one or more will be covered. The rails on the M9502A are identical, just fewer.
Page 36 If either handle is misaligned, you will not be able to properly install the module. Slide the module completely into the chassis. When the module’s backplane connectors contact the chassis backplane, you will feel resistance and the Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 37 Ensure that each slot has an instrument or filler panel module installed. Plug in and power up the AXIe chassis. Verify that the chassis fans are operating and free of obstructions that may restrict airflow. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 38: To Remove A Module
The module should now be unseated the module from the chassis backplane and its faceplate from the chassis front panel. Grasp the levers to slide the module out of the chassis. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 39: Mounting The Chassis
AC Input The chassis will operate on 100-240VAC, with input frequency from 50-60 Hz. Maximum input power consumption is 800 VA for the M9502A, 1280 VA for the M9505A. Avoid overloading an electrical circuit. Ensure your power supply matches the AC Input requirements listed above.
Page 40: To Remove The Carry Handle And Bumpers From The M9502A
“To Remove a Module” on page 28. On both the M9502A and M9505A chassis, do not attempt to install the carry handles without the front and rear bumpers. Do not install handle screws without handle and bumpers installed. Handle screws are too long without the other components installed and could result in damage to the chassis.
Page 41: To Remove The Carry Handles And Bumpers From The M9505A
Remove the two #2 Phillips round head screws from each side of both bumpers (8 screws total). Remove the three #1 Phillips flat head screws from the top of each bumper (6 screws total). Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 42 LINE switch. The unit is also equipped with a circuit breaker in the rear of the unit. This switch also removes power from the instrument but is not considered the disconnecting device. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 43: Reinstalling The Bumpers And Carry Handles
(M9502-80011) is available for use with both chassis. The screws are now 14mm long. Tighten the handle screws to 25kgf.cm (21.8 in-lbs). On both the M9502A and M9505A chassis, do not attempt to install the carry handles without the front and rear bumpers. Do not install handle screws without handle and bumpers installed.
Page 44: Setting Up A Host Pc
PC at this time. For Keysight instrument modules, load each module’s Software and Product Information CD into the optical drive of your PC and follow the prompts.
Page 45: Verifying Operation With Modules Installed
Chassis Installation Verifying Operation with Modules Installed In the M9502A/M9505A AXIe Chassis Startup Guide, you should have verified basic power-on operation of the AXIe chassis and communication with the host PC. Subsequently, in this chapter you have installed instrument modules and perhaps rackmounted the chassis.
Page 46: Using The M9536A Embedded Controller Lan Ports
If you installed a Keysight M9536A Embedded Controller in the Keysight AXIe chassis (M9502A or M9505A), there are a total of three LAN ports accessible on the front panels -- two on the M9536A controller and one on the Embedded System Module (ESM).
Page 47: Recommendations
Chassis Installation This section provides overall guidance on selecting and using the M9536A LAN ports. The controller uses the Keysight IO Libraries configuration file to keep track of all instrument connections. Any change to LAN connections after running Connection Expert (adding, removing, or changing LAN cable connections) may cause a change in LAN address and therefore cause Connection Expert to lose track of instruments.
Page 48 IP addresses. With the Keysight M9536A Embedded Controller installed in the AXIe chassis, the x8 PCIe connection on the ESM module is disabled. However, the PCIe cable detect mechanism may reset the hardware when attaching a PCIe cable.
Page 49 The above figure shows the recommended LAN connections to the AXIe chassis/ESM and the M9535A. Two other possible LAN connections are shown in the following figure. Note that you may need to manually add instrument IPO addresses to Keysight Connection Expert. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 50 Chassis Installation Using the M9536A Embedded Controller LAN Ports Figure 4 Possible Alternate LAN Connections. You may need to manually add instrument IP addresses to Keysight Connection Expert. (see text) Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 51: Using An External Controller
Changes to the ESM PCIe or LAN connection are only detected as the ESM is powered up. Perform the following steps when you change either of these two connections: Within Keysight Connection Expert, delete the LAN interfaces (right click on the interface then select Delete). This causes connection Expert to forget all instrument history.
Page 52: Using Multiple Chassis
M9018A Product information CD and on line at: www.keysight.com/find/pxie-multichassis. – MultiFrame is a Keysight feature by which multiple instruments in two or more chassis are interconnected to appear as one integral instrument to the user. In a MultiFrame system, special cabling connects the time base and triggering of the master chassis to all daisy-chained slave chassis.
Page 53: Navigating The Web Interface
Chassis Web Interface. Following those instructions, launch the Web Interface. If you have problems launching the chassis Web interface, check your browser’s proxy settings. When Keysight Connection Expert launches a Web interface for a chassis, it hands off the http://<address> to the browser or dedicated web...
Page 54: Home Page
Firmware Version (see page 110) Clicking Turn On Front Panel Identification Indicator will cause the ESM front panel STATUS light to flash steadily; use this to quickly identify which chassis you are communicating with. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 55: Menu
- View static trigger routing through the Embedded Trigger Routing Page System Module (ESM), using the AXIe chassis crosspoint switch. - To update the chassis firmware on M9502A 2-slot Firmware Update Page and M9505A 5-slot AXIe chassis, which includes the Embedded System Module (ESM) and chassis backplane.
Page 56: Lan Configuration Page
If you are having difficulty ‘finding’ a specific AXIe chassis on a network, you can search by the mDns Instrument Name, which includes the unique chassis serial number. This number is located at the rear of the chassis. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 57: Module Configuration Page
Embedded System Module. Note PCIe PCIe Upstream mode; Connection either Settings, see The above example shows an M9505A chassis with two installed modules (slots 3 and 4) and the Keysight M9536A Embedded Controller in slot 1. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 58: Esm Pcie Upstream Connection Settings
“AXIe Embedded System Module (ESM) Option U20 with USB” on page 9 - Slot 1 (Instrument Hub): An embedded controller (such as the Keysight M9536A) can act as a PCIe root complex when installed in slot 1 of the chassis. This is also known as the “Instrument Hub.”...
Page 59: E-Keying
(62 pair Local Bus). This simply states that the Shelf Manager has given the two modules permission to communicate directly (E-Keying) over the AXIe backplane local bus. Also note that both modules are enabled to use the AXIe Timing STRIG link and the PCI Express fabric. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 60 Navigating the Web Interface Module Configuration Page More information on AXIe E-Keying is available on the AXIe Consortium website: www.axiestandard.org. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 61: Trigger Routing Page
Embedded System Module (ESM). These connections may be applied, saved as a default configuration, and later restored if necessary. For more detailed information on the trigger subsystem, see the M9502A/M9505A AXIe Chassis User's Guide. Please note this page does not control signal routing on module slots. Refer to the routing setup instructions for those modular instrument products.
Page 62 Restore Factory Default button. Then, if you click the Apply Changes button; the factory default becomes the Active State. Complete description, selection and routing instructions for the trigger bus are provided in “Chassis Synchronization and Triggering”, beginning on page Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 63: Chassis Health Page
Navigating the Web Interface Chassis Health Page Click the button to display the Chassis Health page. Note that, in the example below, three fan speeds are shown as below the minimum fan speed limit. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 64: Configure Fan Control
Below that speed, the shelf manager reports an alarm condition for that fan, it attempts to increase fan speed and continues to monitor. Failure of one fan will not result in interruption of power to installed modules. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 65 Conversely, if you manually set the fan speed to a higher value (65 for example), the algorithm sets that fan speed and does not change it unless additional cooling becomes required. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 66: Example Of Chassis Fan Speed
Nominal range (because of hysteresis it is actually a few degrees below the Upper Non-Critical threshold), the chassis fan Current Speed Level begins to gradually slow down, compensating for the reduced heat load. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 67: Axie Chassis Version Information And Fan Speed
35 to 100 range. 1.3.23 1.2.0.x Chassis firmware and the IVI and LabVIEW (and later) (and later) drivers, including the Soft Front Panel interface, were updated to use the 35 to 100 range. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 68 Navigating the Web Interface Chassis Health Page Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 69: Using The Soft Front Panel
M9502A/M9505A AXIe Chassis User Guide Using the Soft Front Panel This chapter provides an overview of the AXIe chassis soft front panel (SFP). The SFP provides the same functionality as the Web Interface. While the Web Interface runs in a browser window and accesses the web server built into the chassis, the SFP is an executable which runs on a PC and communicates to the chassis using the IVI drivers.
Page 70: Starting The Soft Front Panel
However, if you connected the chassis to the host PC via PCIe cable, you must manually add the chassis to the LAN device tree. This is true, even if Keysight Connection Expert has found the chassis and listed it under the PXI device tree.
Page 71: Sfp Screens
Monitor screen The Monitor screen is used to monitor the chassis fan speeds, the temperature sensors, and the chassis voltages. The following graphic shows an M9502A 2-slot chassis with a module in slot 1 that has both Temperature and Voltage sensors.
Page 72 Note that the Allow Control check box in the top-left corner of the window must be checked in order to make changes to the trigger routing. This check box is provided to prevent changes from being inadvertently made to the trigger routing. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 73 The Restore from Default State always restores the Factory Default configuration. The state is saved in the chassis hardware, hence, in Simulation Mode, there is no ability to save or recall states. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 74 Using the Soft Front Panel SFP Screens Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 75: Features And Functions
M9502A/M9505A AXIe Chassis User Guide Features and Functions This chapter explains the monitoring, synchronization, triggering and signal routing options for the AXIe chassis. Chassis Block Diagram Shelf Management Functions To Monitor Fans: To Control Fan Speed: To Monitor Chassis Temperature:...
Page 76: Chassis Block Diagram
SMA connector CLOCK IN / OUT Clock SMA connector MultiFrame INPUT / OUTPUT MultiFrame Mini-D connectors Synchronization and Triggering A block diagram of an M9505A 5-slot AXIe chassis system is presented on the next page. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 77 Chassis Block Diagram Features and Functions Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 78: Shelf Management Functions
(LAN) connection. To Monitor Fans: You can check the individual chassis fan speeds, fan levels, and status. The fan speeds are listed under the Chassis header in the Sensors section of the Chassis Health page. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 79 Upper Critical Increase fan speed to maximum and continue monitoring vendor Upper Non-Recoverable Increase fan speed to maximum, deactivate that module and continue monitoring. This usually implies imminent module damage if operation continues; Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 80: Current Speed Level
Web Interface, which do not persist through a power cycle. For more detailed information on controlling the fans using the Web Interface, refer to “Configure Fan Control” on page 54. The power supply (PSU) fans are controlled automatically, you cannot override them. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 81: To Monitor Chassis Temperature
The Sensors section of the Chassis Health page lists sensor measurements for each module slot. The sensors are vendor-specific, and the type of readings will vary by module. Below is a screen capture of the Sensors section from a chassis with two modules installed. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 82 Features and Functions Shelf Management Functions Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 83: Pcie And Lan Switching (Data Transfer)
- From an instrument hub module in slot 1—the fabric 2 hub—four lanes to each instrument slot through the backplane; protocol is vendor-defined. - Fabric 2 data does not pass through the ESM; you must make external connections to the instrument hub to use fabric 2 data Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 84: Implementing Fabric 2
PCIe. Hybrid Operation: You may connect both LAN and PCIe cables from ESM to host PC. This provides the most operational flexibility and some data throughput advantages over using only PCIe. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 85: Chassis Synchronization And Triggering
Features and Functions Chassis Synchronization and Triggering The Keysight AXIe chassis provides a rich set of signaling (triggering and timing) options. These allow you to achieve time-aligned operation of multiple instruments installed in a single chassis or MultiFrame (interconnected AXIe chassis system).
Page 86: Synchronization
Clock Bus feedback fan out buffer CLK100 [5] CLOCK IN 100 MHz Local Clock Oscillator HCSL MULTIFRAME INPUT CLK100 fan out buffer FCLK [5] MULTIFRAME OUTPUT 100 MHz CLK100 CLK Osc. 3.3V CLOCK OUT Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 87: Selecting A Clock Bus Source
You can extend the clock bus output to external instruments. These are instruments which cannot access CLK100 from that chassis, either via the backplane or MultiFrame connection. They may be external to the AXIe chassis or chassis system. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 88: Triggering
3.3V buffer TRIG [12] MULTIFRAME INPUT Cross Flags (4) Point STRIG [5] Switch MULTIFRAME OUTPUT Flags (4) BLVDS MULTIFRAME INPUT buffer SYNC SYNC MULTIFRAME OUTPUT LVDS SYNC fan out SYNC [5] buffer TRIGGER IN Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 89: Trigger Resources
1 through 4 (MultiFrame to upper chassis) MultiFrame Out Flags – (MultiFrame connector to upper chassis) MultiFrame Out SYNC Each type of trigger output signal is explored in detail, after a closer look at the Crosspoint Switch. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 90: Crosspoint Switch
The default input for all outputs is “Static 0”. If you don’t specify the input signal for a specific output signal, the input signal will be logic 0 by default for that output signal. The detailed trigger diagram “M950x Trigger Subsystem” is presented on page Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 91 Chassis Synchronization and Triggering Features and Functions Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 92: Trig
Using the chassis Web Interface, on the Trigger Routing page, check the Output Enable box to enable the TRIG line as an output signal. From the Input Signal drop down list, select an input signal for the output-enabled TRIG output. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 93: Strig
Slot n BLVDS Buffer BLVDS Buffer BLVDS Buffer 100W 100W 100W BLVDS Buffers 100W 100W 100W Chassis Backplane Use When: The STRIG bus’s trace matched lines ensure the lowest skew when synchronously triggering multiple modules. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 94: Sync
CLK100 lines use identical fan out buffers and are trace length matched to 0.25” to operate as a pair, with the following characteristics: – Point-to-point between the ESM (logical slot 1) and instrument slots (physical slots 1 through n) – Slot terminated with 100 differential Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 95 In the above example, SYNC will be driven high synchronously on the next rising edge of CLK100 after an external SMA trigger input signal is received. To drive the line asynchronously, uncheck the Sync routed through crosspoint box; the external trigger will drive SYNC directly. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 96: Trigger Out
MultiFrame chassis that use asynchronous flagging. A flag is an asynchronous pulse, which any instrument in any chassis can generate in response to a signal transition or program command. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 97: Multiframe Sync
To use MultiFrame SYNC as a Trigger Output A SYNC signal output from the master chassis in the MultiFrame will be passed to the other chassis over the MultiFrame cable, as MultiFrame Sync. To Output MultiFrame SYNC Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 98 Signal drop down list, select the input signal for SYNC. The master chassis will output the SYNC signal over the MultiFrame cable. Only one chassis in the MultiFrame may be set to output on the shared SYNC line. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 99: Multiframe Operation
This section introduces basic MultiFrame connection and features, based on a simple MultiFrame of three M9505A chassis. MultiFrame operation is a Keysight feature, not an AXIe specification. Cables may be hot plugged. MultiFrame operation is different from multiple chassis operation; see “How does a multiple chassis system differ from a MultiFrame...
Page 100: Interconnection
Y1224A cable Slave Chassis 1 Slave Chassis 2 3. Make LAN connections between each chassis LAN Switch 2. Make PCIe x8 and Host PC connections between each chassis and Host PC Rackmount Host PC Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 101: To Connect A Multiframe Chassis
Features and Functions To Connect a MultiFrame Chassis: Daisy-Chain the Chassis Interconnect the MultiFrame ports as follows: Using a Keysight Multi-Chassis cable (see table below), connect the Master Chassis’s MULTIFRAME OUTPUT port to the first slave chassis’s MULTIFRAME INPUT port.
Page 102: Lvds Local Bus
LVDS Local Bus LVDS Local Bus The M9502A and M9505A chassis backplane provides a local bus with 62 differential signaling pairs between each pair of adjacent instrument physical slots. This bus is the Low Voltage Differential Signaling or LVDS bus.
Page 103 * A field replaceable unit is a part that may be removed from a system and exchanged with another part or returned to a factory for service Examples of FRUs may be a module card in a chassis slot, a fan tray, a power supply, and the chassis frame. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 104: E-Keying Process
As a final note, the shelf manager is truly agnostic about specific details of a link protocol. This permits new protocols to be added without modification to the chassis. For additional information on E-Keying, refer to the AdvancedTCA specification (http://www.picmg.org) and the AXIe specification (http://www.axiestandard.org). Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 105: For Module Developers
M9502A/M9505A AXIe Chassis User Guide For Module Developers This chapter provides a detailed look at the AXIe chassis backplane and connectors, provided as a quick reference for AXIe module developers. Module Types ATCA and AXIe Requirements ATCA Requirements and Exceptions for AXIe 1.0 ®...
Page 106: Module Types
1. That hub may use AXIe trigger bus features, communicate between adjacent modules using the local bus, and provide the hub for a secondary x4 backplane data fabric to slots 2 through 5. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 107: Atca And Axie Requirements
Overview The Keysight AXIe (ATCA eXtensions for Instrumentation) chassis backplanes used in the M9502A and M9505A comply with the AXIe 1.0 Base Architecture Specification. AXIe 1.0 is based on AdvancedTCA® (ATCA) architecture, expanded with several eXtensions, all of which will remain electrically compatible with standard ATCA blades.
Page 108 Zone 2 connector contacts, and devices implement different signaling schemes as defined in the AXIe specification. AXIe modules must implement electronic keying appropriate to prevent incompatible connections between AXIe and ATCA devices installed in either system environment. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 109: Axie Extensions To Advancedtca
2 star. An instrument hub module must be installed in slot 1 (logical slot 2), while other AXIe modules can be installed in any slot. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 110: Chassis Backplane Connections
Chassis Backplane Connections M9502A Backplane The photo below reveals the M9502A backplane, with modules removed from all slots. The backplane provides Zone 2 connectors P20, P21, P23, P24 and Zone 1 connector J10. Connector designations are shown for instrument slot 1.
Page 111: M9505A Backplane
The photo below reveals the M9505A backplane, with modules removed from all slots. The backplane provides connectors P20 through P24 and J10. Connector designations are shown for instrument slot 1. This layout differs from the M9502A backplane in that the M9505A provides an additional slot 1 connector, P22, to implement the data fabric channel 2 star.
Page 112: Zone 1 Connector Layout
Connector J10 will physically accommodate P10 pins 17-24 from a legacy ATCA module, but with no functionality. Complete circuit definitions and design specifications can be found in the ATCA 3.0 base specification. Pin assignments are listed on the following page. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 113: Zone 1 Pin Assignments
Hardware address bit 5 Hardware address bit 6 HA7/P Hardware address bit 7 (odd parity bit) SCL_A IPMB clock, Port A SDA_A IPMB data, Port A SCL_B IPMB clock, Port B SDA_B IPMB data, Port B Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 114: Zone 2 Connector Layout
The pin layout for P20 (typical for all Zone 2 connectors) is illustrated below the slot photo. These plugs use male contacts; the mating module connectors J20 through J24 use female contacts. Note the areas shown with red boxes; these are for alignment/keying. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 115: Zone 2 Connector Usage
Channel 2 star hub one x4 connection each to slots 3 through 5 Complete circuit definitions and design specifications can be found in the ATCA and AXIe specifications. Pin assignments are listed on the following page. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 116: Zone 2 Pin Assignments
Hub to Slot 4 TX0[4]+ TX2[4]– RX0[4]+ RX0[4]– TX1[4]+ TX1[4]– RX1[4]+ RX1[4]– Fabric Ch 2 TX2[3]+ TX2[3]– RX2[3]+ RX2[3]– TX3[3]+ TX3[3]– RX3[3]+ RX3[3]– Hub to Slot 5 TX0[3]+ TX0[3]– RX0[3]+ RX0[3]– TX1[3]+ TX1[3]– RX1[3]+ RX1[3]– Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 117 Local Bus LBL[30]+ LBL[30]– LBL[31]+ LBL[31]– LBR[30]+ LBR[30]– LBR[31]+ LBR[31]– LBL[32]+ LBL[32]– LBL[33]+ LBL[33]– LBR[32]+ LBR[32]– LBR[33]+ LBR[33]– LBL[34]+ LBL[34]– LBL[35]+ LBL[35]– LBR[34]+ LBR[34]– LBR[35]+ LBR[35]– LBL[36]+ LBL[36]– LBL[37]+ LBL[37]– LBR[36]+ LBR[36]– LBR[37]+ LBR[37]– Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 118 For Module Developers Chassis Backplane Connections Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 119: Troubleshooting And Service
Normal Chassis Operating Behavior Chassis Hardware Troubleshooting User-Replaceable Parts To Replace the Power Supply Unit To remove the PSU from the M9502A To remove the PSU from the M9505A To Replace the Fan Tray To Replace the Embedded System Module...
Page 120: Updating The Chassis Firmware
Keysight internal use only. A firmware revision example: F2AX-1.3.37-0103-A002e-CA1.0-DA1.0-E1.3 This example shows an M9502A chassis with firmware revision 1.3.37. The backplane revision is 0103 and component A is at revision 002e, component CA is at revision 1.0, component DA is at 1.0, and component E is at 1.3. Refer to the M9502A/M9505A AXIe Chassis Firmware Update Guide for specific details regarding updating the chassis firmware.
Page 121: Troubleshooting
Troubleshooting and Service Troubleshooting Overview The Keysight AXIe chassis is typically used as part of a complex test system, where system refers to the complete hardware/software system including: - One or more AXIe chassis with installed application modules - Connections from modules to devices under test (DUT)
Page 122 – The PSU fans will slowly drop in speed, while continuing to cool the PSU from operating temperature to standby temperature. – Once the PSU cools down, the PSU fans will return to a steady idle speed. OFF: Open the circuit breaker (OFF). You should observe: Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 123: Chassis Hardware Troubleshooting
Visually check that all three (M9502A) or six (M9505A) fans are turning. If any fans are not turning, check for and remove obstructions. If there is evidence of...
Page 124: Power Supply Unit (Psu)
Most of these switches are reserved for factory testing purposes or reserved for future use and should not be changed. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 125 A DIP switch (SW6) on the ESM configures the PCIe operational mode setting. The default mode is PCIe Gen 2 operation. If your controller cannot enumerate the AXIe chassis, switch to PCIe Gen 1 speed behavior. See the following figure. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 126 Any interruption of the protective conductor inside or outside of the product is likely to make the product dangerous. Intentional interruption is prohibited. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 127: User-Replaceable Parts
AXIe Embedded System Module (ESM) M9505-00132 5-Slot Chassis Bumper Kit (includes two handles) M9505-47901 5-Slot Chassis Rackmount Kit M9505-00020 AXIe Filler Panel Module N5650-00080 Other parts originally supplied with the mainframe may be available from Keysight. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 128: To Replace The Power Supply Unit
To remove the PSU from the M9502A Tools needed: #8 and #10 Torx drivers. Power down and disconnect the power cord from the chassis.
Page 129 Remove the four #10 Torx round head screws holding the PSU to the rear panel. While holding the rear panel firmly in one hand, pull the PSU out of its blue chassis connector, in the direction shown below. Rear edge of top panel Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 130: To Remove The Psu From The M9505A
Do not remove the similar screws holding the circuit breaker to the rear panel. M9505A rear panel The rear panel is now detached from the chassis. Take care not to strain the power connections between the rear panel and chassis. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 131 Remove the #8 Torx flat head screw holding the PSU end bracket to the rear panel. While holding the rear panel firmly in one hand, pull the PSU/end bracket/shield assembly out of its chassis connector, in the direction shown below. Rear edge of top panel Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 132 The removed PSU/end bracket/shield assembly is show below, in proximity to its chassis connector... Rear edge of top panel Remove the four #8 flat head Torx screws from the top and bottom of the PSU outer shield and end bracket (8 screws total). Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 133 PSU outer shield PSU inner shield PSU end bracket Slide the PSU out of the inner shield, as shown below. PSU inner shield The removed PSU: To install the PSU, reverse these steps. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 134: To Replace The Fan Tray
Troubleshooting and Service To Replace the Fan Tray To Replace the Fan Tray The illustrations below show the M9502A; the procedure is identical for the 5-slot chassis. Power down and unplug the AXIe chassis. To prevent electrical shock, disconnect the instrument from mains before attempting to replace components.
Page 135: Glossary
M9502A/M9505A AXIe Chassis User Guide Glossary ® ® ® Many of the terms in this manual and glossary are AXIe , ATCA or PICMG specific. Refer to the relevant specifications for more detail on these terms. ADB-6100AX Apple Desktop Bus (ADB) is an obsolete bit-serial computer bus for connecting low-speed devices (mouse, keyboard, etc.) to a computer.
Page 136 For more information, refer to Keysight's Multiple PXIe and AXIe Chassis Configuration tool. This tool is available on the M9018A Product information CD as well as on line at: www.keysight.com/find/pxie-multichassis.
Page 137 TPM Trusted Platform Module. An IC designed by the Trusted Computing Group (TCG) for storing passwords, encryption keys, digital certificates, etc. UXGA Abbreviation for Ultra eXtended Graphics Array referring to a standard monitor resolution of 1600×1200 pixels. Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 138 Glossary Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 139 Power-Up controlling Cooling Status Health, monitor module Cross Home Page,Web Synchronization,MultiFrame Host PC Rack mounting How does a multiple chassis Replaceable parts Cross system differ from a Replacing ESM Triggering,MultiFrame MultiFrame system? Crosspoint Switch Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 140 User-Replaceable Parts Ventilation Verification, chassis version, firmware Web Interface Zone 1 Connector Layout Zone 1 Connector Usage Zone 1 Pin Assignments Zone 2 Connector Layout Zone 2 Connector Usage Zone 2 Pin Assignments Keysight M9502A/M9505A AXIe Chassis User Guide...
Page 142 This information is subject to change without notice © Keysight Technologies 2014-2022 Published in USA Edition 11, March 2022 *M9502-90005* M9502-90005 www.keysight.com...
