A300
使用说明书
本说明书的内容可能会随版本更改, 如有变动, 恕不另行通知,
如需最新说明, 请到https://smsl-audio.com/portal/product/support
下载最新版本的说明书。
Ver 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the A300 and is the answer not in the manual?

Questions and answers

Summary of Contents for S.M.S.L A300

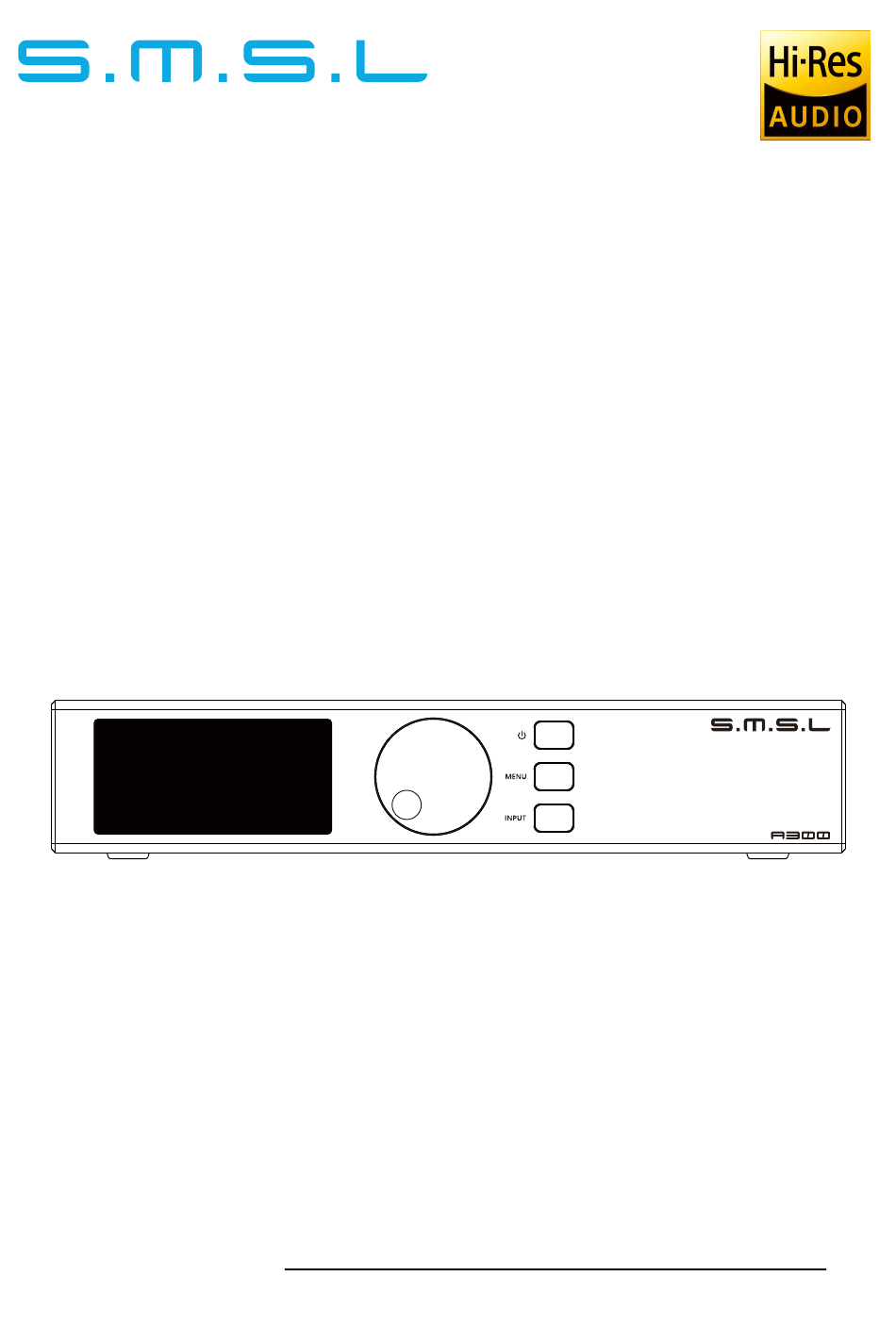

  • Page 1 A300 使用说明书 本说明书的内容可能会随版本更改, 如有变动, 恕不另行通知, 如需最新说明, 请到https://smsl-audio.com/portal/product/support 下载最新版本的说明书。 Ver 1.0...
  • Page 2 A300 安全注意事项 请将本音响系统安装在通风良好、 阴凉、 干燥、 干净的位置, 远离直射阳光热源 、 振动、 灰尘、 潮湿或寒冷。 只能使用本机指定的电压。 使用高于指定数值的电压很危险, 而且可能导致火 灾, 损坏本机或造成人身伤害。 对于使用高于指定电压造成的任何损害, 我司 将不负任何责任。 不要试图自行改造或修理本机。 如果需要任何服务, 请与销售或者我司客服人 员联系。 不管有任何理由, 都没有打开机壳的必要。 如果打算长时间不使用本机 (比如度假时) , 请从墙壁交流电源插座上断开电 源线的连接。 重要提示: 本说明书所提到的产品规格和资讯仅供参考。 如有内容更新, 恕不另行通知。 保修条款 一、 服务期限 佛山双木三林科技有限公司承诺产品的良好品质, 产品自售出之后7天内 正常使用情况下出现故障, 客户可以选择退货或者保修 (不影响二次销售...
  • Page 3 A300 特点 德国英飞凌新款数字大功率放大器芯片, 更高质的同时, 效率高, 能耗低; 使用了日本NJRC公司电子音量控制芯片NJW1194, 精准的音量控制和超低的失 真度; 可桥接 (BTL) 成更大功率的单通道功放, 来驱动大音箱。 内置SMSL SDB专利音效和高/低音调节功能, 轻松匹配各种喇叭和音乐; 内置高通滤波电路, 滤除超低音, 驱动主音箱, 配合超低音组成2.1系统。 具备超低音信号前级输出, 方便连接有源低音炮组成2.1系统。 蓝牙5.0接收, 更远的传输距离, 音质更好! 全铝合金CNC加工工艺, 采用阳极氧化技术, 做工精细, 触感一流; 人性化操作系统简单易懂, 配备全功能遥控功能; 大量采用发烧级音频元件以提升主观听感; 高品质镀金输入、 输出端子; 完善的过热, 过流等保护电路; 内置高品质大功率音频专用开关电源。...
  • Page 4 A300 技术参数 输入接口 ................. RCA , BT , USB THD+N ....................0.004% 信噪比 ....................103dB 通道分离度 ..................... 85dB 高通模式时, 截止频率 ................50Hz 输入灵敏度/输入阻抗..............280mV/22kΩ 输出功率 立体声............165Wx2(4Ω) / 85Wx2(8Ω) BTL ................330Wx1(4~8Ω) 消耗功率 ..................40W(正常音量) 体积................210.5X41X198mm(WxHxD) 重量....................1.3kg / 2.86Lbs SMSL保留在不另行通知的情况下进行可能导致规格或特性更改的改进的权利。...
  • Page 5 A300 关于遥控器 如果遥控器距离本机很近时操作仍无效, 请用新电池更换。 如果要长时间不使用遥控器, 请取出遥控器的电池。 按照电池处置的地方性法规处置废旧电池。 遥控器的使用 开关机 向上 进入菜单/确认 进入二级菜单 返回 向下 输入选择 静音 FN按键 音量加 音量减 注 意 遥控器请使用2节7号(AAA)电池...
  • Page 6 A300 部件介绍 9 10 11 显示屏 显示屏 红外接收窗 红外接收窗 旋钮 旋钮 输入按钮 输入按钮 菜单按钮 菜单按钮 开关机按钮 开关机按钮 BTL时的右声道输出 BTL时的右声道输出 模拟输入2 模拟输入2 模拟输入1 模拟输入1 USB输入 USB输入 蓝牙天线 蓝牙天线 右声道输出 右声道输出 左声道输出 左声道输出 电源输入 电源输入 超低音输出 超低音输出...
  • Page 7 A300 操作说明 菜单介绍 开机时会显示 意思为A300。 在切换输入会显示 线路输入1 线路输入2 蓝牙输入 电脑输入 3种EQ菜单 Direct ( 直通) Tone ( 自定义) SDB (SMSL专利音效) Bass ( 低音加强音效) Super Bass ( 低音超强音效) Rock ( 摇滚乐音效) Soft ( 柔和音效) Clear ( 清晰音效) 在高音调节会显示 ← → 在低音调节会显示 ←...
  • Page 8 A300 操作说明 进入菜单方法 短按MENU键进入不同的选项, 旋转旋钮进行选择, 选择之后长按MENU退出; 使用遥控器进入菜单, 进行选择。 IN1和IN2使用说明 模拟信号RCA输入到IN1或者2, A300选择对应的输入, 播放音乐。 USB使用说明 使用配套的USB线连接电脑, A300选择USB模式, 电脑的声音选项将USB AUDIO 选择为输出, 建议将电脑音量最大。 BT使用方法 切换到bt, 手机打开蓝牙, 搜索名称SMSL BT5.0C, 点击连接, 手机播放音乐, 建议将手机音量调到最大使用。 桥接模式使用说明 断电状态下请先将喇叭线和IN1/2的L通道连接好, 通电选择br1, 此时根据 输入信号切换到IN1/2, 播放音乐。 (桥接模式下 , 只有IN1/2的L通道输入信号)...
  • Page 9 A300 操作说明 BTL-R说明 桥接模式下, IN1/2的声道接了信号, BTL-R就会输出IN1/2的右声道信号。 SW说明 输出重低音信号, 需要连接有源低音炮。 高通模式HF1说明 立体声模式下, 选择高通模式, 那么立体声就删除了重低音部分, SW接上 有源低音炮, 组成2.1音箱。...
  • Page 10 A300 USER MANUAL The contents of this manual may change with the version, if there is any change without notice, please go to https://www.smsl-audio.com/portal/product/support Download the latest version of the manual. Ver 1.0...
  • Page 11: Safety Notes

    Dismantling, refitting, repairing by user in private. Causing damage by using some fittings instead of the designative or accredited ones. Cannot provide credible proof of purchase. 4.Sending it back to our company for repairing. 5.Contact your S.M.S.L Audio reseller for a return or replacement.
  • Page 12 A300 Features German Infineon's new digital high-power amplifier chip has higher quality, high efficiency, and low energy consumption; Using Japanese NJRC company electronic volume control chip NJW1194, precise volume control, and ultra-low distortion; It can be bridged (BTL) into a single-channel amplifier with a higher power to drive large speakers;...
  • Page 13: Specifications

    A300 Specifications Input ..................RCA , BT , USB THD+N ....................0.004% SNR ......................103dB Channel separation ................... 85dB Cutoff frequency (in high pass mode) ............50Hz Input Sensitivity / Input Impedance..........280mV/22kΩ Output Power stereo............165Wx2(4Ω) / 85Wx2(8Ω) BTL ................330Wx1(4~8Ω) Power consumption............40W(normal volume) Size................210.5X41X198mm(WxHxD) Weight.....................1.3kg / 2.86Lbs...
  • Page 14: Operating The Remote Control

    A300 Remote control Install 2 x AAA batteries as instructions. When using the remote control, point it toward the remote con-trol signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place obstructions between the main unit and the remote control.
  • Page 15 A300 Display Interface and Instructions 9 10 11 Display Remote window Knob Input button Menu button Power ON/OFF Right channel output at BTL Analog input 2 Analog input 1 USB input Bluetooth antenna Right channel output Left channel output Power input...
  • Page 16 A300 Operating Instructions Menu introduction When turned on, it will display meaning A300. When switching the input it will display Line in 1 Line in 2 Bluetooth Input Computer Input 3 EQ menus Direct Tone Bass Super Bass Rock Soft Clear ←...
  • Page 17 Use the remote control to enter the menu and make a selection. IN1 and IN2 Instructions for Use The analog signal RCA input is selected to IN1 or 2, the A300 selects the corresponding input to play music. USB Instructions for Use...
  • Page 18 A300 Operating Instructions Description of BTL-R In bridge mode, the channel of IN1/2 is connected to the signal, and the BTL-R will output the signal of the right channel of IN1/2. Description of SW To output a subwoofer signal, an active subwoofer needs to be connected.
