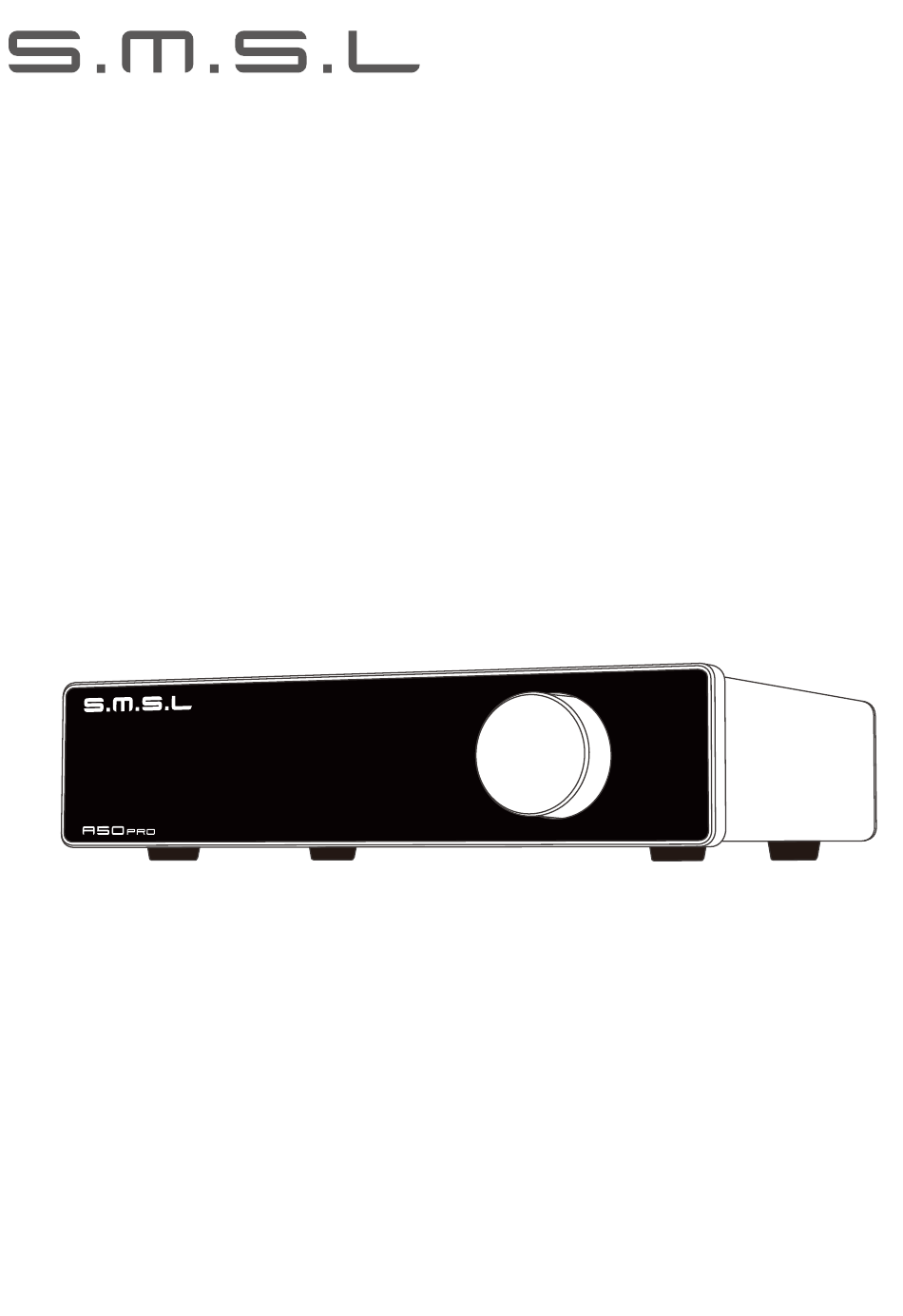

A5O
PRO
使用说明书
https://smsl-audio.com/
本说明书的内容可能会随版本更改,如有变动,恕不另行通知
Ver 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the A50 PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for S.M.S.L A50 PRO

  • Page 1 使用说明书 https://smsl-audio.com/ 本说明书的内容可能会随版本更改,如有变动,恕不另行通知 Ver 1.0...
  • Page 2 A5 OP R O 技术参数 请将设备安装在通风良好、 阴凉、 干燥、 干净的位置, 远离直射阳光热源、 振动、 灰尘、 潮湿或寒冷。 只能使用本机指定的电压。 使用高于指定数值的电压很危险, 而且可能导致火 灾, 损坏本机或造成人身伤害。 对于使用高于指定电压造成的任何损害, 我司 将不负任何责任。 不要试图自行改造或修理本机。 如果需要任何服务, 请与销售或者我司客服人 员联系。 不管有任何理由, 都没有打开机壳的必要。 如果打算长时间不使用本机 (比如度假时) , 请从墙壁交流电源插座上断开电 源线的连接。 重要提示: 本说明书所提到的产品规格和资讯仅供参考。 如有内容更新, 恕不另行通知。 保修条款 一、 服务期限 佛山双木三林科技有限公司承诺产品的良好品质, 产品自售出之后7天内 正常使用情况下出现故障,...
  • Page 3 A5 OP R O 产品特点 使用2片德国英飞凌新型碳化硅数字功率放大器芯片, 更高质的 同时 , 效率高达92% , 进一步降低能耗; 高通、 低通各10个分频点可调, 超低音输出音量独立调整, 完美适 应不同的无源主声道音箱及无源超低音音箱 , 组成2.1音响系统。 支持蓝牙、 光纤、 HDMI音频、 USB、 线路输入; 新的蓝牙5.0技术, 兼具低功耗和高音质。 支持HDMI(ARC)音频回传功能, 用于连接电视的HDMI接口, 实现 对电视音频的输出; 电子音量控制, 杜绝电位器调音量时的杂音。 光纤最高支持到24bit/192kHz的信号输入; 具备音效调节, 高低音单独可调。 具备pop声控制电路, 开关机没有pop声。 大功率电源适配器, 适配音频的动态响应。 极致的小体积, 放置更加灵活。...
  • Page 4 A5 OP R O 技术参数 输入接口............BT / USB / HDMI(ARC) / 光纤 / LINE IN 输出功率 ............主声道 70Wx2(4欧, 2通道驱动) ...............超低音 100W(2欧, 1通道驱动) 频率响应 .....................20Hz-20kHz 高低音调节范围 ...................-5dB ~ +5dB 总谐波失真 ....................0.013% 通道分离 ....................-94dB(1KHz) 输入灵敏度......................-10dB 信噪比 ......................102dB 消耗功率 ......................36W 待机功率 ......................<0.5W 尺寸 ................134x33x103mm (WxHxD) 重量.........................0.30kg...
  • Page 5 A5 OP R O 关于遥控器 如果遥控器距离本机很近时操作仍无效, 请用新电池更换。 如果要长时间不使用遥控器, 请取出遥控器的电池。 按照电池处置的地方性法规处置废旧电池。 遥控器的使用 开关机 向上 进入菜单/确认 功能- 功能+ 向下 输入选择 静音 FN按键 音量加 音量减 注 意 遥控器请使用2节7号(AAA)电池...
  • Page 6 A5 OP R O 部件介绍 功能旋钮 线路输入 显示屏 超低音喇叭输出 蓝牙天线 右声道喇叭输出 USB输入 左声道喇叭输出 HDMI输入 电源输入接口 光纤输入...
  • Page 7 A5 OP R O 功能介绍 长按旋钮关闭电源, 长按打开电源。 在开机状态下, 每次短按旋钮, 依次进入 “输入模式、 EQ调节、 低音调节、 高音调节、 低通调节、 高通调节、 超低音调节、 音量调节” 短按旋钮一下, 进入切换输入源, 旋转旋钮, 在 “蓝牙、 USB、 HDMI音频、 光纤、 LINE IN” 之间切换。 EQ调节: Direct 关闭EQ Tabebuia (风铃术音效) Bass (低音加强音效) Super Bass (低音超强音效) Rock (摇滚乐音效) Soft (柔和音效)
  • Page 8 A5 O PR O USER MANUAL https://smsl-audio.com/ The contents of this manual may be changed with the edition, and are subject to change without notice! Ver 1.0...
  • Page 9: Warranty Terms

    A 5O PR O Safety Notes Install this unit in a well ventilated, cool, dry, clean place-away from direct sunlight, heat sources, vibration, dust, moisture, or cold.. Use the voltage specified on this unit Only. Using this unit with a higher voltage than specified is dangerous and may cause fire , damage to this unit, or personal injury.
  • Page 10 A 5O PR O Features Using 2 pieces of German Infineon new silicon carbide digital power amplifier chip, higher quality at the same time, efficiency up to 92%, further reducing energy consumption; High-pass, low-pass each 10 crossover points adjustable, subwoofer output volume adjusted independently, perfectly adapted to different passive main channel speakers and passive subwoofer speakers, composed of 2.1 speaker system.
  • Page 11 A 5O PR O Specification Inputs..............BT/USB/HDMI(ARC)/OPTICAL/LINE IN Output power ...........main channel 70W x 2 (4Ω,2ch driven) ................subwoofer 100W(2Ω,1ch driven) Frequency response ..................20Hz-20kHz BASS or TREBLE GAIN ..................-5dB ~ +5dB THD+N ........................0.013% Channel separation ..................-94dB(1KHz) Input sensitivity ......................-10dB SNR ..........................102dB Power consumption......................36W Standby power......................<0.5W Dimensions ..................134x33x103mm...
  • Page 12 A 5O PR O Remote control Install 2 x AAA batteries as instructions. When using the remote control, point it toward the remote con-trol signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place obstructions between the main unit and the remote control.
  • Page 13 A 5O PR O Display Interface and Instructions Knob Line in Display Subwoofer speaker out Right speaker output Bluetooth antenna Left speaker output USB Input Power input HDMI Input Optical Input...
  • Page 14 A 5O PR O Instructions for use Long press the knob to turn off the power, short press to turn on the power. Under power-on condition, press the knob shortly each time to enter "Input Mode, EQ Adjustment, Bass Adjustment, Treble Adjustment, Low Pass Adjustment, High Pass Adjustment, Subwoofer Adjustment, Volume Adjustment"...
