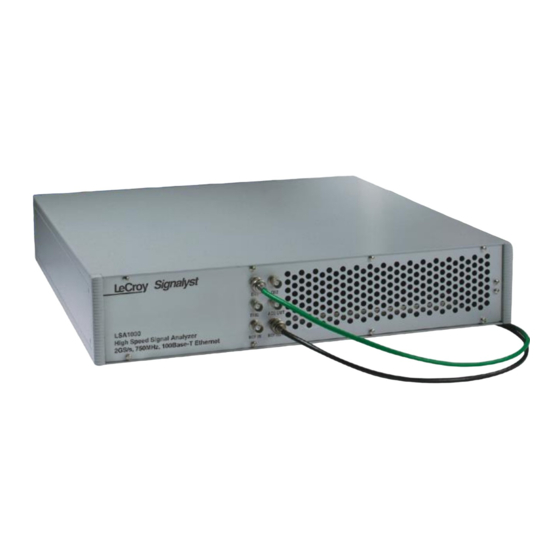

LeCroy LSA1000 Operator's Manual
  1. Manuals
  2. Brands
  3. LeCroy Manuals
  4. Measuring Instruments
  5. LSA1000
  6. Operator's manual

LeCroy LSA1000 Operator's Manual

Hide thumbs Also See for LSA1000:
Table of Contents

Advertisement

Quick Links

Download this manual
sales@artisantg.com
artisantg.com
(217) 352-9330 |
|
Visit our website - Click HERE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSA1000 and is the answer not in the manual?

Questions and answers

Related Manuals for LeCroy LSA1000

Summary of Contents for LeCroy LSA1000

  • Page 1 sales@artisantg.com artisantg.com (217) 352-9330 | Visit our website - Click HERE...
  • Page 2 Operator’s Manual LeCroy Signalyst LSA1000 Revision B — October 1998...
  • Page 3 Tel: (41) 22 719 21 11, Fax: (41) 22 782 39 15 Internet: www.lecroy.com Copyright © October 1998, LeCroy. All rights reserved. Information in this publication supersedes all earlier versions. Specifications subject to change. LeCroy, ProBus and SMART Trigger are registered trademarks of LeCroy Corporation. MathCad is a registered trademark of MATHSOFT Inc.

  • Page 4: Table Of Contents

    LSA1000: Legacy of the Oscilloscope ..........vi Chapter 1 — Read This First! Warranty and Product Support ............1–1 Chapter 2 — About the LSA1000 What the LSA1000 Does and How ..........2–1 Block Diagram..................2–2 Capture ...................... 2–5 Measure ..................... 2–9 Analyze ......................
  • Page 5 Contents Appendix A — Specifications Appendix B — NET_CON Source Code Appendix C — Parameter Measurement Appendix D — Program Examples Appendix E — Suggestion Forms Index...
  • Page 6 Contents...

  • Page 7: Explaining The Lsa1000

    Chapter 1 describes warranty, maintenance agreements, service and return procedure. Chapter 2 covers the instrument’s architecture, as well as  the fundamental technical concepts behind the LSA1000, to show how these concepts have been integrated to deliver superior performance. ...

  • Page 8: Lsa1000: Legacy Of The Oscilloscope

    It should be noted, for example, that all commands that refer to "divisions" on a DSO are applicable to the LSA1000: there are eight divisions full scale in the vertical (voltage) direction, and 10 divisions in the...
  • Page 9 Foreword...

  • Page 10: Warranty And Product Support

    Products not made by LeCroy are covered solely by the warranty of the original equipment manufacturer. Under the LeCroy warranty, LeCroy will repair or, at its option, replace any product returned within the warranty period to a LeCroy authorized service center.
  • Page 11 — infrequently — minor logic changes. However, be assured the LSA1000 itself is in full order and incorporates the most up-to-date circuitry. LeCroy frequently updates firmware and software during servicing to improve LSA1000 performance, free of charge during warranty.
  • Page 12 How to Return a Product Contact the nearest LeCroy Service Center or office to find out where to return the product. All returned products should be identified by model and serial number. You should describe the defect or failure, and provide your name and contact number. In the case of a product returned to the factory, a Return Authorization Number (RAN) should be used.
  • Page 13 ➢ See Appendix A of the Operator’s Manual for the LSA1000’s technical specifications. Software Assistance… Before contacting us with software-related questions, try the following: ➢ Review Chapter 5 and Appendix D of the Operator’s Manual,...
  • Page 14 Read This First! 1–1...

  • Page 15: What The Lsa1000 Does And How

    This chapter covers basic digital concepts and the benefits of using the instrument. Overview The LSA1000 has 1 GHz analog bandwidth. It has two channels, and a 1 GS/s, eight-bit flash Analog-to-Digital Converter (ADC) for each channel. Faster sampling rates can be achieved by combining channels —...

  • Page 16: Block Diagram

    Block Diagram Signalyst ➢ LSA1000 What Can it Do? The LSA1000 delivers the same powerful performance as a high-end LeCroy DSO (Digital Storage Oscilloscope) in a design optimized for system integration, with: ➢ Capture of one-off (single-shot) events, stored in memory ➢...
  • Page 17 Sample Rate Computer Basic Elements These are the basic elements that make up the LSA1000: ➢ Amplifier — amplifies and conditions the input signal so that it can be measured most effectively ➢ Analog-to-Digital Converter (ADC) — converts the analog...
  • Page 18 Long-memory LSA1000s allow operation at the highest possible sample rate, and over a far longer capture time. The LSA1000’s fidelity in reconstructing the input signal is affected mainly by these three parameters. The bandwidth must be sufficient to allow all the signal components to pass through the signal- conditioning system.

  • Page 19: Capture

    The captured input data signal is transferred to memory for measurement and analysis. Analog–Digital Conversion High-speed LSA1000 performance is made possible by the use of advanced flash ADCs whose vertical resolution guarantee a clear representation of the signal. These ADCs measure the voltage level at evenly spaced intervals and store the digitized value in high-speed dedicated memory.
  • Page 20 And multiple units can be synchronized using external reference clock connections. Triggering Trigger rates of up to 1 GHz are possible with the LSA1000. Single Edge triggers are described by a source, coupling, slope, and level condition.
  • Page 21 The amplitude and range of trigger signals and levels are limited as follows: ➢ ECL or TTL threshold crossing with EXT as trigger source. Upper Region Trigger Level Lower Region Time Triggers Edge Window Trigger: trigger when the signal leaves the window region. ➢...
  • Page 22 In Auto Mode: the LSA1000 automatically captures the signal without waiting for a trigger. NORM In Normal Mode, the LSA1000 will continuously capture the signal as long as a valid trigger is present. If not, the last signal is preserved. SNGL In Single-Shot Mode, the LSA1000 waits for a single trigger to occur, then captures the signal and stops acquiring.

  • Page 23: Measure

    Waveform mathematics can yield final answers instead of raw data. For example, inputs from voltage and current transformers can be multiplied together to calculate power. An important LeCroy LSA1000 feature is the ability to ‘daisy-chain’ math functions: a power trace can be integrated to calculate energy, for instance.

  • Page 24: Analyze

    About the LSA1000 Analyze The LSA1000 has the added ability to process and analyze data on-board. Once the analog signal has been converted into digital data, the data can be analyzed either by the LSA1000’s internal digitizer processor or by an external computer. Most current digitizers have a wide analysis spectrum built-in.
  • Page 25 LeCroy’s Versatile Instrument Control Protocol (VICP) allows much of the behavior of GPIB to be emulated using Ethernet. Users can exercise the full functionality of LSA1000 from the host PC using the following easy-to-use software tools. These tools also simplify users' programming development for own specific applications.

  • Page 26: The Lsa1000 - Front And Back

    About the LSA1000 The LSA1000 — Front and Back Front Panel ➢ CH 1 and CH 2: signal input channels ➢ LED Power Indicator: indicates power on/off status ➢ Secondary Power Switch: power on/off switching ➢ External Reference Clock In: allows the instrument to be synchronized to an external 10 MHz reference.
  • Page 27 ➢ Main Power Switch: power on/off switching ➢ USB port: Currently disabled. Provision future enhancement. Note: All six BNC connections may be located on the LSA1000 rear, rather than front, panel, depending on the instrument’s mechanical configuration. 2–13...
  • Page 29 About the LSA1000 2–1...

  • Page 30: Installation For Safe And Efficient Operation

    Installation and Safety Installation for Safe and Efficient Operation For safe operation of the LSA1000 to its specifications, ensure that the operating environment is maintained within the following parameters: Operating Environment ➢ Indoor use only ➢ Temperature ......5 to 40 C (41 to 104 F) ➢...
  • Page 31 LeCroy instrument directly to a person do so at their own risk. Power Requirements The LSA1000 operates from a 115 V (90–132 V) or 220 V (180–250 V) AC (~) power source at 45–66 Hz, and draws 200 W max power.
  • Page 32 None of the current-carrying conductors may exceed 250 V rms with respect to ground potential. The LSA1000 is provided with a three- wire electrical cord containing a three-terminal polarized plug for mains voltage and safety ground connection. The plug's ground terminal is connected directly to the frame of the unit.
  • Page 33 Installation and Safety auxiliary On/Off switch, located on the front panel. After the instrument is switched on, auto-calibration is performed. CAUTION Do not exceed the maximum specified signal input voltage levels (see Appendix A for details). 3–4...
  • Page 34 Installation and Safety 3–1...

  • Page 35: Connecting The Lsa1000 To Its Host

    The LSA1000 has an IP address assigned to it at the factory: it does not support Dynamic Host Configuration Protocol (DHCP) or any other automatic address resolution scheme. This IP address may be changed by the user after the connection has been established.
  • Page 36 Connecting to PC or Network Configuring the PC Before establishing a direct connection between the LSA1000 and the host computer, the PC must first be properly configured. Note: The following A specific TCP/IP address must be assigned — known as "static examples assume that the addressing".
  • Page 37 3. Double-click on the line. A dialog box similar to the one below appears. Select 4. If this has already been selected, then the computer’s static address is set and nothing more needs to be done. Cancel out of the TCP/IP and network dialog boxes and close the control panel.
  • Page 38 Making Physical Connection To make the physical connection between the LSA1000 and the host computer: 1. Connect the LSA1000 to the PC using a cross-over cable (for direct connection). 2. Power the LSA1000 unit on. The green LED power indicator on the front panel will light up.
  • Page 39 But if a timeout occurs, as is shown in box on the next page, the IP address used for the destination (the LSA1000) is incorrect or not within the subnet mask of the PC’s IP address.
  • Page 40 Network Connection Check with your network administrator before connecting the LSA1000 to a network. Incorrect addresses on a network can cause both the network and the LSA1000 to behave strangely! However, a network connection ought to be as simple as plugging the LSA1000 into the network.
  • Page 41 Note: The default Gateway is assigned as "172.25.0.1" unless your network has this Gateway available, you must ensure the computer and the LSA1000 are on the same subnet. Changing IP Address Once communication between the LSA1000 and host PC has...
  • Page 42 Connecting to PC or Network Example of responses for * IDN and CONET? queries. 4–8...
  • Page 43 Connecting to PC or Network 4–1...

  • Page 44: Introducing The Lsa1000 Software

    ActiveX-compatible applications. For example, Microsoft Excel can even be used to control and retrieve data directly from the LSA1000. This tool becomes part of the target application and provides seamless access to the full power of the LSA1000. See page 5–13. ScopeExplorer This PC-based connectivity tool integrates LeCroy instruments with Windows 95 or NT PCs.
  • Page 45 LSA1000 Software Tools NET_CON When complied target system, this program demonstrates the implementation of a BSD socket under Microsoft Developer Studio 5.0. The TCP/IP protocol is accessed using this “socket”, which is platform-independent. For non- Windows systems such as the UNIX-based workstation, the “NET_CON”...

  • Page 46: Installing And Launching Software

    Installing and Launching the Software Included with the LSA1000 software tools on the CD-ROM are the source codes for all the programs. Provided as reference materials for software development, depending on the application they can be directly copied into your program.
  • Page 47 LSA1000 Software Tools Remote LSA Panel. The Timebase + Trigger control panel is displayed here (see following sections). Remote LSA Menu standard menus described here: ➢ File Connection creates a new connection. ➢ File Exit returns operating system. 5–4...
  • Page 48 Option Comm. Spy opens a window that shows the ASCII transfer that takes place between the LSA1000 and the host computer. An example of the Comm. Spy window is shown in the figure below. Data from the Comm. Spy can be cut and pasted into other applications to make script files.

  • Page 49: Operating The Lsa1000 Using

    (normal) continuously updates the screen as long as a valid trigger is present. (single) arms the LSA1000 and acquires one trigger. selects the signal transition direction required to qualify the trigger.
  • Page 50 is a spin button used to adjust pre- or post-trigger delay. is a fly-out menu giving the valid sweep rates. Channel Offset This control panel is accessed by clicking on are toggle buttons that change the display status of the corresponding channel. toggle buttons provide a mechanism for changing the “active”...
  • Page 51 LSA1000 Software Tools Zoom + Math This control panel is accessed by clicking on enables or disables the display status of the corresponding memory. toggle buttons to choose the active memory trace. spin buttons allow the active memory trace to be expanded horizontally.
  • Page 52 Display + Utility This control panel is accessed by clicking on turns the 8 x 10 division display grid on or off. enables or disables a pair of cursors on each active trace. The time and amplitude difference between the cursors on the active trace is displayed at the bottom of the screen.
  • Page 53 Command/Reply This control panel is accessed by clicking on is the window for remote command input to the LSA1000. Refer to the Remote Control Manual. executes all the commands listed in the window. displays the text messages returned by the LSA1000.

  • Page 54: Performance Verification With

    Remote LSA Performance Verification with Remote LSA is the simplest way to run the LSA1000’s basic — without the need for remote control operations commands. Thus we recommend that Remote LSA be used for the initial performance verification of the LSA1000.
  • Page 55 LSA1000 Software Tools Remote LSA display of LSA1000’s External Reference Out Waveform. 5–12...

  • Page 56: Using Activedso

    Visual Basic function CreateObject. Once the object is created, it can be initialized by invoking the connection method. ActiveDSO enables control of the LSA1000 from a variety of PC desktop applications. And the complexities of programming using Ethernet are fully encapsulated in this control. For example, with less...
  • Page 57 PC. PowerPoint 97 is being used. Earlier versions 2. Check that the PC and LSA1000 are properly connection may or may not behave via the Ethernet. in the same manner. 3. Open PowerPoint with a new blank presentation.
  • Page 58 5. From the pop-up window, select LeCroy ActiveDSO object as shown here: 6. Right-click on the object and select “Make Connection”. 5–15...
  • Page 59 LSA1000 Software Tools 7. Select “Network” “TCP/IP connection” as shown here (for “scope” read LSA1000): 8. Enter the LSA1000’s IP address and click “OK”. 5–16...
  • Page 60 9. Right-click on the object again and select the “Refresh Image” menu item. A captured waveform will be displayed similar the one shown here: LSA1000’s captured waveform imported into PowerPoint. Once the ActiveDSO™ object has been properly set within the application, macro script can be created utilizing an object...
  • Page 61 Windows applications. It is a subset of Visual Basic that makes using OLE Automation Servers and ActiveX Controls very simple. The following VBA subroutine demonstrates how easy it is to connect to an LSA1000 and send remote commands to it. _______________________________________________ ________...

  • Page 62: Using Scopeexplorer

    ScopeExplorer Using 1. Start ScopeExplorer. 2. Click on “Scope > Scope Finder”. 3. In the “Scope Selector” window, click “OK”, as below. 4. When the ADD DEVICE window opens, select "Network". (If you don’t see “Network” button, press “ALT + N” simultaneously.) 5.
  • Page 63 LSA1000 Software Tools 5–20...
  • Page 64 Display button. Use the Refresh button to refresh the “screen” dump image. ➢ IP address change: ScopeExplorer can be used to change the IP address of the LSA1000. See Chapter 4 for details. ScopeExplorer is supported for all LeCroy instruments and additional information can found on the LeCroy web site: www.lecroy.com...

  • Page 65: About Net_Con

    Windows environment can be found on the CD and in Appendix B this manual. When the program is run, the LSA1000 will return the ID string “LECROY, LSA1000, LSA1000000000, 01.0.0”. For Unix based workstation, the NET_CON sample program provides the baseline implementation of a stable TCP/IP communication between the LSA1000 and the computer system.
  • Page 66 LSA1000 Software Tools 5–1...
  • Page 67 Appendix A: Specifications Signal Capture Acquisition System Bandwidth (-3 dB): @50 : DC to 1 GHz Number of Channels: 2 Number of Digitizers: 2 S amp li ng Ra t e: 2 c h. in us e : 1 M S /s to 1 G S/s 1 c h.
  • Page 68 Appendix A Timebase System Capture Time Window: Acquisition Memory: 100kpts/ch on 2 active channels; 200kpts/ch on 1 active channel. Larger memory options available Memory @ 1GS/s @ 1MS/s 100K 0.1 ms 100 ms 500K 0.5 ms 500 ms 1 ms 2 ms 4 ms ...
  • Page 69 Specifications Triggering System Modes: Normal, Auto, Single, Stop Sources: CH1, CH2, Ext; Slope: CH1, CH2: Positive, Negative, Window Ext: Positive, Negative Coupling: DC Pre-trigger Recording: 0–100 % of record size adjustable in 1 % increments Post-trigger Delay: 0–1,000 times record size adjustable in 1% increments Internal Trigger Range: ±...
  • Page 70 Appendix A Signal Analysis Waveform Processing Processing functions: Add, Subtract, Multiply, Divide, Negate, Identity, Summation Averaging, and Sine x/x; four functions performable at one time Average: Summed averaging of up to 1000 waveforms in the basic instrument; up to 10 averages possible with optional WP01 Advanced Waveform Math Package Extrema: Roof, Floor or...
  • Page 71 Specifications Interfacing Remote Control: By Ethernet for all controls, internal functions Ethernet Port: 10/100Base-T Ethernet Ethernet Protocol: TCP/IP Versatile Instrument Control Protocol (VICP): Protocol that allows Ethernet medium to emulate much of the behavior of GPIB; Remote command set conforms to the IEEE 488.2 standard...
  • Page 73 Appendix A: Specifications A–1...
  • Page 74 Appendix B: NET_CON Source Code NET_CON.CPP LSA1000 Sample Network Connection Copyright (c) 1998 LeCroy Corporation Written By: Ricardo Palacio April, 1998 * $Header:$ * $Log:$ #include <windows.h> #include <winsock.h> #include <stdio.h> #include <time.h> #include "net_con.h" static int hSocket; static int sTimeout = 3;...
  • Page 75 Appendix B unsigned long argp; if (sConnectedFlag==TRUE) return -1; strcpy(sCurrentAddress, ip_address); tval.tv_sec = sTimeout; tval.tv_usec = 0; if (!sWinsockInitFlag) wVersionRequested = MAKEWORD(1, 1); if (WSAStartup(wVersionRequested, &wsaData) != 0) MessageBox(0, "Unable to initialize the Windows socket environment.", "ERROR", MB_OK); return -1; sWinsockInitFlag = TRUE;...
  • Page 76 NET_CON Source Code argp = 1;//non blocking mode ioctlsocket(hSocket, FIONBIO, &argp); connect(hSocket, (SOCKADDR FAR *) &serverAddr, sockAddrSize); result = select(hSocket, NULL, &wr_set, NULL, &tval); argp = 0;//blocking mode ioctlsocket(hSocket, FIONBIO, &argp); /* connect to server (scope) */ if (result < 1) sprintf(tmpStr, "Unable to make connection to IP:%s", ip_address);...
  • Page 77 Appendix B int result, bytes_more, bytes_xferd; char *idxPtr; if (sConnectedFlag != TRUE) return -1; if (len < CMD_BUF_LEN) strcpy(sCommandBuffer, buf); // set the header info header.bEOI_Flag = DATA_FLAG; header.bEOI_Flag |= (eoi_flag)? EOI_FLAG:0; header.reserved[0] = 1; header.reserved[1] = 0; header.reserved[2] = 0; header.iLength = htonl(len);...
  • Page 78 NET_CON Source Code int TCP_ClearDevice(void) if (sConnectedFlag != TRUE) return -1; TCP_Disconnect(); TCP_Connect(sCurrentAddress); return 0; int TCP_ReadDevice(char *buf, int len, int *recv_count) TCP_HEADER header; char tmpStr[512]; int result, accum, space_left, bytes_more, buf_count; char *idxPtr; fd_set rd_set = {1, {0}}; TIMEVAL tval; if (sConnectedFlag != TRUE) return -1;...
  • Page 79 Appendix B space_left = len; while (1) // block here until data is received of timeout expires result = select(hSocket, &rd_set, NULL, NULL, &tval); if (result < 1) TCP_ClearDevice(); MessageBox(0, sCommandBuffer, "Read timeout", MB_OK); return -1; // get the header info first accum = 0;...
  • Page 80 NET_CON Source Code sprintf(tmpStr, "Read buffer needs to be adjusted, must be minimum of %d bytes", TCP_MINIMUM_PACKET_SIZE); MessageBox(0, tmpStr, "ERROR", MB_OK); return -1; if ((result = recv(hSocket, (char *) idxPtr, (bytes_more>2048)?2048:bytes_more, 0)) < 0) TCP_ClearDevice(); MessageBox(0, "Unable to receive data from the server.", "ERROR", MB_OK); return -1;...
  • Page 81 Appendix B char replyBuf[512]; int read; if (argc < 2) printf("\nEXAMPLE: net_con 172.28.11.22\n"); return 0; if (TCP_Connect(argv[1])) return 0; if (TCP_WriteDevice("*idn?\n", 6, TRUE)) TCP_Disconnect(); return 0; if (TCP_ReadDevice(replyBuf, 512, &read)) TCP_Disconnect(); return 0; if (TCP_Disconnect()) return 0; printf("Scope's reply: %s\n", replyBuf); return 0;...
  • Page 82 NET_CON Source Code #define TCP_MINIMUM_PACKET_SIZE typedef struct unsigned char bEOI_Flag; unsigned char reserved[3]; iLength; } TCP_HEADER; B–9...
  • Page 84 Appendix B: NET_CON Source Code B–1...
  • Page 85 Appendix C: Parameter Measurement Parameters and How They Work In this Appendix, a general explanation of how the instrument’s standard parameters are computed (see below) is followed by a table listing, defining and describing those parameters (page C–1). Determining Top and Proper determination of the top and base reference lines is Base Lines fundamental for ensuring correct parameter calculations.
  • Page 86 Once top and base are estimated, calculation of the rise and fall Fall Times times is easily done (Fig.1). The 90 % and 10 % threshold levels are automatically determined by the LSA1000, using the amplitude (ampl) parameter. Threshold levels for rise or fall time can also be selected using absolute or relative settings (r@level, fall@level).
  • Page 87 To avoid these bias effects, the instrument uses cyclic parameters, including crms and cmean, that restrict the calculation to an integer number of cycles. Determining Differential The LSA1000 enables accurate differential time measurements between two traces — for example, propagation, setup and hold Time Measurements delays (Fig. C–3).
  • Page 88 Appendix C Noisy spikes ignored due to Hysteresis band HYSTERESIS THRESHOLD Band DATA (1) CLK (2)  − c2d (1, 2) c2d+(1, 2) LEFT CURSOR RIGHT CURSOR TRIGGER POINT CLOCK EDGE = Positive Transition DATA EDGE = Negative Transition Figure C–3 Moreover, a hysteresis range may be specified to ignore any spurious transition that does not exceed the boundaries of the hysteresis interval.
  • Page 89 Parameter Measurement Pa r am e t er — D es cr ipti o n Definition Notes a m p l Amplitude: Measures difference between top - base On signals having two upper and lower levels in two-level major levels (such as triangle signals.
  • Page 90 Appendix C Pa r am e t er — D es cr ipti o n Definition Notes c s d e v Cyclic standard deviation: Standard Where: v denotes measured  − mean deviation of data values from mean value sample values, and number over integral number of periods.
  • Page 91 Parameter Measurement Pa r am e t er — D es cr ipti o n Definition Notes Duration of acquisition: For single sweep Time from first acquisition — for waveforms, dur is 0; for sequence waveforms: time from first to last average, segment’s trigger;...
  • Page 92 Appendix C Pa r am e t er — D es cr ipti o n Definition Notes first Indicates value of horizontal axis at left Horizontal axis Indicates location of left cursor. cursor. value at left Cursors are interchangeable: for cursor example, the left cursor may be moved to the right of the right...
  • Page 93 Parameter Measurement Pa r am e t er — D es cr ipti o n Definition Notes median The average of base and top values. Average of base and top (See Fig. C–2) minimum Measures the lowest point in a waveform. Lowest value in Gives similar...
  • Page 94 Appendix C Pa r am e t er — D es cr ipti o n Definition Notes r20–80% Rise 20 % to 80 %: Duration of pulse Average duration On signals having two waveform's rising transition from 20% to of rising 20–80 % major levels (triangle or saw- 80%, averaged for all rising transitions transition...
  • Page 95 Parameter Measurement Pa r am e t er — D es cr ipti o n Definition Notes Root Mean Square of data between the Gives similar result when applied to  cursors — about same as sdev for a time domain waveform or histogram zero-mean waveform.
  • Page 97 Appendix C: Parameter Measurement C–1...
  • Page 98 Example 1 Digitized Data Transfer from LSA1000 to PC: In many cases, the LSA1000 may be used solely as a high speed digitizer, for transferring large amount of digitized data to the host PC as fast as possible. The following is an example program for transferring 2 MB of digitized data from LSA1000 to PC with emphasis on speed of transfer.
  • Page 99 While Example 1 shows the LSA1000 as a “pure” high speed digitizer, the on-board processing capability of the LSA1000 can also be used. In fact, the LSA1000 has the same math functions and processing capability as a high-end LeCroy digital oscilloscope.
  • Page 100 IM_Disconnect(); Example 3 Using Processing Power for FFT: This commands the LSA1000 to perform FFT (Fast Fourier Transfer) on the captured waveform and transfer FFT result to the host PC. Requirement Sample Rate = 1.5GS/s Capture Time = 50us...
  • Page 101 If (strBuf indicates a flag is set) Break; IM_QueryDevice(“TA:WF? DAT1”, Buffer, BufferSize); IM_Disconnect(); Example 4 Using Processing Power for Averaging: This commands the LSA1000 to perform Averaging on the captured waveform and transfer averaging result to the host PC. D–4...
  • Page 102 Program Examples Requirement Sample Rate = 1.5GS/s Capture Time = 50us Number of Points = 75,000 LSA1000 Settings Sample Rate = 2GS/s Time per Div. = 5us Memory Size = 100K Program Code IM_MakeConnection(“IP:172.25.1.2”); // Initialize the unit IM_WriteDevice(“CHDR OFF”);...
  • Page 103 Appendix D IM_QueryDevice(“INR?”, strBuf, sizeof(strBuf)); If (strBuf indicates a flag is set) Break; // loop until math processing completes on trace B Loop IM_QueryDevice(“INR?”, strBuf, sizeof(strBuf)); If (strBuf indicates a flag is set) Break; IM_QueryDevice(“TB:WF? DAT1”, Buffer, BufferSize); IM_Disconnect(); D–6...
  • Page 104 Appendix D: Program Examples D–1...
  • Page 105 These suggestion forms covering the LSA1000 and its manuals are a means by which you can communicate to us what you like, and what you think can be improved. LeCroy welcomes your suggestions on product improvement or ideas for new products. Name: Title:...
  • Page 106 Appendix E LeCroy welcomes your comments on: Signalyst Operator’s Manual Rev A Remote Control Manual Rev A The LSA1000 , and Name: Title: Company: Address: Phone: Fax: Email: How would you like the manuals to be changed? Did you find any errors in the manuals? If so, please record them below, including the name of the manual and page number(s) concerned.
  • Page 107 Appendix E: Suggestion Forms E–1...
  • Page 108 Index...
  • Page 110 Index Cycles, C-5 in parameter measurements, Acquisition Memory, 2-3, 2-4, A-1 Cyclic Mean, C-5 increasing it by combining Cyclic Median, C-5 channels, 2-1 Cyclic Parameters, C-3 Acquisition Modes, A-1 Cyclic Root Mean Square, C-5 Acquisition Status, 2-12 Cyclic Standard Deviation, C-6 Acquisition Summary, 2-8 ActiveDSO, 5-1, 5-3, 5-13 ActiveX, 2-11, 5-13, 5-18...
  • Page 111 Index Find, 5-7 First, C-8 NET_CON, 5-2, 5-21, B-1 Frequency, C-8 Network Frequency Domain, 2-10 connection, 4-6 Frequency Range, A-1 Norm, 5-6 Front Panel, 2-12 NORM, 2-8 Fuses, 3-3 Offset (V), 5-7 Grid, 5-9 Offset Range, A-1 OLE, 5-13 Operating Environment, 3-1, A-5 H Mag, 5-8 Over-, C-9 Histograms, 2-10, A-4, C-1...
  • Page 112 TCP, 4-2, 4-3, 4-4, 5-21 Rear Panel, 2-12 TCP/IP, 2-11, 5-3, 5-16, 5-21 Remote LSA, 2-11, 5-1, 5-3, 5-5, Temperature, 3-1 5-11 LSA1000 Series, A-5 Reply, 5-10 Time at Level, C-11 Reset, 5-8 Time Domain, 2-10 Return, 1-3 Time intervals, C-2...
