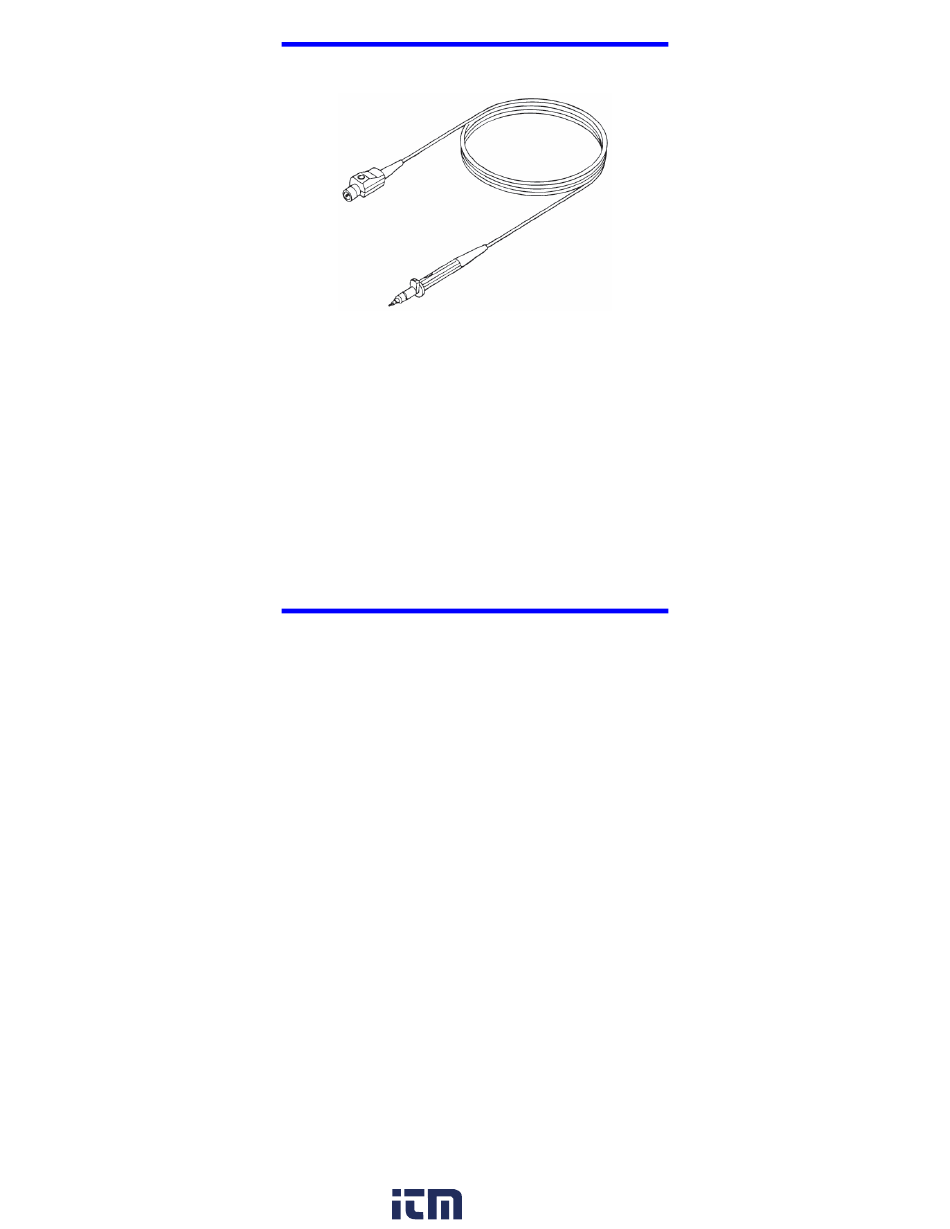

- Page 1 LeCroy PP010 Passive Probe Instruction Manual Revision A – February 2006 1.800.561.8187 information@itm.com www. .com...
- Page 2 Spare parts, replacement parts and repairs are warranted for 90 days. In exercising its warranty, LeCroy, at its option, will either repair or replace any assembly returned within the warranty period to the Customer Service Department of an authorized service center.
- Page 3 Introduction The PP010 is a passive probe to be used with a LeCroy WaveJet oscilloscope having an input impedance of 1 MΩ. It has an attenuation ratio of 10:1. Safety Information This symbol appears on the product: It refers you to additional information contained in this manual. The corresponding information in the manual is similarly denoted.
- Page 4 Do not use the probe if any part is damaged. All maintenance should be referred to qualified service personnel. Avoid physical injury. The probe tip is extremely sharp. Use care when handling to prevent injury, including accidental skin puncture. Use of the probe and/or the test instrument it is connected to in a manner not specified by the manufacturer may impair the protection mechanisms.

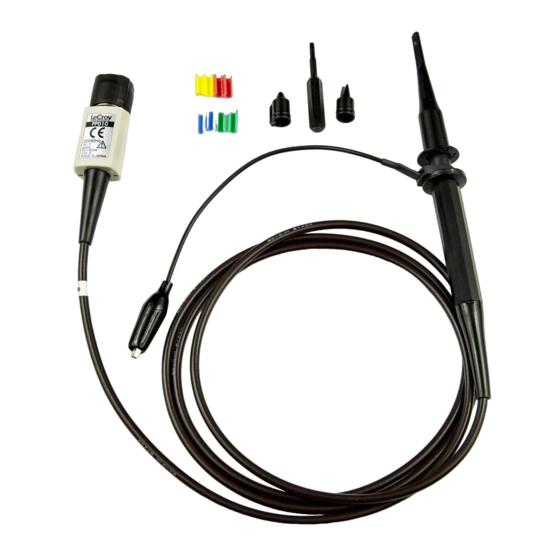

- Page 5 Accessories Standard Accessory Replacement Kit PKIT2-5MM-101 contains the following items: Part Quantity Standard Ground Lead Sprung Hook Color Coding Rings (set) Adjustment Tool Ground Attachment IC Test Tip PP010-OM-E Rev A 1.800.561.8187 information@itm.com www. .com...
- Page 6 Specifications Electrical Characteristics Bandwidth DC to 200 MHz (±3 dB) 10:1 ±3% Attenuation 10 MΩ ±2% // 12.5 pF ±2 pF Input RC Compensation Range 18-35 pF Probe Length 1.5 m Connector Type Environmental Conditions Temperature (operating) 5 to 40 °C (non-operating) -20 to +70 °C Humidity (operating)
- Page 7 Typical Voltage Derating Curve 1000 1000 Frequency [MHz] Typical Input Impedance 10000000 1000000 100000 10000 1000 0.01 1000 Frequency [MHz] PP010-OM-E Rev A 1.800.561.8187 information@itm.com www. .com...
- Page 8 Probe Compensation Proper compensation of the probe is required to assure good amplitude accuracy in the dynamic portions of the waveform being measured. LF compensation matches the probe to differences in oscilloscope input capacitance. The LF compensation should always be checked and adjusted as needed when first connecting a passive probe to the oscilloscope input.
