RDL M-101 User Manual page 9

TIMER MODE
STEP ACTION
1 Press either private mode switch button
Press and release the RED button for less than 3
2
seconds
Press and hold the RED button for greater than 3
3
seconds to store the value
Press and hold the RED button for greater than 3
4
seconds to store the value
Press and release the GREEN button until the correct
5
value is shown
Press and release the RED button for less than 3
6 seconds to move the cursor one place through the
programmable setting of the displayed parameter
Press and hold the RED button for greater than 3
7
seconds to store the value
Press and hold the RED button for greater than 3
8
seconds to store the value
Press and hold the RED button for greater than 3
9
seconds to store the value
Press and hold the RED button for greater than 3
10
seconds to store the value
Press and hold the RED button for greater than 3
11
seconds to store the settings
12
4.2 Factory Default Reset
DISPLAY REMARKS
If Factory Defaults are reset then the following parameters are changed:
Factory
Defaults a Zero Timer Credit
b
Token Minutes
No Yes c Max Time Minutes
d Total Coins
e Total Seconds
f Reverse Energy Detection "RED" when displayed
Visit: www.rdlmeters.com
16
DISPLAY
PROGRAMMING
Date and Time
DD/MM/YY HH:MM
Date and Time
DD/MM/YY HH:MM
Zero Time Credit
No Yes
Token hh:mm
XX:XX
Token hh:mm
£XX:XX
Token hh:mm
£XX:XX
Max Time hh:mm
10:00
5. APPENDIX
Tournament Mode
No Yes
Operational Mode
Meter Timer
Factory Defaults
No Yes
Exiting Programming
FACTORY DEFAULTS
00:00:00
60
600
0
0
"RED" Not Displayed
Description
Part No
Revison
Date Created
4.3 Date and Time
The following date and time parameters are settable: Day, Month, Year, Hours, Minutes.
4.4 Zero Time Credit
Manually reset credit to zero.
4.5 Token Value
The amount of time credited for each coin inserted is settable in the range 0 to 599 minutes.
4.6 Maximum Time
The maximum credit is settable in the range 0 to 1440 minutes at which point the display will change
to Maximum Reached.
4.7 Tournament Mode Override
In this mode the timer dispenses electricity without the consumer needing to enter coins.
4.8 Operational Mode Meter or Timer
The timer mode setting operates at cost per time of electricity or meter mode at cost per kWh unit of
electricity.

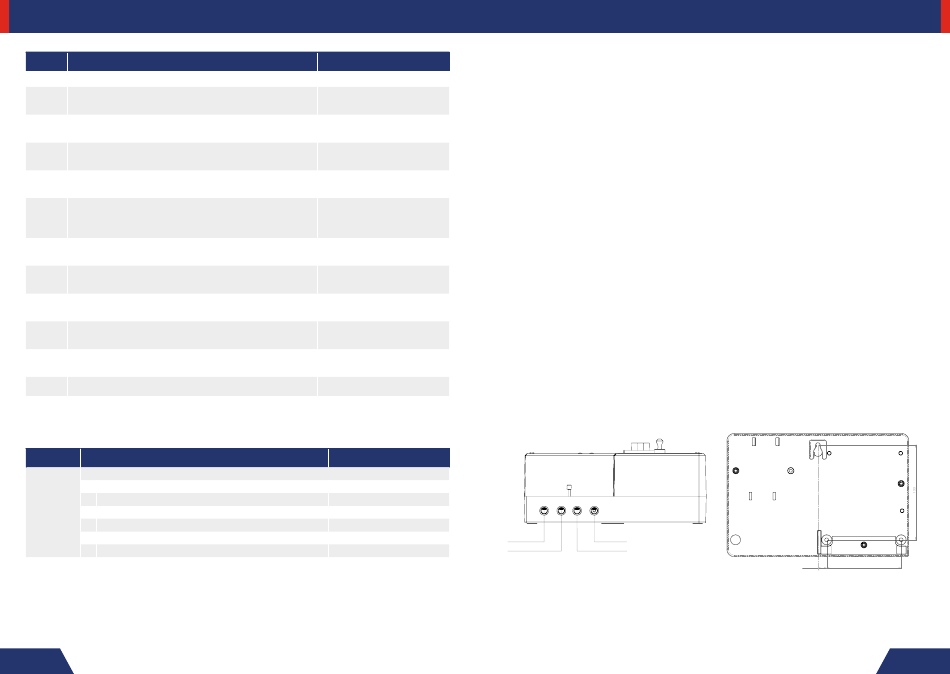

5.1 Wiring Diagram and Mounting Template (shown overleaf)
This timer must be installed by a competent, qualified electrician to the standards that satisfy the
requirements of the current Institute of Electrical Engineers (IEE).
WIRING DIAGRAM
SUPPLY LOAD
LIVE LIVE
SUPPLY LOAD
NEUTRAL NEUTRAL
Wiring DIagram
M101-WD
0
09/06/2016
TIMER MODE
WALL MOUNTING TEMPLATE
TOP
METER
ACCOMMODATES
SCREW SHANK UP
TO 5.2MM
12 104
Call: 01803 697 600
17
