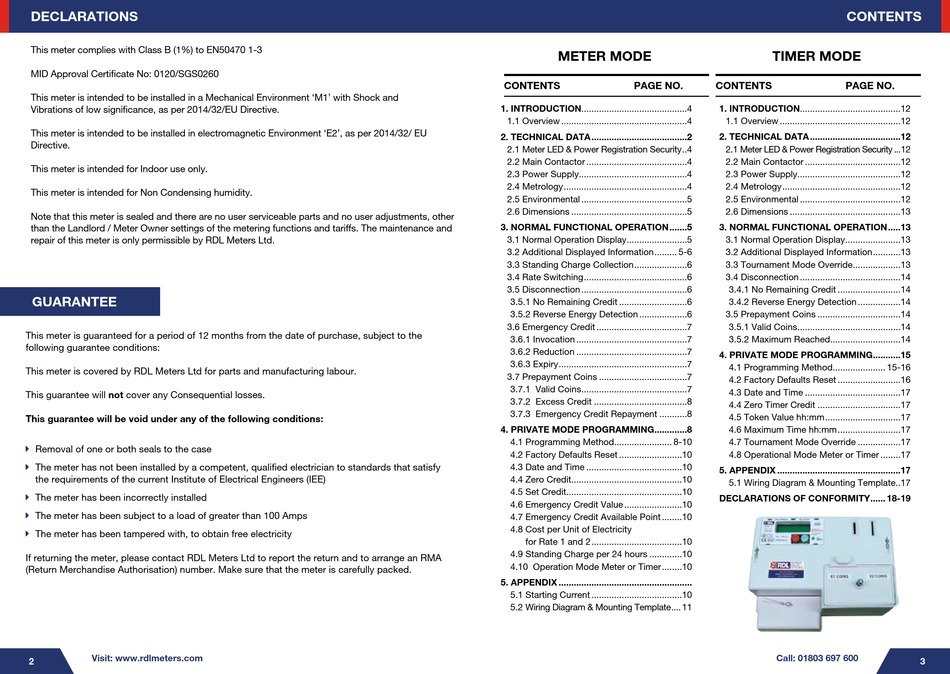

DECLARATIONS
This meter complies with Class B (1%) to EN50470 1-3
MID Approval Certificate No: 0120/SGS0260
This meter is intended to be installed in a Mechanical Environment 'M1' with Shock and
Vibrations of low significance, as per 2014/32/EU Directive.
This meter is intended to be installed in electromagnetic Environment 'E2', as per 2014/32/ EU
Directive.
This meter is intended for Indoor use only.
This meter is intended for Non Condensing humidity.
Note that this meter is sealed and there are no user serviceable parts and no user adjustments, other
than the Landlord / Meter Owner settings of the metering functions and tariffs. The maintenance and
repair of this meter is only permissible by RDL Meters Ltd.
GUARANTEE
This meter is guaranteed for a period of 12 months from the date of purchase, subject to the
following guarantee conditions:
This meter is covered by RDL Meters Ltd for parts and manufacturing labour.
This guarantee will not cover any Consequential losses.
This guarantee will be void under any of the following conditions:
à
Removal of one or both seals to the case
The meter has not been installed by a competent, qualified electrician to standards that satisfy
à
the requirements of the current Institute of Electrical Engineers (IEE)
The meter has been incorrectly installed
à
à
The meter has been subject to a load of greater than 100 Amps
The meter has been tampered with, to obtain free electricity
à
If returning the meter, please contact RDL Meters Ltd to report the return and to arrange an RMA
(Return Merchandise Authorisation) number. Make sure that the meter is carefully packed.
Visit: www.rdlmeters.com
2
METER MODE
CONTENTS
PAGE NO.
1. INTRODUCTION..........................................4
1.1 Overview ..................................................4
2. TECHNICAL DATA ......................................2
2.1 Meter LED & Power Registration Security ..4
2.2 Main Contactor ........................................4
2.3 Power Supply ...........................................4
2.4 Metrology .................................................4
2.5 Environmental ..........................................5
2.6 Dimensions ..............................................5
3. NORMAL FUNCTIONAL OPERATION .......5
3.1 Normal Operation Display ........................5
3.2 Additional Displayed Information ......... 5-6
3.3 Standing Charge Collection .....................6
3.4 Rate Switching .........................................6
3.5 Disconnection ..........................................6
3.5.1 No Remaining Credit ...........................6
3.5.2 Reverse Energy Detection ...................6
3.6 Emergency Credit ....................................7
3.6.1 Invocation ............................................7
3.6.2 Reduction ............................................7
3.6.3 Expiry ...................................................7
3.7 Prepayment Coins ...................................7
3.7.1 Valid Coins ..........................................7
3.7.2 Excess Credit .....................................8
3.7.3 Emergency Credit Repayment ...........8
4. PRIVATE MODE PROGRAMMING .............8
4.1 Programming Method....................... 8-10
4.2 Factory Defaults Reset .........................10
4.3 Date and Time ......................................10
4.4 Zero Credit............................................10
4.5 Set Credit..............................................10
4.6 Emergency Credit Value .......................10
4.7 Emergency Credit Available Point ........10
4.8 Cost per Unit of Electricity
for Rate 1 and 2 ....................................10
4.9 Standing Charge per 24 hours .............10
4.10 Operation Mode Meter or Timer ........10
5. APPENDIX .....................................................
5.1 Starting Current ....................................10
5.2 Wiring Diagram & Mounting Template .... 11
CONTENTS
TIMER MODE
CONTENTS
PAGE NO.
1. INTRODUCTION........................................12
1.1 Overview ................................................12
2. TECHNICAL DATA ....................................12
2.1 Meter LED & Power Registration Security ...12
2.2 Main Contactor ......................................12
2.3 Power Supply .........................................12
2.4 Metrology ...............................................12
2.5 Environmental ........................................12
2.6 Dimensions ............................................13
3. NORMAL FUNCTIONAL OPERATION .....13
3.1 Normal Operation Display ......................13
3.2 Additional Displayed Information ...........13
3.3 Tournament Mode Override ...................13
3.4 Disconnection ........................................14
3.4.1 No Remaining Credit .........................14
3.4.2 Reverse Energy Detection .................14
3.5 Prepayment Coins .................................14
3.5.1 Valid Coins .........................................14
3.5.2 Maximum Reached............................14
4. PRIVATE MODE PROGRAMMING ...........15
4.1 Programming Method..................... 15-16
4.2 Factory Defaults Reset .........................16
4.3 Date and Time ......................................17
4.4 Zero Timer Credit .................................17
4.5 Token Value hh:mm ..............................17
4.6 Maximum Time hh:mm .........................17
4.7 Tournament Mode Override .................17
4.8 Operational Mode Meter or Timer ........17
5. APPENDIX .................................................17
5.1 Wiring Diagram & Mounting Template ..17
DECLARATIONS OF CONFORMITY ...... 18-19
