METER MODE
4.2 Factory Defaults Reset
DISPLAY REMARKS
If Factory Defaults are reset then the following parameters are changed:
Factory
a Current Credit
Defaults
b Emergency Credit Left
No Yes
c Current Debt
d Total Credit
e Total Coin Counts
f
Standing Charge per 24 hours
g Rate 1 unit cost
h Rate 2 unit cost
i Emergency Credit Value
j Emergency Credit availability point
k Reverse Energy Detection "RED" when displayed
4.3 Date and Time
The following date and time parameters are settable: Day, Month, Year, Hours, Minutes.
4.4 Zero Credit
Manually reset Debt and Credit to zero.
4.5 Set Credit
Manually set credit in the range of £0 to £999.99.
4.6 Emergency Credit Value
The emergency credit is settable in the range of £0 to £99.99.
4.7 Emergency Credit Available Point
The emergency credit available point is settable in the range of £0 to £99.99.
4.8 Cost per Unit for Rate 1 and 2
The cost per unit of electricity for each of the 2 rates is settable in the range £0 to £99.99.
4.9 Standing Charge per 24 hours
The standing charge is settable in the range £0 to £99.99 and is factory set to deduct the value
set every 24 hours at midnight.
4.10 Operational Mode Meter Timer
The meter mode setting operates at cost per kWh unit of electricity or timer mode at cost per
time of electricity.
SUPPLY
LIVE
5. APPENDIX
5.1 Starting Current
SUPPLY
The meter starts to register at 80mA.
NEUTRAL

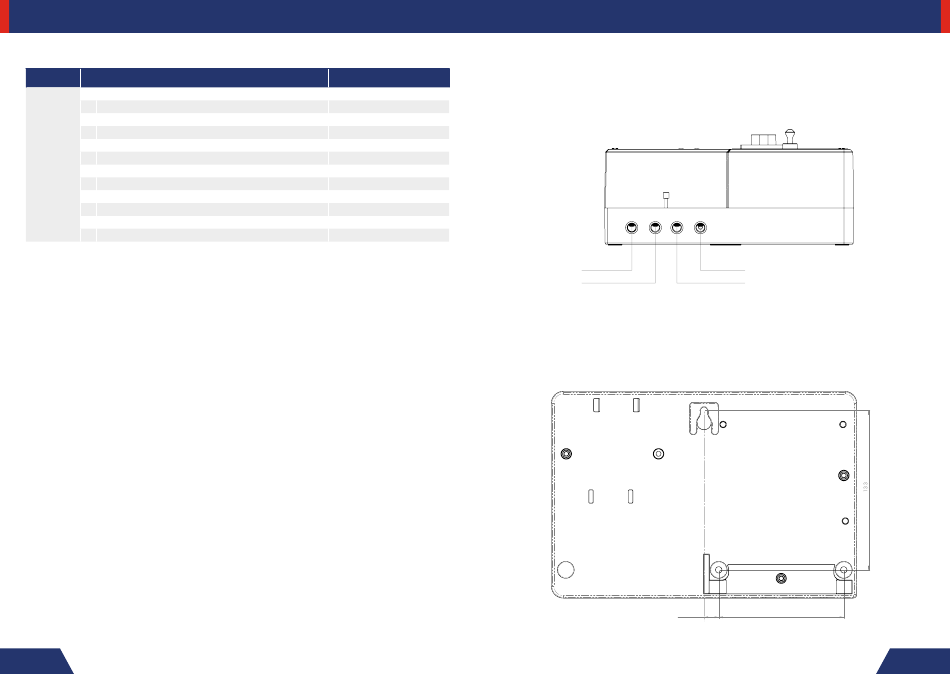

5.2 Wiring Diagram and Mounting Template (shown overleaf)
The meter must be installed by a competent, qualified electrician to the standards that satisfy the
requirements of the current Institute of Electrical Engineers (IEE).
Visit: www.rdlmeters.com
10
FACTORY DEFAULTS
£0.00
£1.00
£0.00
£0.00
0
£0.00
£0.15
£0.15
£1.00
£0.50
"RED" Not Displayed
LOAD
LIVE
LOAD
NEUTRAL
WIRING DIAGRAM AND MOUNTING TEMPLATE

WIRING DIAGRAM

SUPPLY
LIVE
SUPPLY
NEUTRAL

WALL MOUNTING TEMPLATE

Description Wiring DIagram
Part No M101-WD
Revison 0
TOP
Date Created 09/06/2016
12
METER MODE
LOAD
LIVE
LOAD
NEUTRAL
METER
ACCOMMODATES
SCREW SHANK UP
TO 5.2MM
104
Call: 01803 697 600
11
