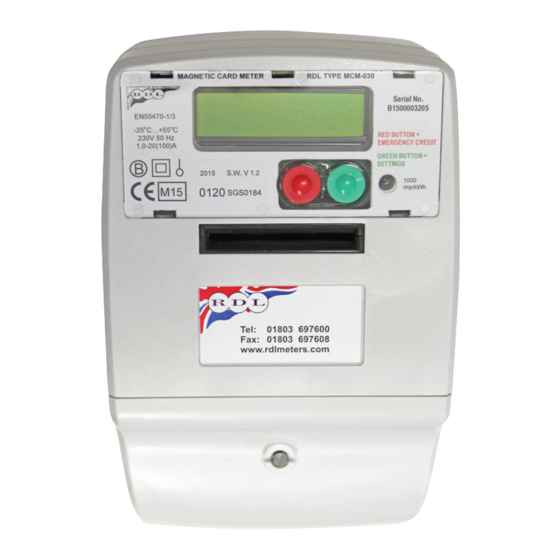

Magnetic card operatied electronic meter & timer
Hide thumbs Also See for MCM-030:
Table of Contents

Advertisement

Quick Links

Download this manual
Issue 1.0
RDL (Meters) Ltd
Unit E2 Westfield Business Park
Long Road Paignton
Devon TQ4 7AU
Tel: 01803 697600 Fax: 01803 697608
www.rdlmeters.com sales@rdlmeters.com

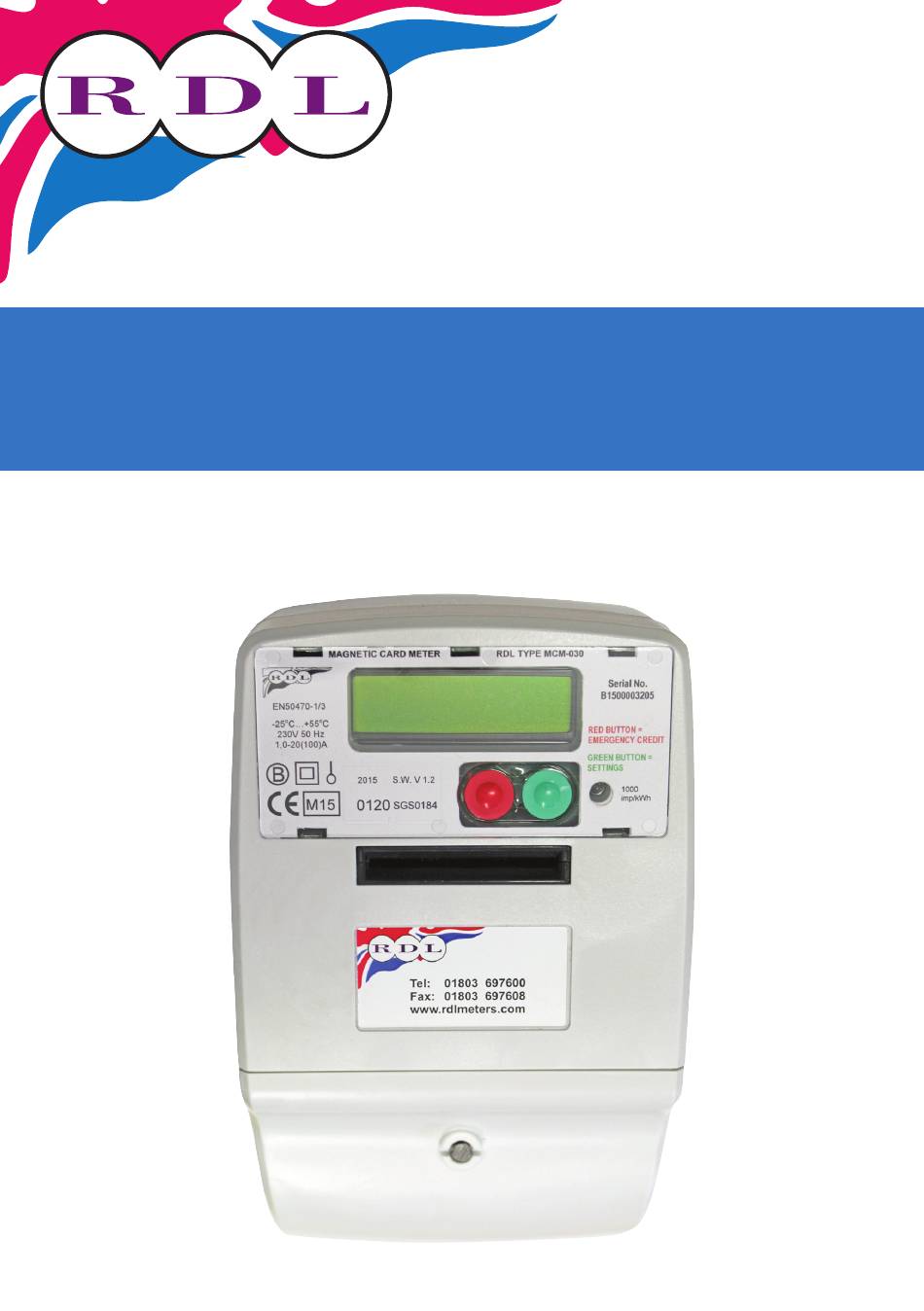

MAGNETIC CARD OPERATED
MAGNETIC CARD OPERATED
ELECTRONIC METER & TIMER
ELECTRONIC METER & TIMER
MODEL TYPE : MCM-030
MODEL TYPE : MCM-030
USER MANUAL FOR SPECIFICATION
AND OPERATING SETTINGS
Issue 1.0
MID APPROVED CARD METER
CERTIFICATE NO: 0120/SGS0184

Advertisement

Table of Contents
loading

Related Manuals for RDL MCM-030

Summary of Contents for RDL MCM-030

  • Page 1 Tel: 01803 697600 Fax: 01803 697608 www.rdlmeters.com sales@rdlmeters.com MAGNETIC CARD OPERATED MAGNETIC CARD OPERATED ELECTRONIC METER & TIMER ELECTRONIC METER & TIMER MODEL TYPE : MCM-030 MODEL TYPE : MCM-030 USER MANUAL FOR SPECIFICATION AND OPERATING SETTINGS Issue 1.0 MID APPROVED CARD METER...
  • Page 2 • The meter has been tampered with, to obtain free electricity. If returning the meter, please contact RDL (Meters) Ltd. to report the return and to arrange an RMA (Return Merchandise Authorisation) number. Make sure that the meter is carefully...

  • Page 3: Table Of Contents

    METER MODE TIMER MODE CONTENTS PAGE NO. CONTENTS PAGE NO. INTRODUCTION INTRODUCTION Overview Overview TECHNICAL DATA TECHNICAL DATA Meter LED & Power Meter LED & Power Registration Security Registration Security Main Contactor Main Contactor Power Supply Power Supply Metrology Metrology Environmental Environmental Dimensions...

  • Page 4: Overview

    Extension Terminal Cover to Protect Supply Cables. TECHNICAL DATA TECHNICAL DATA The MCM-030 is an alternating Current Static Watt Hour Meter, Class B, with The MCM-030 is an alternating Current Static Watt Hour Meter, Class B, with programmable timer function facility. Double Insulated.

  • Page 5: Environmental

    METER MODE (cont.) 2.5 Environmental Temperature Operating Range: -25 to 55 degrees C Storage Range: -25 to 55 degrees C Transportation Range: -25 to 70 degrees C Ingress Protection: IP51 Maximum period of 6 hours at the extremes of its temperature range 2.6 Dimensions Height: 222.00 mm...

  • Page 6: Standing Charge Collection

    METER MODE (cont.) STEP DISPLAY REMARKS **DISPLAY*TEST** Test all character positions on display. **DISPLAY*TEST** The consumer has £XXX.XX credit remaining. Current Credit £XXX.XX The consumer has £XXX.XX emergency credit left. Emer Credit Left £XXX.XX The consumer has used up all credit and has Current Debt £XXX.XX accumulated a debt of £XXX.XX.

  • Page 7: Emergency Credit

    METER MODE (cont.) 3.6 Emergency Credit If the prepaid credit is below a given limit or the meter has gone into debt, an “Emergency Credit” facility may be invoked by pressing the RED button marked emergency credit. The meter operation whilst in emergency credit is explained in the following subsections.

  • Page 8: Card Errors

    METER MODE (cont.) Example 3: DISPLAY ACTION Debt £2.99 Insert £5 value Card. £5.00 Credited Rate - Credit £2.01 3.7.2 Card Errors The message “Card Error” may be displayed if the card was inserted too quickly, too slowly or the card was invalid, the message “Excess Credit” is displayed if a token card is inserted that would cause the pre-paid credit to become greater then £999.99.
  • Page 9 METER MODE (cont.) Each press of the GREEN button will increment the value above the cursor. Each press of the RED button for less than 3 seconds will move the cursor one place through the programmable setting of the displayed parameter. To store the new value press the RED button for greater than 3 seconds, then on releasing the RED button the next parameter for programming will be displayed.

  • Page 10: Factory Defaults Reset

    METER MODE (cont.) 4.2 Factory Defaults Reset DISPLAY REMARKS FACTORY DEFAULTS Factory Defaults If Factory Defaults are reset then the following No Yes parameters are changed: a Current Credit £0.00 b Emergency Credit Left £1.00 c Current Debt £0.00 d Total Credit £0.00 e Total Cards f Standing Charge per 24 hours...
  • Page 11 METER MODE METER MODE (cont.) (CONT.) Wiring Diagram and Mounting Template Wiring Diagram and Mounting Template WIRING DIAGRAM LOAD SUPPLY PHASE LIVE PHASE LIVE MAIN LOAD NEUTRAL LOAD SUPPLY NEUTRAL LINE NEUTRAL NEUTRAL WALL MOUNTING TEMPLATE METER ACCOMMODATES SCREW SHANK UP TO 5.2MM...

  • Page 12: Introduction

    Internal Real Time Clock with programmable switching. Reverse Energy Detection. TECHNICAL DATA The MCM-030 is an alternating Current Static Watt Hour Meter, Class B, with programmable timer function facility. 2.1 Meter LED & Power Registration Security The red LED mounted on the front panel will pulse at a rate of 1000 pulses per kWh.

  • Page 13: Dimensions

    Depth: 80.00 mm Weight: 1.0 kg NORMAL FUNCTIONAL OPERATION IN TIMER MODE 3.1 Normal Operation Display During normal operation the display on the MCM-030 in TIMER MODE will be one of those shown below. DISPLAY CONTACTOR REMARKS Timer Countdown Open...

  • Page 14: Disconnection

    TIMER MODE (cont.) 3.4 Disconnection 3.4.1 No Remaining Credit When the prepaid credit expires the timer main contactor will be open, thus disconnecting the power. To restore power and restart the timed cycle, token cards must be inserted. 3.4.2 Reverse Energy Detection If reverse power is detected above a pre-determined level the display will indicate “RED”...

  • Page 15: Command Card Programming

    TIMER MODE (cont.) COMMAND CARD PROGRAMMING 4.1 Programming Method After the insertion of a valid COMMAND CARD the following 7 parameters can be sequentially viewed/modified using the RED and GREEN buttons of the timer. STEP PROGRAMMING SETTINGS Current Date and Time DD/MM/YYYY - HH:MM Manually Zero Timer - No or Yes Zero Timer No Yes...

  • Page 16: Factory Defaults Reset

    TIMER MODE (cont.) STEP ACTION DISPLAY Please Remove Card Insert a valued COMMAND Card. PROGRAMMING Remove COMMAND Card. Date and Time Press and release the RED button for less than 3 DD/MM/YY HH:MM seconds. Date and Time Press and release the RED button for greater than 3 DD/MM/YY HH:MM seconds to store the value.

  • Page 17: Date And Time

    TIMER MODE (cont.) TIMER MODE TIMER MODE (CONT.) (CONT.) 4.3 Date and Time 4.3 Date and Time 4.3 Date and Time The following date and time parameters are settable: Day, Month, Year, Hours, Minutes. The following date and time parameters are settable: The following date and time parameters are settable: 4.4 Zero Time Credit Day, Month, Year, Hours, Minutes.
  • Page 18 NOTES...
  • Page 19 Declares that the new Measuring Instrument described hereafter as MCM-030, Magnetic Card Meter is in conformity with the provisions of: Council Directive declares that the new Measuring Instrument described hereafter as MCM-030, Magnetic 2014/32/EU and with the national standard transposing harmonized standard Card Meter is in conformity with the provisions of: Council Directive 2004/22/EC and with Numbers: EN 50470-1:2006 &...
