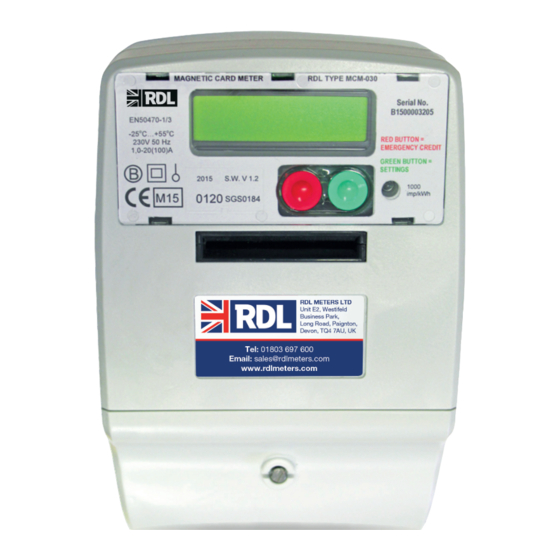

- Page 1 ISSUE 2.0 COIN AND CARD METER/TIMER MANUFACTURERS ESTABLISHED 1976 MAGNETIC CARD OPERATED ELECTRONIC METER & TIMER MODEL TYPE: MCM-030 USER MANUAL FOR SPECIFICATION AND OPERATING SETTINGS TEL: 01803 697 600 WWW.RDLMETERS.COM SALES@RDLMETERS.COM MID APPROVED CARD METER | CERTIFICATE NO: 0120/SGS0184...
- Page 2 The meter has been tampered with, to obtain free electricity à If returning the meter, please contact RDL Meters Ltd to report the return and to arrange an RMA (Return Merchandise Authorisation) number. Make sure that the meter is carefully packed.
-
Page 3: Table Of Contents
CONTENTS METER MODE TIMER MODE CONTENTS PAGE NO. CONTENTS PAGE NO. 1. INTRODUCTION..........4 1. INTRODUCTION........12 1.1 Overview ..........4 1.1 Overview ..........12 2. TECHNICAL DATA ........4 2. TECHNICAL DATA ........12 2.1 Meter LED & Power Registration Security ...4 2.1 Meter LED & Power Registration Security ...12 2.2 Main Contactor ........4 2.2 Main Contactor ........12 2.3 Power Supply ...........4... -
Page 4: Meter Mode
METER MODE 1. INTRODUCTION 1.1 Overview This manual covers the specification and operation for the MCM-030 single phase prepayment magnetic card meter and timer for operating in METER MODE. The main features of the product are: All solid state with 2 x 16 character LCD à... -
Page 5: Environmental
METER MODE 2.5 Environmental Temperature Operating Range: ........-25 to 55°C Storage Range: ...............-25 to 55°C Transportation Range: .............-25 to 70°C Ingress Protection: ............IP51 Maximum period of 6 hours at the extremes of its temperature range. 2.6 Dimensions Height: ................222.00mm Width: ................135.00mm Depth: ................80.00mm Weight: ................1.0kg 3 NORMAL FUNCTIONAL OPERATION IN METER MODE... -
Page 6: Standing Charge Collection
METER MODE STEP DISPLAY REMARKS **DISPLAY*TEST** Test all character positions on display **DISPLAY*TEST** Current Credit £XXX.XX The consumer has £XXX.XX credit remaining Emer Credit Left £XXX.XX The consumer has £XXX.XX emergency credit left The consumer has used up all credit and has Current Debt £XXX.XX accumulated a debt of £XXX.XX Time HH:MM... -
Page 7: Emergency Credit
METER MODE 3.6 Emergency Credit If the prepaid credit is below a given limit or the meter has gone into debt, an ‘Emergency Credit’ facility may be invoked by pressing the RED button marked emergency credit. The meter operation whilst in emergency credit is explained in the following subsections. 3.6.1 Invocation Emergency credit is a pre-set reserve that can be selected by pressing the RED ‘Emergency Credit’... -
Page 8: Card Errors
METER MODE Example 3: DISPLAY ACTION Debt £2.99 Insert £5 value Card £5.00 Credited Rate - Debt £2.01 3.7.2 Card Errors The message ’Card Error’ may be displayed if the card was inserted too quickly, too slowly or the card was invalid, the message ‘Excess Credit’ is displayed if a token card is inserted that would cause the pre-paid credit to become greater then £999.99. - Page 9 METER MODE Each press of the GREEN button will increment the value above the cursor. Each press of the RED button for less than 3 seconds will move the cursor one place through the programmable setting of the displayed parameter. To store the new value press the RED button for greater than 3 seconds, then on releasing the RED button the next parameter for programming will be displayed.
-
Page 10: Factory Defaults Reset
METER MODE 4.2 Factory Defaults Reset DISPLAY REMARKS FACTORY DEFAULTS If Factory Defaults are reset then the following parameters are changed: Factory a Current Credit Defaults £0.00 b Emergency Credit Left £1.00 No Yes c Current Debt £0.00 d Total Credit £0.00 e Total Cards Standing Charge per 24 hours... -
Page 11: Wiring Diagram & Mounting Template
LIVE SUPPLY LOAD NEUTRAL NEUTRAL WIRING DIAGRAM WALL MOUNTING TEMPLATE Alphatech RDL (Meters) Ltd CONFIDENTIAL DRAWN BY: This confidential drawing and Unit E2, Westfield Business Park copyright therein is the property of Design & Manufacture Long Road, Paignton, TQ4 7AU R.D.L Ltd, and is neither... -
Page 12: Timer Mode
TIMER MODE 1. INTRODUCTION 1.1 Overview This document covers the specification and operation of the MCM-030 single phase prepayment magnetic card operated electricity meter and timer for operating in TIMER MODE. The main features of the product are: All solid state with 2 x 16 character LCD à... -
Page 13: Dimensions
TIMER MODE 2.6 Dimensions Height: ................222.00 mm Width: ................135.00 mm Depth: ................80.00 mm Weight: ................1.0 kg 3. NORMAL FUNCTIONAL OPERATION IN TIMER MODE 3.1 Normal Operation Display During normal operation the display on the MCM-030 in TIMER MODE will be one of those shown below. -
Page 14: Disconnection
TIMER MODE 3.4 Disconnection 3.4.1 No Remaining Credit When the prepaid credit expires the timer main contactor will be open, thus disconnecting the power. To restore power and restart the timed cycle, token cards must be inserted. 3.4.2 Reverse Energy Detection If reverse power is detected above a pre-determined level the display will indicate ‘RED’... -
Page 15: Command Card Programming
TIMER MODE 4. COMMAND CARD PROGRAMMING 4.1 Programming Method After the insertion of a valid COMMAND CARD the following 7 parameters can be sequentially viewed/modified using the RED and GREEN buttons of the timer. STEP PROGRAMMING SETTINGS DD/MM/YYYY - HH:MM Current Date and Time Zero Timer No Yes Manually Zero Timer - No or Yes... -
Page 16: Factory Defaults Reset
TIMER MODE STEP ACTION DISPLAY Insert a valued COMMAND Card Please Remove Card Remove COMMAND Card PROGRAMMING Press and release the RED button for less Date and Time than 3 seconds DD/MM/YY HH:MM Press and release the RED button for greater Date and Time than 3 seconds to store the value DD/MM/YY... -
Page 17: Date And Time
TIMER MODE 4.3 Date and Time The following date and time parameters are settable: Day, Month, Year, Hours, Minutes. 4.4 Zero Time Credit Manually reset credit to zero. 4.5 Token Value The amount of time credited for each token card inserted is settable in the range 0 to 599 minutes. 4.6 Maximum Time The maximum credit is settable in the range 0 to 1440 minutes at which point the display will change to Maximum Reached. -
Page 18: Declarations Of Conformity
Paignton TQ4-7AU United Kingdom This declaration of Conformity is issued under the sole responsibility of RDL Meters Ltd. The fulfilment of the essential requirements set out in Annex I and in the relevant instrument specific Annexes has been demonstrated. RDL Meters Ltd declares that the new Measuring Instrument described hereafter as MCM-030 Magnetic Card Meter is in conformity with the provisions of EU Measurement Instrument Directive 2014/32/EU. - Page 19 TQ4-7AU United Kingdom This declaration of Conformity is issued under the sole responsibility of RDL Meters Ltd. RDL Meters Ltd declares that the new Measuring Instrument described hereafter as MCM-030 Magnetic Card Meter is in conformity with the provisions of UK Measuring Instruments Regulations 2016.
- Page 20 ESTABLISHED 1976 RDL METERS LTD. TEL: 01803 697 600 UNIT E2 WESTFIELD BUSINESS PARK LONG ROAD PAIGNTON WWW.RDLMETERS.COM DEVON SALES@RDLMETERS.COM TQ4 7AU...
