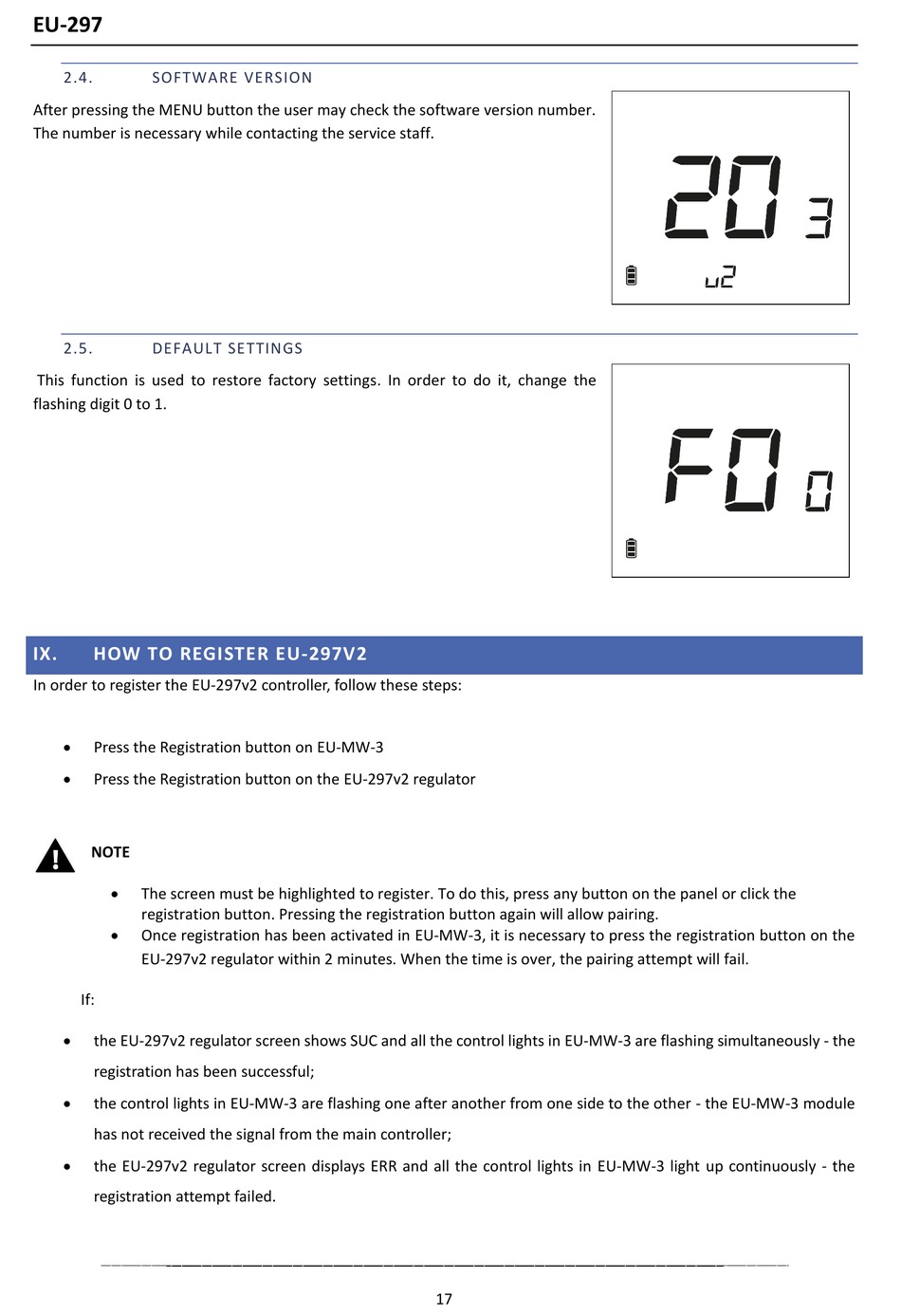

Software Version; Default Settings; How To Register Eu-297V2 - Tech Controllers EU-297 v2 User Manual

EU-297
2.4.

SOFTWARE VERSION

After pressing the MENU button the user may check the software version number.
The number is necessary while contacting the service staff.
2.5.

DEFAULT SETTINGS

This function is used to restore factory settings. In order to do it, change the
flashing digit 0 to 1.
IX.

HOW TO REGISTER EU-297V2

In order to register the EU-297v2 controller, follow these steps:

Press the Registration button on EU-MW-3

Press the Registration button on the EU-297v2 regulator
NOTE

The screen must be highlighted to register. To do this, press any button on the panel or click the
registration button. Pressing the registration button again will allow pairing.

Once registration has been activated in EU-MW-3, it is necessary to press the registration button on the
EU-297v2 regulator within 2 minutes. When the time is over, the pairing attempt will fail.
If:

the EU-297v2 regulator screen shows SUC and all the control lights in EU-MW-3 are flashing simultaneously - the
registration has been successful;

the control lights in EU-MW-3 are flashing one after another from one side to the other - the EU-MW-3 module
has not received the signal from the main controller;

the EU-297v2 regulator screen displays ERR and all the control lights in EU-MW-3 light up continuously - the
registration attempt failed.
17
