EU-293 User manual
1
12
11
10

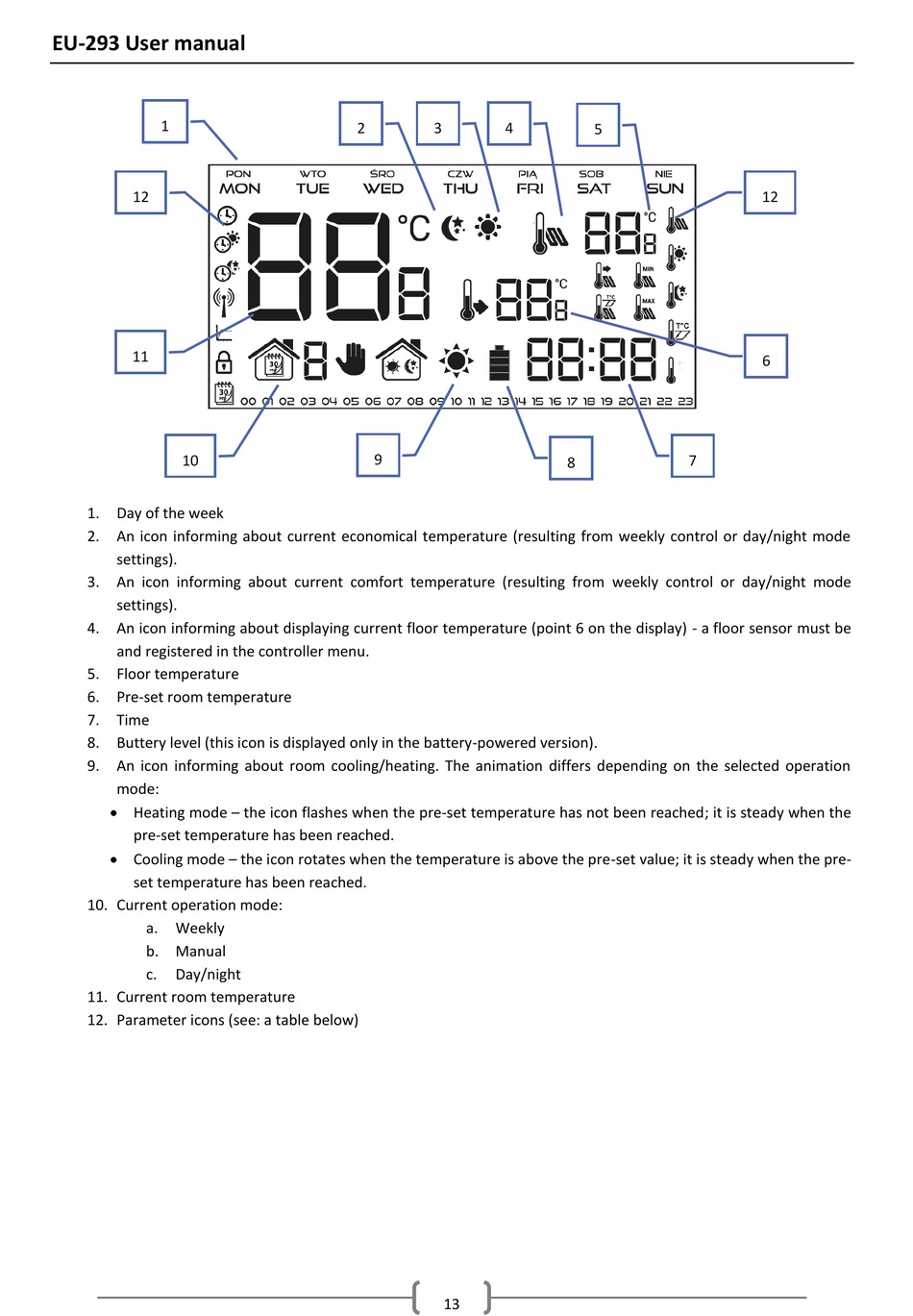

1. Day of the week
2. An icon informing about current economical temperature (resulting from weekly control or day/night mode
settings).
3. An icon informing about current comfort temperature (resulting from weekly control or day/night mode
settings).
4. An icon informing about displaying current floor temperature (point 6 on the display) - a floor sensor must be
and registered in the controller menu.
5. Floor temperature
6. Pre-set room temperature
7. Time
8. Buttery level (this icon is displayed only in the battery-powered version).
9. An icon informing about room cooling/heating. The animation differs depending on the selected operation
mode:
 Heating mode – the icon flashes when the pre-set temperature has not been reached; it is steady when the
pre-set temperature has been reached.
 Cooling mode – the icon rotates when the temperature is above the pre-set value; it is steady when the pre-
set temperature has been reached.
10. Current operation mode:
a. Weekly
b. Manual
c. Day/night
11. Current room temperature
12. Parameter icons (see: a table below)
